Volkswagen Unit Pump Injector Service Kit – Complete Overhaul Set For 1.9/2.5 TDI

Volkswagen's Pumpe‑Düse (unit pump injector) system, fitted to millions of 1.9 TDI (PD) and 2.5 TDI engines, integrates the fuel pump and injector into a single component actuated by the camshaft. Servicing these units requires not just mechanical aptitude but also specialised tools that account for their unique geometry-specifically, the three‑point hold‑down clamp, the high‑pressure connection, and the delicate needle lift adjustment. Generic pullers and wrenches often damage the injector body or fail to release the stubborn carbon‑seized unit, leading to costly replacements. This Volkswagen Unit Pump Injector Service Kit consolidates every essential tool for a complete overhaul, from removal and seal replacement to plunger stroke measurement and final installation, reducing the risk of damage and ensuring each injector is restored to factory specifications.

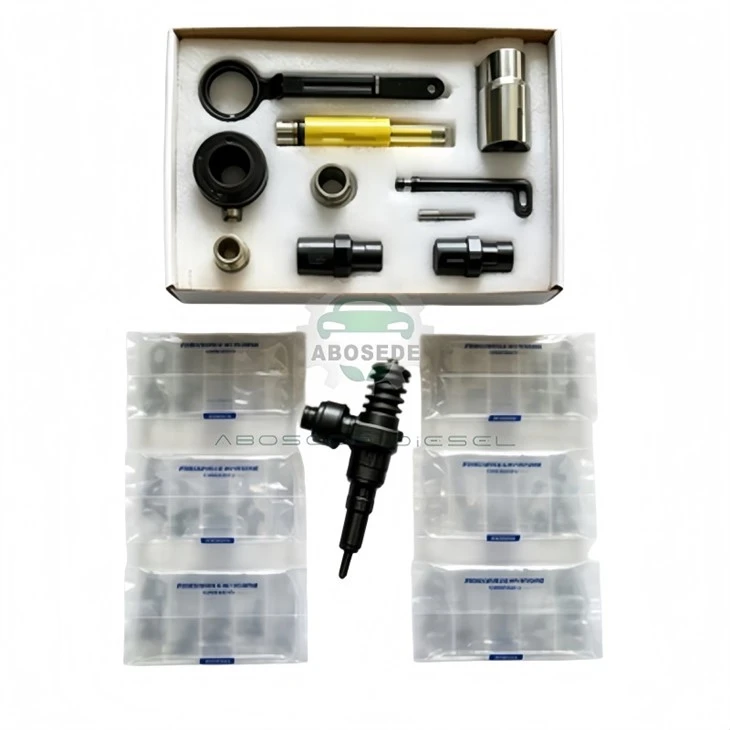

The kit is organised into four functional groups, corresponding to the typical service workflow:

Group 1 – Removal and Extraction – Includes a two‑jaw puller with a self‑centring thrust bolt, designed to engage the injector's recessed extraction slots without marring the aluminium cylinder head. The puller's jaws are angled at 15° to match the injector body, and the thrust bolt has a hardened tip (60 HRC) that bears against the camshaft bridge. A slide hammer attachment is also provided for freeing heavily seized units.

Group 2 – Seal Replacement and Cleaning – Contains a seal pick set with bent and straight tips, a bore brush (brass bristles) for cleaning the injector bore, and a copper washer installation mandrel that ensures the new sealing washer is seated squarely. A tube of high‑temperature anti‑seize compound is included for the hold‑down threads.

Group 3 – Plunger Stroke Measurement and Adjustment – Features a dial indicator fixture that mounts onto the injector body, measuring the plunger lift with 0.01 mm resolution. A set of 15 adjustment shims (0.05–1.00 mm, in 0.05 mm increments) allows the technician to set the correct stroke, which is critical for injection timing. A shim selection gauge verifies the chosen thickness before installation.

Group 4 – Torque and Fastening – Includes a specialised 12‑point socket for the injector hold‑down bolt (M8 spline), a thin‑wall 27 mm socket for the high‑pressure line nut, and a 1/4" drive torque wrench adapter pre‑set to 15 N·m for the hold‑down bolt-the recommended torque to avoid stripping the aluminium thread.

All tools are stored in a custom‑moulded polypropylene case with foam inserts, each position clearly labelled with the tool's function.

The extraction puller is manufactured from 4140 alloy steel, hardened to 50 HRC, with a maximum pulling force of 3 kN – sufficient for even the most stubborn injectors. The jaws are induction‑hardened to 58 HRC at the gripping tips, preventing deformation when engaging the injector's slots. The dial indicator fixture uses a hardened steel probe (440C, 58 HRC) and a spring‑loaded pre‑load (2 N) to ensure consistent contact with the plunger. The fixture's clamping ring fits the injector's 22 mm external diameter, with a clamping screw that prevents movement during measurement. The adjustment shims are stamped from spring steel, deburred and laser‑etched, and are interchangeable with genuine Volkswagen shims (part nos. 038 130 309A to 038 130 309R).

This kit is compatible with the following Volkswagen/Audi/Škoda/Seat engines that use the Bosch‑developed unit pump injector system:

1.9 TDI PD (engine codes: ATD, AXR, BKC, BLS, BSW, BJB, BXE, etc.) – found in Golf, Bora, Jetta, Passat, Touran, Octavia, and León models from 2000–2010.

2.5 TDI (engine codes: BAC, BAU, BBF, BBS, BFC, BPE, etc.) – used in the Volkswagen Transporter T5, Crafter, and Audi A4/A6 (early 2000s).

2.0 TDI PD (engine codes: BKP, BRT, BMA, etc.) – some early 2.0 TDI engines also use the same unit pump design, though later models switched to common rail; the tools are fully compatible.

The kit covers injector part numbers 038 130 073A, 038 130 073B, 038 130 073AX, 045 130 073A, and their equivalents. A quick‑reference card in the case lists the correct plunger stroke values for each engine code (typically 0.85–0.95 mm for 1.9 TDI, and 1.00–1.10 mm for 2.5 TDI).

Remove the injector – Disconnect the fuel return lines and high‑pressure pipe. Attach the puller to the injector, centre the thrust bolt on the camshaft bridge, and tighten the puller nut until the injector releases. If seized, use the slide hammer attachment with a controlled impact.

Clean the bore – Use the bore brush and seal pick to remove carbon and old seal residue from the cylinder head bore. Inspect the bore for damage; if worn, use the supplied lapping tool (optional accessory) to restore the surface.

Replace seals – Fit the new copper sealing washer onto the injector using the mandrel, ensuring it is flush. Lubricate the O‑rings with a thin film of diesel.

Measure plunger stroke – Mount the dial indicator fixture onto the injector. Zero the indicator with the plunger at rest, then manually depress the plunger (using the camshaft rotation) and record the stroke. Compare with the engine code specification.

Adjust if necessary – If the stroke is outside tolerance, remove the plunger stop plug and replace the shim with the calculated thickness. Re‑measure to confirm.

Install the injector – Insert the injector into the bore, tighten the hold‑down bolt to 15 N·m using the torque adapter, then connect the high‑pressure line and torque to 25 N·m (use a separate torque wrench). Reconnect electrical and return lines.

Prime and test – Bleed the fuel system and start the engine. Check for leaks and smooth operation.

Q1: Does this kit include the tools needed to remove the injector hold‑down bolt if it's stripped?
The kit includes a spline socket for the standard M8 bolt. For stripped bolts, we offer an optional bolt extractor set (sold separately). The puller is not designed for bolt removal, only for extracting the injector body after the bolt is removed.

Q2: Can I use the dial indicator fixture to measure stroke without removing the injector from the engine?
No – the fixture requires the injector to be removed and mounted on a bench for stable measurement. Attempting to measure in‑situ would yield inaccurate readings due to engine movement and limited access.

Q3: What is the difference between the 1.9 TDI and 2.5 TDI adjustment shims?
The shims are physically identical (same diameter and thickness range), but the target stroke values differ: 0.85–0.95 mm for 1.9, and 1.00–1.10 mm for 2.5. The kit includes the same shim set; you simply select based on the measured stroke and the specified target.

Q4: Are the tools suitable for common rail injectors on later VW engines (e.g., 2.0 CR)?
No – this kit is exclusively for the unit pump injector (PD) system. Common rail injectors have different geometries and require separate tools. We offer a separate common rail service kit – contact us for details.

Q5: How often should I replace the copper sealing washer and O‑rings?
Always replace the copper washer and O‑rings when you remove an injector. The kit includes 10 washers and 10 O‑ring sets (sufficient for a full engine). Do not reuse these seals, as they are deformed during compression.

Q6: The puller jaws seem too tight – can I adjust the opening?
Yes, the jaw opening is adjustable via a threaded spreader. Loosen the locking screw, turn the spreader to increase the opening, and then re‑tighten. The jaws should just fit over the injector's extraction slots without binding. Over‑tightening can damage the slots.
