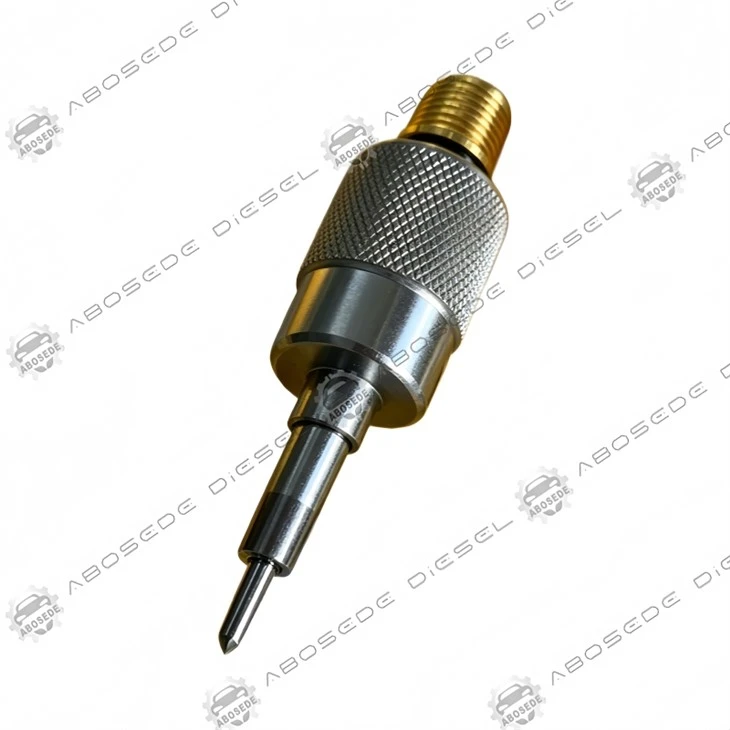

Cummins ISG Series Armature Stroke Gauge Stand – Fixed‑Reference Fixture For Solenoid Travel Verification in Unit Injectors

The Cummins ISG injector uses a solenoid actuator to lift the armature, which in turn opens the poppet valve. The armature stroke-the distance the armature travels from its rest position to the solenoid stop-determines the poppet valve opening area. A stroke that is too short reduces fuel flow, leading to a power loss; a stroke that is too long causes the armature to impact the stop with excessive force, accelerating wear. The factory specification for the ISG armature stroke is 0.45 mm ± 0.03 mm-a tight tolerance of just 6.7% of the nominal value. This gauge stand is a fixed‑reference fixture that mounts directly onto the injector body, using the solenoid housing's top face as the datum. A lever‑type dial indicator (Mitutoyo 513‑series, 0.002 mm resolution) is positioned at a precise angle to measure the armature's travel when the solenoid is energized. The stand's integrated stroke stop simulates the solenoid's magnetic pull, allowing you to measure the stroke without powering the injector, and its zero‑set reference pin ensures that every measurement starts from the same armature rest position-eliminating the operator‑induced errors common with handheld gauges.

---

The gauge stand consists of a base clamp that grips the injector's solenoid housing (outer diameter 28.0 mm) using a split‑collet design, and a vertical post that holds the gauge holder. The clamp is tightened with a thumb screw, applying a uniform radial force that does not distort the housing.

Clamp range: 26.0–30.0 mm, accommodating ISG solenoids and also fitting ISLe and ISL injectors (with a spacer ring).

Vertical post: A 12.0 mm diameter hardened steel rod with a fine‑adjustment collar (0.01 mm per division) that sets the gauge's height precisely.

Gauge holder: Accepts both 8 mm stem (Mitutoyo standard) and 3/8" stem gauges; the holder's jaw has a nylon pad to prevent scratching the gauge stem.

The stand includes a mechanical stroke stop-a threaded pin with a flat tip that contacts the armature's upper face. By turning the stop down until it touches the armature, then retracting it by a measured amount (using the stand's built‑in micrometer head), you can set the armature to its "energized" position. The gauge then measures the difference between this position and the rest position, giving the total stroke.

Micrometer range: 0–10 mm, with a resolution of 0.005 mm.

Stop tip: Tungsten carbide, hardened to HRC 70, to prevent wear over repeated use.

Repeatability: The stop mechanism delivers a repeatability of ±0.005 mm across 10 consecutive measurements.

The measurement process is designed for speed and accuracy:

Zero‑set: With the injector resting on the stand's base, the gauge is zeroed against a reference pin (included) that contacts the armature's rest position. This pin is ground to a known height (10.000 mm ± 0.001 mm) and serves as the master reference.

Measurement: The stroke stop is lowered until it contacts the armature, then the micrometer is adjusted until the gauge reads the factory stroke value (0.45 mm). The difference between the micrometer reading and the zero‑set reading is the actual armature stroke.

Validation: The entire procedure takes 2 minutes per injector; the measurement is recorded on the included log sheet.

The stand's base clamp is specifically designed for the ISG solenoid housing (28.0 mm outer diameter), which is used across the ISG11 and ISG12 engine platforms. It is also compatible with:

ISLe/ISL9 (same solenoid housing, with a spacer ring included).

ISX15 (different housing diameter-30.0 mm-requires a separate collet, available as an optional accessory).

QSB/QSL (marine and industrial versions of the same injector).

The kit includes spacer rings for the ISLe/ISL (2.0 mm thick) and a thread adaptor for QSB injectors that have a slightly different top thread.

Q1: Can I use this stand to measure the armature stroke on an injector that is still installed in the engine?
A: No-the stand requires access to the injector's top face and solenoid housing, which are not accessible with the injector installed. The injector must be removed and placed on the bench. However, the stand is designed for bench use only, and the measurement is quick enough (2 minutes per injector) to be practical during a rebuild service.

Q2: I have a Mitutoyo 2046 vertical‑plunger dial gauge-can I use it with this stand?
A: The stand is designed for lever‑type (horizontal‑contact) gauges, because the gauge holder is positioned horizontally to contact the armature's vertical face. A vertical‑plunger gauge would not fit. We recommend using a lever‑type gauge (Mitutoyo 513‑series) for this stand. If you already have a vertical‑plunger gauge, we offer an adapter bracket that reorients it for horizontal use-it's available separately.

Q3: The stroke stop's micrometer head has a small amount of backlash-does that affect the measurement?
A: The micrometer head has a fine thread with a backlash of approximately 0.01 mm, which is accounted for in the measurement protocol: you always approach the setting from the same direction (tightening) and never reverse the micrometer without re‑zeroing. The instructions detail this procedure. For the highest accuracy, use the micrometer's friction thimble to apply a consistent feel.

Q4: What is the expected drift of the zero‑set reference pin over time?
A: The reference pin is ground from hardened steel (HRC 60) and is stable to within 0.001 mm per year, assuming it is not dropped or scratched. However, we recommend checking it against a master gauge block (supplied with the stand) every 100 measurements or annually-whichever comes first. The master block is stored in the stand's base.

Q5: I have an ISG injector with a non‑standard solenoid housing diameter (27.5 mm)-is this common?
A: Some early ISG injectors (pre‑2016) had a 27.5 mm housing, though the standard is 28.0 mm. The clamp has a range of 26.0–30.0 mm, so it will grip the 27.5 mm housing-just tighten the thumb screw a little more. However, the centering may be slightly off; we recommend using the included centering shim (0.5 mm thick) to ensure the post is vertical.

Q6: The gauge reading fluctuates when I measure the stroke-could the injector be faulty?
A: Fluctuation (more than ±0.005 mm between readings) usually indicates that the armature is sticking in its guide due to varnish or oil residue. Clean the armature and guide with the included degreaser, then re‑measure. If the fluctuation persists, the guide may be worn-in which case the injector should be disassembled for further inspection. The stand itself is rigid and does not introduce fluctuation; it's a diagnostic tool that helps identify the issue.
