Universal Common Rail Injector Adapter Master Kit – One Case For Almost Every Bosch Injector

Tired of hunting for the "right" adapter every time a different common rail injector lands on your bench?
This Universal Common Rail Injector Adapter Kit is designed as a full-series solution for Bosch injectors – from small passenger-car CRI units to heavy-duty CRIN models – so you can clamp, connect and test them all with one professional kit.

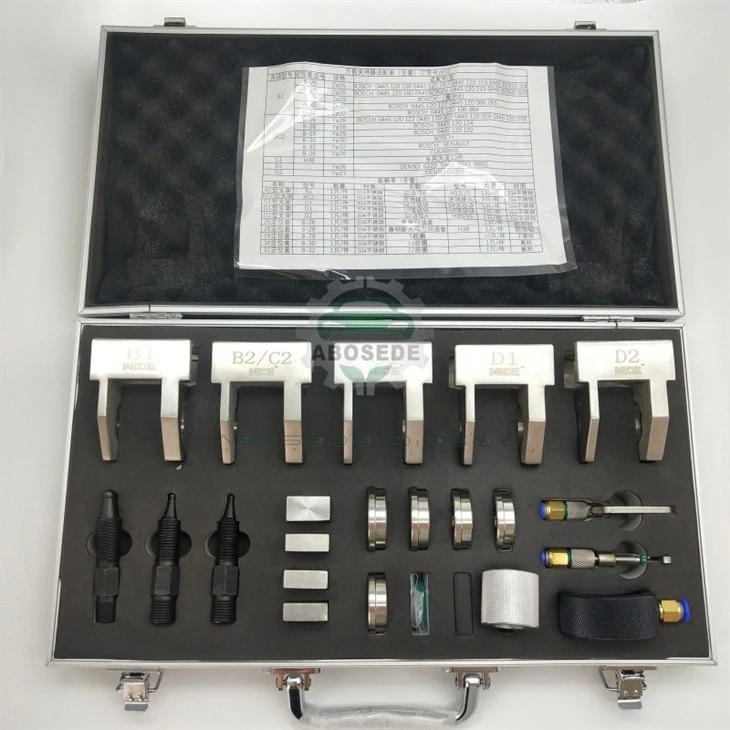

Packed in a rugged alloy case with a reference chart in the lid, the set typically contains:

5 × coded universal brackets – marked B1, B2/C2, D1, D2, … to match different Bosch injector body shapes and lengths.

Precision support rings & spacers – centre the injector and keep the needle axis perfectly straight during testing.

High-pressure / return adapters – machined connectors with O-ring grooves for easy hook-up to your common rail test bench.

Clamping studs & anchor hardware – hardened black bolts and fixtures that lock the adapter onto the bench with zero movement.

Auxiliary accessories – protective band, alloy blocks and small fittings for custom setups and special injectors.

All components are laid out in high-density foam, so technicians can identify the right bracket and adapter at a glance.





This style of kit is widely marketed as a universal adapter / clamp set for Bosch common rail injectors, suitable for use with most Bosch CRI / CRIN injectors on the market.

The different bracket codes correspond to popular Bosch families, for example:

Passenger-car and light-van injectors (0 445 110- / 111- / 115- series)

Medium truck and industrial injectors (0 445 120-, 0 445 121- series)

Selected off-highway and Euro-III/IV heavy-duty units

The chart in the lid links each injector part number to a specific bracket (B1, B2/C2, D1, D2 etc.), making adapter selection fast and mistake-free.





Like other branded "universal Bosch injector clamp / adapter" tools, this set is designed for daily professional use:

CNC-machined stainless steel brackets and rings – corrosion-resistant, easy to clean and kind to injector bodies

Tight tolerances to keep injectors perfectly aligned during flow, back-leak and response tests

Replaceable Viton® O-rings on the adapters for reliable sealing with hot diesel or calibration fluid

Compact, labelled carry case – ideal for mobile service vans and crowded pump rooms

Every adapter is precision-machined, assembled and test-fitted to ensure consistent performance, similar to other high-end Bosch injector adapter tools used worldwide.





This common rail injector adapter master kit is the missing link between your test bench and almost any Bosch injector that comes through the door:

On common rail test benches – secure injectors for full-load, pilot and back-leak testing

During disassembly / cleaning – hold injectors safely in a vice or fixture without damaging the body

For training & teaching – demonstrate injector operation and diagnostics using a single, flexible fixture set

In mobile or field service – the aluminium case keeps everything organised for on-site troubleshooting

If your business repairs or tests a mix of passenger car, light commercial and truck injectors, this kit dramatically cuts setup time and reduces the number of single-purpose fixtures you need to buy





Compared with home-made brackets or generic v-blocks, a dedicated universal adapter kit gives you:

Repeatable positioning – same depth and angle every time, so test results are comparable

Improved safety – solid clamping prevents injectors from moving under pressure

Faster change-over – switch from one injector type to another just by swapping bracket codes

Professional image – a clean, clearly labelled kit looks the part when customers visit your workshop





Product name: Universal Common Rail Injector Adapter Master Kit

Application: Bosch common rail injectors, multi-series CRI / CRIN

Material: Stainless-steel brackets & rings, hardened steel studs, brass / steel adapters, Viton® O-rings

Use: Test bench clamping, leak-off and flow testing, disassembly support, training

Packaging: 1 complete set in alloy carry case with injector cross-reference chart

Condition: 100% new, precision-machined, suitable for professional diesel workshops
