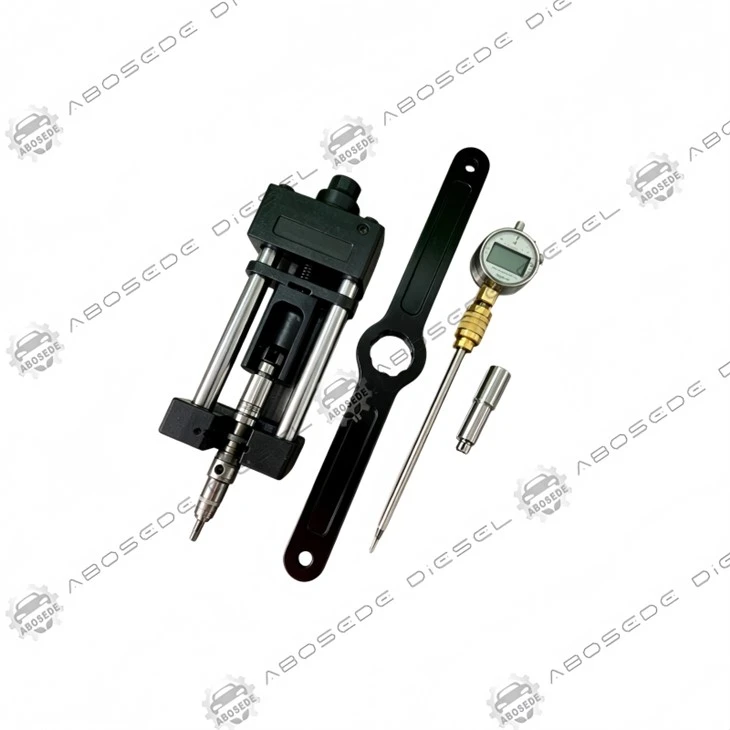

Cummins China VI Service Master Toolkit – Integrated Diagnostic Suite For XPI Fuel & Aftertreatment Systems

The transition to China VI (equivalent to Euro VI) transforms the Cummins XPI fuel system into a closed-loop mechatronic network where injector response, NOx conversion, and DPF regeneration are mutually interdependent. A single sensor offset can derate the engine by 40% without a single mechanical failure. Generic toolkits address individual components; our Service Master Toolkit consolidates 23 purpose‑built adapters, simulators, and fixtures that mirror the engine's electronic control logic-allowing technicians to validate sensor readings, actuate valves, and bleed high‑pressure circuits without relying solely on diagnostic software. This is not a collection of random wrenches; it is a hardware interface that translates J1939 fault codes into physical test points, bridging the gap between the ECM's virtual model and the engine's actual mechanical state.

---

The XPI system operates at rail pressures up to 2,600 bar (37,700 psi), where micron‑level sealing is paramount. Our toolkit includes a rail pressure bleed‑down adapter with a needle‑valve that safely reduces pressure from 2,600 bar to atmospheric in controlled 200‑bar steps, preventing the hazardous "diesel mist" explosion common when cracking high‑pressure lines. The injector hold‑down bolt socket is machined to a precise 30 mm 12‑point profile, compatible with both the standard M12×1.25 and the updated M14×1.5 studs found on ISG and Z14 engines. A dedicated injector solenoid connector break‑out box allows parallel connection of a lab scope to monitor the 120‑V peak voltage (injector opening pulse) while the engine runs-critical for diagnosing P0216 (injector timing deviation) without removing the valve cover. The set also provides pump gear locking pins for the Bosch CP3.3 and CP4.2 pumps, indexed to the exact crankshaft position (TDC #1) for accurate timing verification.

China VI aftertreatment relies on four NOx sensors (upstream/downstream of SCR), two delta‑P sensors (DPF differential), and a PM sensor. Faulty readings from these sensors cause forced derates and regeneration lockouts. Our simulator module generates calibrated 0‑5 V and 50‑500 Hz PWM signals that mimic genuine sensor outputs, enabling technicians to verify ECM response without needing a running engine. The delta‑P simulator provides selectable pressures from 0 to 100 mbar (DPF clean) and 100‑300 mbar (soot loaded)-allowing regeneration system validation by observing the ECM's active regeneration trigger (DOC inlet temperature setpoint). The NOx simulator includes pre‑programmed curves for idle, cruise, and full load, plus a "rapid aging" mode that gradually offsets the signal to test the OBD threshold. All connectors are Deutsch DT‑04 style, directly plugging into the OEM harness. For physical servicing, we supply the NOx sensor removal socket (22 mm hex, thin‑wall) and the ammonia slip sensor protective cap for cleaning.

Every XPI injector carries a 12‑digit trim code that adjusts the ECM's pulse width compensation. Our tool includes a magnetic‑clamp reader that extracts this code from the injector's QR code (ISO/IEC 15415 compliant) and displays it on an OLED screen-eliminating transcription errors that lead to rough idle. For rail pressure sensor (RPS) calibration, we provide a precision pressure reference adapter (0‑300 bar, ±0.1% full scale) that connects to the rail test port, allowing the technician to compare the ECM‑displayed pressure against an independent mechanical gauge. This feature is essential after replacing the RPS or the fuel pump, as the ECM must learn the offset via the "rail pressure learn" procedure-our adapter includes a needle valve to isolate the reference gauge during the learning cycle, preventing over‑pressurisation.

The toolkit is housed in a rugged, foam‑lined case with colour‑coded slots for each tool-ensuring rapid inventory checks and preventing loss. Integrated torque‑limiting extensions for critical fasteners include:

Injector clamp bolt: 45 Nm + 90° angle (with included angle‑gauge)

Rail pressure sensor: 30 Nm (pre‑calibrated click‑type adapter)

DPF mounting band clamps: 25 Nm (prevents distortion of the ceramic substrate)

NOx sensor: 45 Nm (flat‑bottom socket with torque‑limiting collar)
All torque adapters are NIST‑traceable and re‑certifiable. Additionally, the case includes a 24V LED work light with a magnetic base, a wire‑stripping tool for repair harnesses, and a dielectric grease applicator for connector sealing-covering every step from sensor replacement to ECM connector re‑pin.

Q1: Why does a new NOx sensor often read incorrectly even after replacement?
A: The ECM stores a long‑term adaptation offset for the NOx sensor. After replacement, you must perform the "NOx sensor zero‑adjustment" procedure using our simulator module-it provides a clean 0‑ppm reference signal that resets the offset. Without this, the new sensor will inherit the old sensor's drift, causing false efficiency codes.

Q2: My engine derates after DPF regeneration – is the regeneration successful?
A: Check the delta‑P reading during regeneration. If the delta‑P does not drop below 30 mbar after active regen, the DPF is either cracked (bypass) or ash‑loaded beyond recovery. Use our delta‑P simulator to bypass the sensors and command a forced regeneration; if the temperature rises normally but delta‑P stays high, the issue is the filter, not the sensors.

Q3: How do I safely bleed the high‑pressure rail on an ISG engine without damaging the injectors?
A: Our bleed‑down adapter connects to the rail's test port. Open the needle valve ¼ turn-pressure drops at 200 bar per second. Never loosen the high‑pressure lines; our method protects the injector's precision seat from debris disturbance. Always wear protective gloves and face shield.

Q4: The injector trim code reader shows a code, but the ECM rejects it-why?
A: The ECM accepts only codes for its specific software calibration. Our reader displays both the OEM code and the "flash‑compatible" version. If they differ, you need to update the ECM calibration using the manufacturer's diagnostic tool. Our reader helps you verify before you attempt flash programming.

Q5: Can these tools work on older Euro V Cummins engines?
A: Most adapters (injector sockets, rail bleed, torque extensions) are backwards‑compatible, but the sensor simulators (NOx/PM) are specific to the China VI voltage levels (5V vs. 12V for older sensors). We offer a separate Euro V simulator kit; contact us for the correct variant.

Q6: What is the most common cause of intermittent P0607 (ECM performance) after sensor replacement?
A: Often, a pinched or chafed sensor harness causes intermittent voltage spikes. Our toolkit includes a harness continuity tester with a 12V pulser that identifies intermittent opens while you wiggle the harness-a feature not available in standard multimeters. Always route the new harness away from the exhaust manifold, using the supplied heat‑resistant loom.
