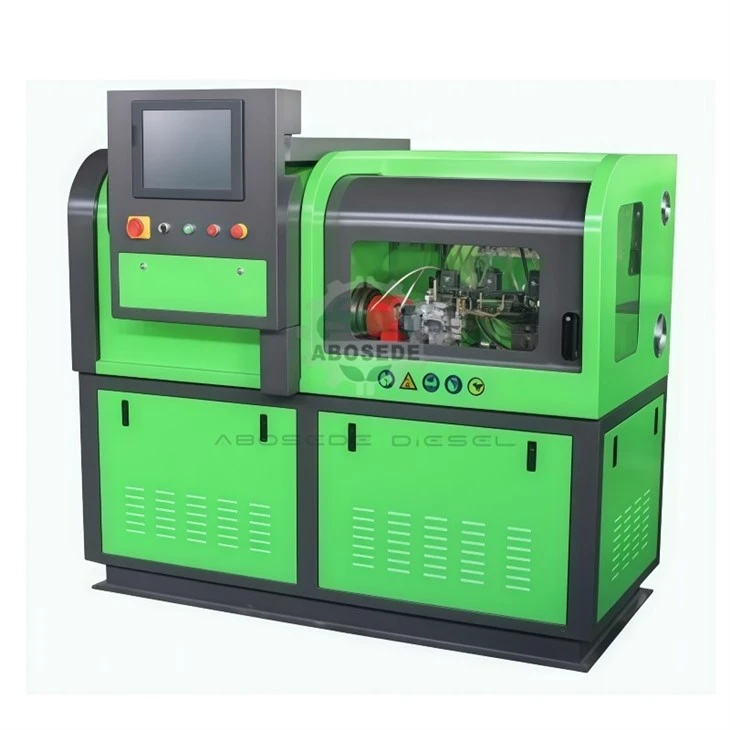

CR925 Common Rail Injector & Pump Test Stand

For diesel repair shops transitioning from mechanical fuel systems to the complexities of high-pressure common rail technology, equipment versatility often determines profitability. The CR925 directly addresses this operational challenge by functioning as a unified diagnostic workstation. It eliminates the need for multiple specialized machines, providing a single platform that performs laboratory-grade flow analysis on both contemporary piezoelectric injectors and legacy in-line pumps. This model is built around an embedded industrial computer system, ensuring that data acquisition remains stable even in environments with fluctuating power or high vibration. By offering precise control over rail pressure up to 2800 BAR through a BOSCH DRV valve, the unit delivers the repeatability required for professional remanufacturing, allowing workshops to confidently guarantee component performance.

---

The CR925 adapts to the diverse inventory found in a high-turnover diesel service center. It conducts fully automatic detection on electromagnetic injectors from BOSCH, DELPHI, DENSO, and SIEMENS, as well as all modern piezoelectric injectors, evaluating solenoid inductance, response time (BIP), and armature stroke (AHE). Beyond injectors, the system covers high-pressure pumps, including the DENSO HP0 and CAT320D variants, alongside optional support for BOSCH VP44, DENSO V3/V4, and EDC-ZEXEL RED4 pumps. For heavy-duty applications, optional modules extend to CAT HEUI (C7/C9/C-9/C3126B, 3408/3412, FORD6.0) and unit pump systems from major OEMs. This extensive coverage allows a single technician to service a wide array of engine types without switching equipment, reducing idle time between jobs and maximizing bay utilization.

---

Reliable diagnostics require hardware that maintains its calibration under continuous use. The CR925 utilizes a BOSCH CP3.3 high-pressure oil pump in conjunction with a DRV pressure control valve, achieving rail pressure regulation within ±0.5 BAR across the entire 0-2800 BAR range. Fuel delivery is measured by a high-precision flow sensor with a 0.3% accuracy rating over a 0.008-4L/min span. The main drive motor offers flexible power options (7.5KW to 22KW) and is configurable for three-phase 220V or 380V supplies, with a rotational speed range of 0-4000 RPM. To ensure testing consistency unaffected by ambient workshop temperatures, the system maintains fuel at 40±2°C via either air or optional forced cooling. These specifications ensure that the data displayed on the color LCD touchscreen is reliable enough to base warranty decisions upon.

---

Efficient workflow integration is a critical selling point for the CR925. The test stand streamlines the ECU matching process by offering QR code generation for BOSCH and DENSO injectors, as well as online creation of DELPHI C21/C31 and SIEMENS (VDO) IIC codes. This feature bridges the gap between the test bench and the vehicle's engine management system, eliminating the manual lookup errors that often delay rebuild completion. Additionally, the system supports remote online assistance and software updates, allowing the test bench to evolve alongside new injector releases without requiring physical hardware modifications. This capability ensures a longer useful life for the equipment and protects the initial capital investment.

---

Investing in a comprehensive test bench like the CR925 translates directly into improved turnaround times and reduced comebacks. Common rail systems operate under immense stress, where minor flow deviations lead to issues like white smoke during cold starts or excessive DPF soot loading. The CR925 allows technicians to quantify these deviations before installation, effectively shifting the workshop from reactive part-swapping to proactive component validation. This not only minimizes the risk of secondary damage from faulty injectors-such as piston wash or cylinder scoring-but also enhances the workshop's standing as a competent repair facility. By enabling the precise calibration of injector trim codes at the bench level, it ensures that new or remanufactured parts are immediately compatible with the vehicle's ECU, reducing diagnostic headaches and customer complaints related to fuel trim adaptation.

---

Q1: Does the CR925 come pre-calibrated, or is an initial setup required?
A: The CR925 is delivered with a factory calibration certificate and pre-loaded baseline data for common OEM parts. A simple fluid fill and voltage verification are all that is required to begin immediate operation upon delivery.

Q2: How does the system handle the shift between testing gasoline components and diesel units?
A: This unit is strictly a diesel-specific workstation. It is not designed for gasoline injector testing, ensuring that the fuel system and seals remain uncontaminated and the pressure curves remain accurate for heavy fuel applications.

Q3: Can the software be updated to test injectors released next year?
A: Yes. The CR925 supports remote online upgrades, enabling workshops to download new manufacturer data files directly to the embedded PC, ensuring future model compatibility without the need to purchase additional hardware.

Q4: What is the real-world impact of the 0.3% flow sensor accuracy on a repair job?
A: This precision prevents the installation of marginally performing injectors. A flow discrepancy beyond this tolerance can cause a noticeable imbalance in engine smoothness. The CR925 helps technicians filter out those borderline parts, ensuring reliable repairs.

Q5: Is there a specific ambient temperature requirement for the workshop to operate this bench?
A: The bench features an onboard fuel temperature control unit set to 40±2°C, which effectively cancels out the influence of ambient workshop temperatures on diesel viscosity, allowing consistent operation in both cold winters and hot summers.
