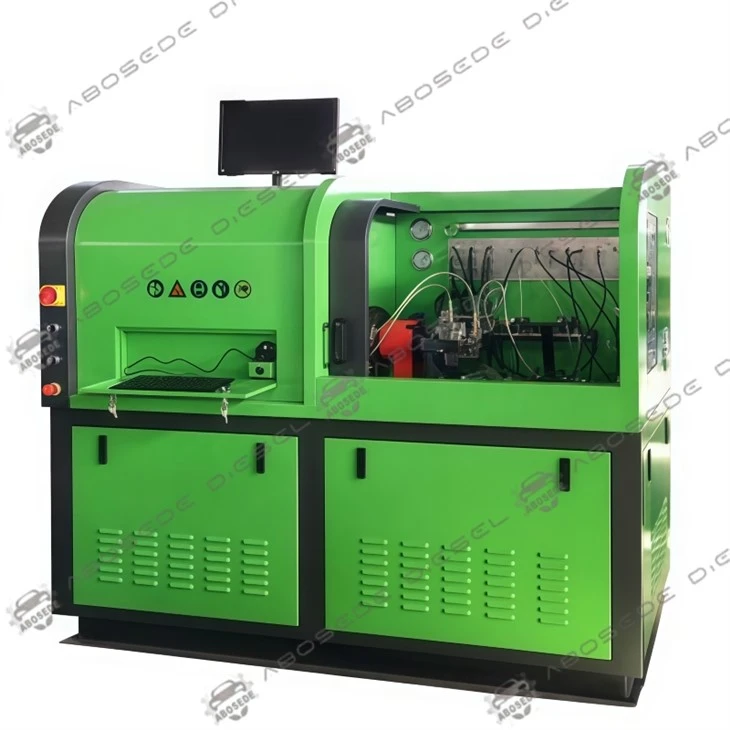

CR817 Common Rail System Test Bench – Precision Diagnostics For Modern Diesel Shops

For independent diesel repair shops and cross-border parts distributors, the real cost of common rail servicing isn't just in the equipment-it's in the return loops, misdiagnosed injectors, and external calibration fees that eat into every work order. The CR817 Common Rail System Test Bench addresses these operational drains directly, shifting injector and pump validation from a bottleneck to a profit center. This single workstation replaces separate rigs for mechanical inline pumps, VE pumps, and all modern high-pressure common rail systems, while generating brand-specific correction codes on-site-Bosch QR, DENSO QR, Delphi C21/C31, and Siemens VDO IIC-so parts move straight from test to customer vehicle without third-party delays.

---

Controlled via a color LCD touchscreen interfacing with an embedded industrial computer, the CR817 delivers consistent, interruption-free performance across lengthy diagnostic sessions. Pressure is generated by the factory-included BOSCH CP3.3 high-pressure pump, feeding into a rail regulated by the BOSCH DRV valve that achieves pressures up to 2800 BAR with a rail pressure tolerance of +,- 0.5 bar. Flow measurement relies on a precision sensor spanning 0.008 to 4 L/min with an accuracy rating of 0.3%, allowing technicians to pinpoint micro-leaks and internal wear that would escape lesser equipment. Variable motor speed ranges from 0 to 4000 RPM, with selectable power outputs from 7.5KW to 22KW (three-phase 220V/380V) to suit different workshop electrical configurations.

The CR817 extends beyond standard injector analysis to accommodate the most demanding HEUI and actuation systems prevalent in North American heavy-duty fleets. Through optional modules, it enables fully automatic detection of CAT C7/C9/C-9/C3126B HEUI and CAT3408/3412/FORD6.0 HEUI injectors, alongside BOSCH VP44 and DENSO V3/V4 rotary pumps. Critical electronic parameters are measured directly, including solenoid valve inductance, armature dynamic stroke (AHE), and injector response time (BIP). These measurements support precise injector grouping for balanced cylinder output, minimizing engine vibration and combustion irregularities. Additionally, the optional CAT 320D common rail pump detection and dynamic stroke assessment enable proactive rebuild strategies, significantly reducing unplanned fleet downtime. The EUI/EUP testing module extends coverage to Bosch, CAT, Cummins, Delphi, Benz, and Volvo unit pump systems, as well as dual solenoid valve injectors.

Performing in-house QR and IQA code generation delivers immediate commercial returns by removing the logistical burden and liability of third-party calibration services. The CR817 prints Bosch and DENSO QR codes, Delphi C21/C31 codes, and Siemens VDO IIC codes online, ensuring injectors are perfectly synchronized with the Electronic Control Unit (ECU) for optimized fuel atomization and emissions compliance. Online remote assistance and regular system upgrades maintain hardware relevance as new engine management protocols emerge, safeguarding the capital investment for years.

Parameter	Specification	Additional Notes
Control Interface	Embedded PC + Color LCD Touchscreen	Stable touch response
Pressure Generation Unit	BOSCH CP3.3 Pump + DRV Valve	Maximum 2800 BAR output
Rail Pressure Stability	± 0.5 BAR	Critical for ECU matching
Flow Sensor Range	0.008 – 4 L/min	Accuracy: 0.3%
Motor Power (Optional)	7.5 / 11 / 15 / 18.5 / 22 KW	220V or 380V, 3-phase
Speed Regulation	0 – 4000 RPM	Fully variable control
Oil Temperature	40°C ± 2°C	Thermally regulated
Cooling Method	Air-cooled / Forced cooling	Optional configurations

Targeted at workshops servicing Class 8 trucks, construction machinery, and agricultural equipment, the CR817 delivers immediate diagnostic clarity for high-pressure fuel systems where downtime directly impacts revenue. Its optional testing modules for dual solenoid valve injectors and unit pumps address the specific demands of modern transport and off-highway sectors. The ability to switch between mechanical and common rail platforms within a single test stand conserves workshop floor space while expanding service capabilities. The forced cooling option, specifically engineered for continuous high-load testing, sustains measurement accuracy even during back-to-back diagnostic cycles, preventing thermal drift that compromises calibration integrity.

---

Q1: How does the CR817 help distributors manage core return penalties from OEMs like Bosch and DENSO?
A: By measuring actual solenoid inductance and flow deviation before shipping, distributors can screen out borderline cores that would otherwise incur chargebacks. This pre-shipment validation reduces core rejection rates significantly.

Q2: What ongoing costs should we budget beyond the initial purchase-filters, calibration fluids, or wear parts?
A: Routine maintenance involves periodic replacement of inline filtration elements and standard test oil replenishment. The BOSCH DRV valve and CP3.3 pump are rated for extended service intervals under normal use, with no expensive annual recertification required.

Q3: Can the system generate test reports compatible with our existing inventory management software?
A: Yes. Test data can be exported in standard formats, allowing batch traceability and integration with warehouse management systems for better stock rotation and warranty tracking.

Q4: How does the forced cooling option affect long-term component reliability in hot climates?
A: The optional forced cooling maintains hydraulic oil viscosity at 40°C ±2°C even during sustained high-pressure runs, preventing pump cavitation and seal degradation-particularly important for shops in warmer regions or those testing heavy-duty HEUI injectors back-to-back.

Q5: What is the typical break-even period for a distributor handling 50–100 injectors weekly?
A: Most cross-border operations report recouping the investment within 8–12 months through eliminated third-party testing fees, reduced warranty returns, and the ability to offer certified matching services that command premium pricing.
