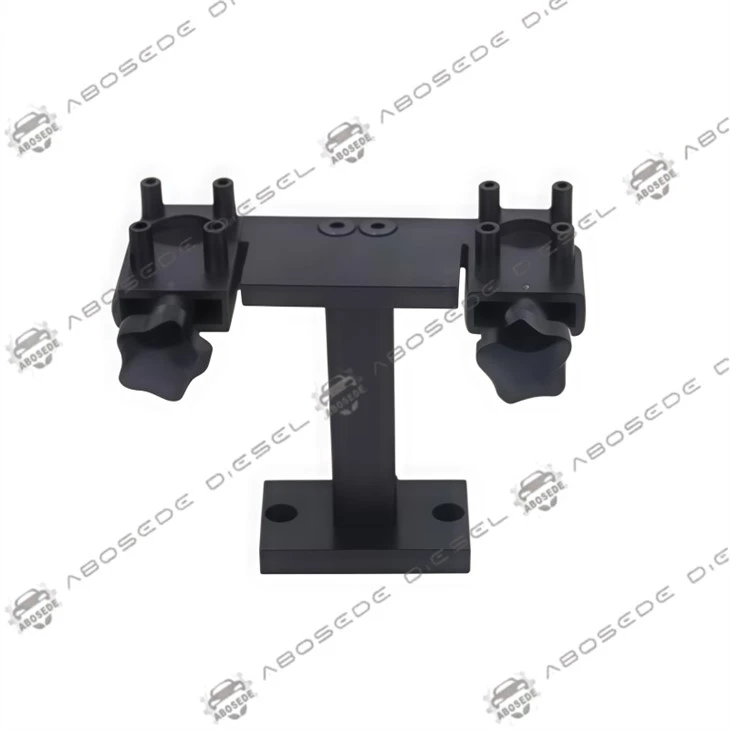

T02 Injector Holding & Positioning Stand

Accurate injector diagnostics begin with stable workholding. The T02 has been engineered to eliminate the variables introduced by improper clamping during common rail injector testing and service procedures. Unlike universal vises that induce lateral stress on injector bodies, this fixture secures the component through a floating jaw arrangement that automatically centers the injector regardless of body diameter. The result is a repeatable, stress-free mounting platform that preserves seal integrity and ensures test results reflect injector condition rather than fixturing artifacts. Built for workshops processing high volumes of solenoid and piezo injectors across multiple OEM platforms, the T02 reduces setup time while maintaining the positioning accuracy demanded by modern high-pressure common rail systems.

The T02 comprises a stationary baseplate with integrated female threading and a rotatable insert that carries the clamping mechanism, permitting 360° rotation of the clamped injector for rigid test pressure line alignment. Float-mounted clamping jaws travel horizontally along guide screws, accommodating injector body widths from 17mm through 28mm without requiring change parts. A central clamping screw draws the opposing jaws together with parallel closure maintained by an integrated washer disk. The entire assembly is fabricated from case-hardened steel with all bearing surfaces ground to a 0.8μm finish. Bench mounting utilizes standard M8 fasteners through slotted base holes accepting 150mm to 200mm bolt center spacing.

Service facilities handling mixed-brand diesel inventories will find the T02 applicable across the majority of current production injector architectures. Covered platforms encompass Bosch CRI (both solenoid and piezo variants), Denso HP0/HP3/HP4 top-feed injectors, and Delphi common rail units. The stand accommodates injector overall lengths from 120mm to 220mm, sufficient for both passenger car and heavy-duty commercial injectors. In remanufacturing environments processing exchange injectors, the T02 ensures consistent positioning for leak-off testing and spray pattern evaluation. The rotatable insert feature proves particularly advantageous for workshops running Bosch DCI 700 or EPS 205 test benches, where rigid high-pressure plumbing requires injector orientation adjustment without unclamping.

Correct installation begins with bolting the baseplate to the test bench surface, ensuring the U-shaped recess opens toward the operator. The rotatable insert is placed into the baseplate recess until contact with the circumferential collar, allowing free rotation without vertical play. Injector insertion follows: the component slides laterally into the U-shaped opening of both baseplate and insert. The clamping jaws are advanced using the central screw until light contact, then final tightening is applied evenly. A critical step involves rotating the insert to align the injector inlet with the test pressure line-this adjustment is performed with jaws snug but not fully torqued, followed by final clamping once alignment is verified. Over-tightening must be avoided; retention relies on frictional engagement, not deformation. For Bosch CRI injectors with orientation requirements, reference marks on the insert assist in reproducing position across service cycles.

The T02 delivers value through three mechanisms: setup time reduction, test result repeatability, and component protection. Quick-change capability between injector families translates to measurable throughput gains in high-volume remanufacturing lines. The floating jaw geometry ensures the injector's longitudinal axis remains perpendicular to the test bench plane regardless of body diameter, eliminating measurement errors that arise when off-axis clamping distorts internal clearances. This positioning precision directly impacts the accuracy of return fuel volume measurements and actuation response testing. For workshops offering diagnostic services to commercial fleets, the T02 enables generation of verifiable test reports with documented fixturing parameters. The stand's durability, with hardened jaws rated for over 10,000 clamping cycles, makes it a long-term asset that outlasts the multiple injector generations it will service.

Q1: Does the T02 accommodate both solenoid and piezo injector types from the same brand?
A: Yes. The floating jaw design automatically adapts to the external body dimensions of both types, provided they fall within the 17mm to 28mm diameter range. No change parts are required.

Q2: Can this stand mount directly onto a Bosch DCI 700 test bench?
A: The baseplate mounting holes accept standard M8 fasteners on 150-200mm centers, compatible with most Bosch, Delphi, and Lucas test bench work surfaces including DCI 700 and EPS 205 series.

Q3: What occurs if the clamping screw is overtightened?
A: The jaws include a mechanical stop that prevents excessive closure. Proper technique involves tightening until secure, then a quarter-turn maximum beyond contact.

Q4: How frequently should the float-mounted jaws be replaced?
A: Under typical usage of 50-100 injectors weekly, the hardened jaws maintain geometry through approximately 10,000 cycles. Monthly visual inspection for wear is recommended.

Q5: Is the T02 compatible with HEUI injectors from Caterpillar and Navistar?
A: The T02 handles HEUI external dimensions for mechanical retention. Specialized test benches for HEUI technology require additional interfaces not provided by the stand alone.
