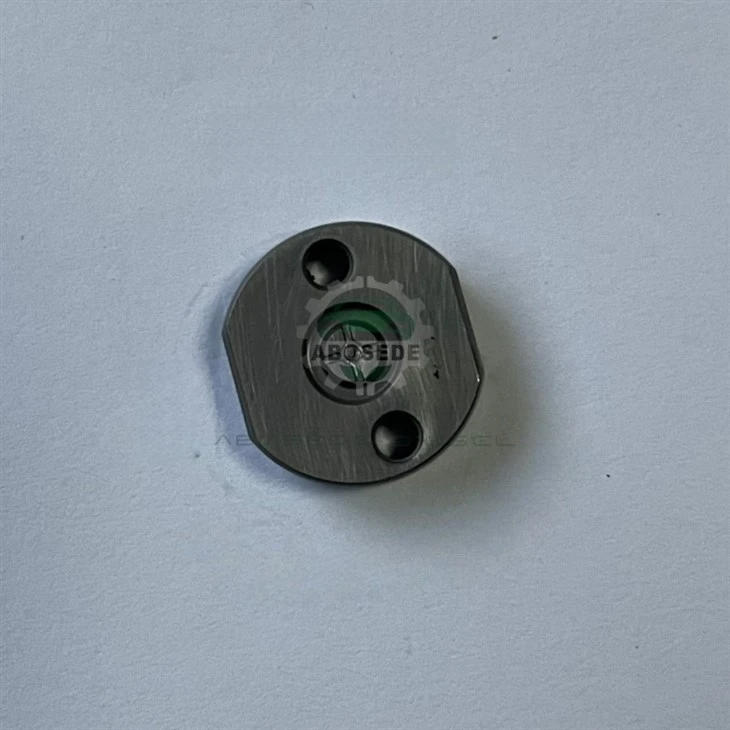

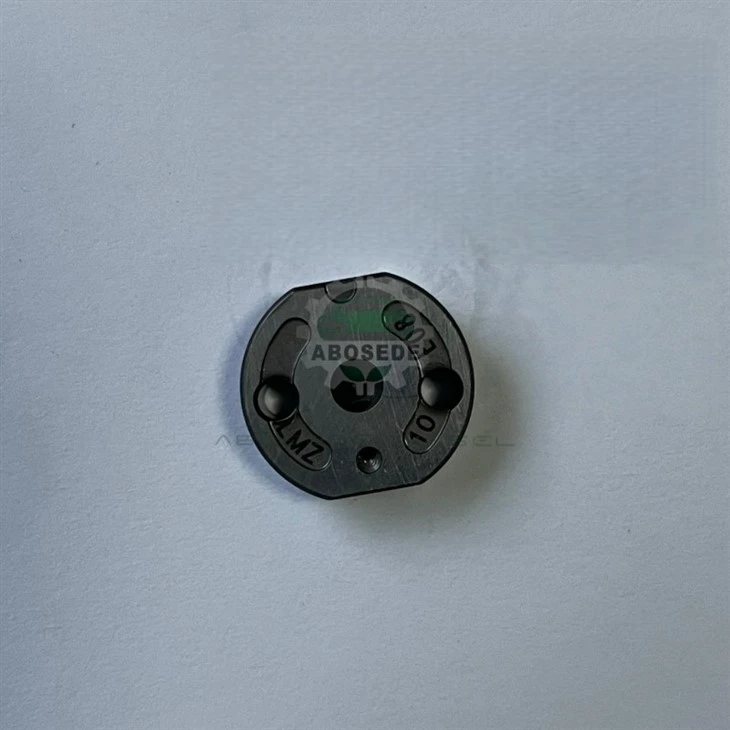

10# Valve Plate For Denso Common Rail Injectors | OEM 095000 Series Control Orifice Repair Solution

This 10# valve plate is a precision-engineered control orifice component designed for Denso common rail injectors used across light commercial, agricultural, and industrial diesel platforms. Serving as the critical interface between the injector's control chamber and the high-pressure fuel circuit, this valve plate governs the hydraulic response that determines injection timing and quantity. When the original plate develops wear scars, erosion, or surface deformation, the injector loses its ability to hold rail pressure consistently-resulting in rough idle, excessive return flow, and hard starting from cold. The 10# specification is a direct-fit replacement for a broad range of 095000-series injectors, allowing repair shops to restore injector function without replacing the entire unit.

The 10# control valve plate is manufactured to exacting tolerances for the Denso injector family, with a seating surface finish and orifice geometry matched to the original design intent. It is compatible with a wide array of injector assemblies including 095000-5125, 095000-5214, 095000-5271, 095000-5284, 095000-5653, 095000-5780, 095000-5960, 095000-5963, 095000-5971, 095000-5972, 095000-6250, 095000-6350, 095000-6351, 095000-6352, 095000-6353, 095000-6360, 095000-6364, 095000-6593, 095000-6583, 095000-6971, 095000-6890, 095000-7172, and 095000-8290 . The plate's through-hole diameter and surface flatness are the two variables most sensitive to lapping wear; this replacement restores the sealing integrity required for the control piston to modulate the needle's opening stroke without pressure bleed-off.

Replacing the 10# valve plate demands a clean bench, calibrated torque control, and strict adherence to Denso's injector reassembly sequence. The plate sits beneath the control valve assembly and must seat perfectly flat against the injector body's lapped surface; any residual carbon or ultrasonic cleaning residue trapped beneath the plate will create a pressure leak that mimics a failed injector. Before installation, inspect the injector body's seating face under magnification-if corrosion pitting or mechanical indentation is visible, the body is scrap and the plate should not be fitted . Lubricate the new plate with clean diesel fuel or assembly oil, align the orifice with the body's fuel passage, and torque the retaining nut to the injector manufacturer's specification (typically in the 30–45 Nm range for the nozzle retaining nut, with the inlet connector at a separate value). Never reuse the old retaining nut or sealing washers; the crush characteristics of these components are single-use by design.

A complete Denso common rail injector for the applications listed above routinely retails between $400 and $900 depending on the reference and sourcing channel. The 10# valve plate alone addresses the single most common failure mode on high-mileage 095000 units: control chamber leakage caused by impact wear on the plate's seating band. By replacing this component, a repair shop converts a full injector replacement into a bench repair with a parts cost an order of magnitude lower, while preserving the calibrated solenoid and nozzle assembly that remain within specification. For diesel injector wholesalers, stocking the 10# plate alongside nozzle DLLA155P842, DLLA150P866, and DLLA153P884 sets enables a complete injector overhaul kit offering that independent garages cannot source from OE dealers. The growing age of the 095000 fleet-many units now exceed 250,000 kilometers in transit and agricultural duty-ensures sustained demand for this repair path.

Q1: Can I fit the 10# plate into an injector that has already been repaired once before?
A: Yes, provided the injector body's control chamber seat has not been machined or damaged. If a previous repair used an incorrect plate thickness or left lapping marks, the body must be replaced.

Q2: How do I identify whether a 095000 injector needs a valve plate or a nozzle?
A: High return flow at idle with normal nozzle spray pattern points to plate wear. Bench test both return volume and spray quality before disassembly.

Q3: Does this plate require calibration after installation?
A: No electronic coding is needed for the plate alone, but injector performance should be verified on a test bench to confirm return flow and delivery match the application's specification.

Q4: What is the typical service life of a replacement 10# plate in commercial use?
A: With clean fuel and proper filtration, 80,000–120,000 km is realistic in light commercial service. Agricultural and continuous-duty applications may see shorter intervals.

Q5: Do you supply the plate with the retaining nut and sealing washers?
A: The plate is sold as a standalone component. Confirm with your supplier whether the nut and washer kit are included or ordered separately.

Q6: Can the 10# plate resolve a P0087 or P1093 code on common rail engines?
A: If the root cause is internal injector leakage causing rail pressure drop, yes. Diagnose return flow rates before replacing the plate.
