Valve Plate G18 – The Orifice That Defines Denso Injector Response

In a common rail injector, fuel doesn't simply flow - it's orchestrated. Every microsecond of the injection event is shaped by a series of precision components working in concert. And at the heart of that orchestration, for Denso's G3 common rail injectors, sits a component that most operators never see but every injector relies upon: the Valve Plate G18.

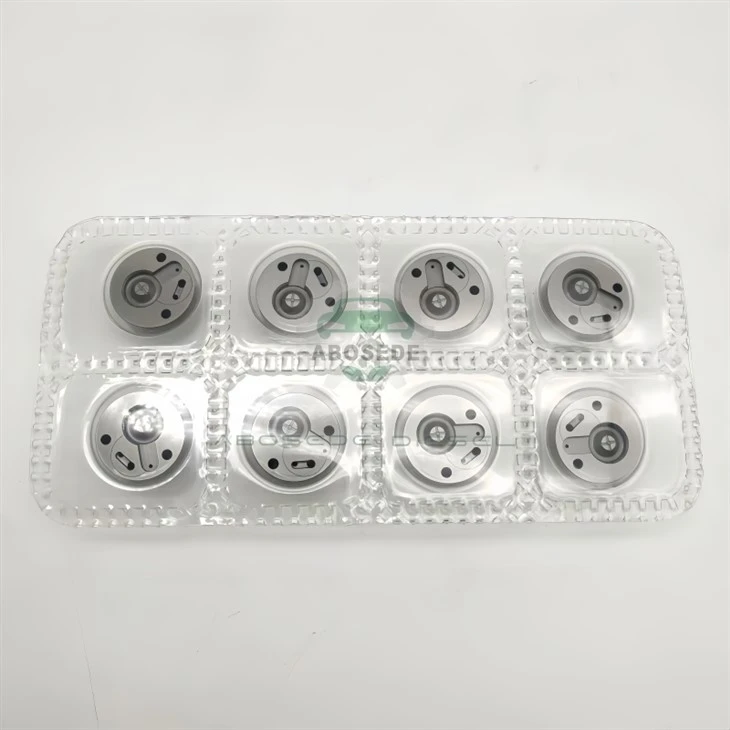

This is not a complete injector. It's not a solenoid, a nozzle, or a control valve body. The Valve Plate G18 is an orifice plate - a precision-machined disc that sits within the injector's control valve assembly, regulating the flow of high-pressure fuel that determines how the injector responds to the ECU's command. It's the component that translates electrical signals into hydraulic precision.



The Valve Plate G18 belongs to a family of orifice plates used in Denso common rail injectors, specifically the G3 series and related platforms. Its job is deceptively simple: control the flow of fuel through the injector's internal hydraulic circuits.

What this means in practice:

Flow regulation - the G18's precisely sized orifice meters the fuel that actuates the injector's control valve

Response shaping - the orifice geometry determines how quickly the injector opens and closes

Pressure management - the plate helps maintain the pressure differentials that enable precise injection control

The "G18" designation identifies both the orifice size and the application family. Within Denso's numbering system, different orifice plates - 10#, 12#, 18#, 19#, 29#, 31#, and others - are calibrated for different injector models and fuel delivery requirements. The 18# plate sits in the middle of this range, optimized for applications requiring balanced flow characteristics.



Specification	Detail
Part Designation	Valve Plate G18 / 18# Orifice Plate
Application	Denso G3 common rail injectors
Material	High Speed Steel
Certification	ISO 9001:2015
Compatibility	Denso injectors including 095000-0260, 095000-5050

Material characteristics (based on standard orifice plate specifications):

High Speed Steel construction - provides the wear resistance required for high-pressure fuel environments

Precision-ground orifice - the flow-controlling aperture is machined to tolerances measured in microns

Hardened surface - resists erosion from high-velocity fuel flow

Cross-reference injector numbers for the G18 plate include:

Injector Number	Application
095000-0260	Denso common rail injector
095000-5050	Denso common rail injector
095000-5450	Denso common rail injector
095000-5454	Denso common rail injector

---



The Valve Plate G18 is engineered for Denso common rail injectors, particularly those used in:

Primary applications:

HINO P11C engines - heavy-duty commercial vehicle applications

Denso G3 injector series - a generation of common rail injectors used across multiple OEM platforms

Chinese commercial vehicle applications - where Denso injectors are widely used

The plate is a serviceable component - when an injector's performance degrades, the issue is often wear or contamination in the control valve area. Replacing the orifice plate, along with other wear components, can restore injector performance to near-new levels.



The G18 operates within the control valve assembly of a Denso common rail injector - the hydraulic interface between the solenoid and the nozzle.

How the system works:

The ECU sends an electrical pulse to the injector solenoid

The solenoid opens a pilot valve, releasing pressure from the control chamber

The pressure drop allows the nozzle needle to lift, initiating injection

The orifice plate (G18) meters the fuel flow that controls this hydraulic sequence

Why the orifice plate matters:

Response time - the orifice size determines how quickly the control chamber pressure changes

Injection consistency - precise flow control ensures consistent injection from cycle to cycle

Durability - the plate must withstand millions of pressure cycles without degradation



Orifice plates operate under extreme conditions. High-pressure fuel - up to 2,000 bar - flows through the precision orifice with every injection event. Over time:

Orifice erosion - high-velocity fuel flow gradually enlarges the orifice

Contamination damage - microscopic debris can scratch the precision surfaces

Corrosion - water or acidic fuel can attack the plate material

Signs that the G18 needs replacement:

Rough idle - inconsistent flow control affects injection stability

Loss of power - altered flow characteristics reduce fuel delivery

Increased fuel consumption - compromised orifice affects injection precision

Excessive smoke - poor atomization from incorrect injection timing



Orifice plate replacement is typically performed as part of an injector overhaul:

The injector must be removed from the engine - orifice plate replacement requires injector disassembly

The control valve assembly must be accessed - the plate sits within the valve stack

All seals must be replaced - O-rings and seals are single-use components

The injector must be calibrated - after reassembly, the injector must be flow-tested

Critical note: Orifice plate replacement is not a DIY job. The G18 requires specialized tools, a clean work environment, and access to a calibration test bench. Incorrect installation will result in poor performance, increased emissions, and potential engine damage.



Q1: What injectors use the G18 plate?
The G18 is used in Denso injectors including 095000-0260, 095000-5050, 095000-5450, and 095000-5454. It's primarily associated with HINO P11C engines and Denso G3 injector series applications.

Q2: What material is the G18 made from?
The G18 is manufactured from High Speed Steel, providing the wear resistance and durability required for high-pressure fuel environments.

Q3: What are the warning signs that my orifice plate needs replacement?
Common symptoms include rough idle, loss of power under load, increased fuel consumption, and excessive smoke. These indicate that the orifice has eroded or become contaminated, affecting flow control precision.

Q4: Can I replace just the orifice plate, or do I need the complete injector?
You can replace just the orifice plate - it is a serviceable component. However, orifice plate replacement requires complete injector disassembly and recalibration. If the injector has high hours, a complete overhaul is recommended.

Q5: What's the warranty on this valve plate?
This valve plate comes with a warranty that reflects the manufacturer's quality standards.
