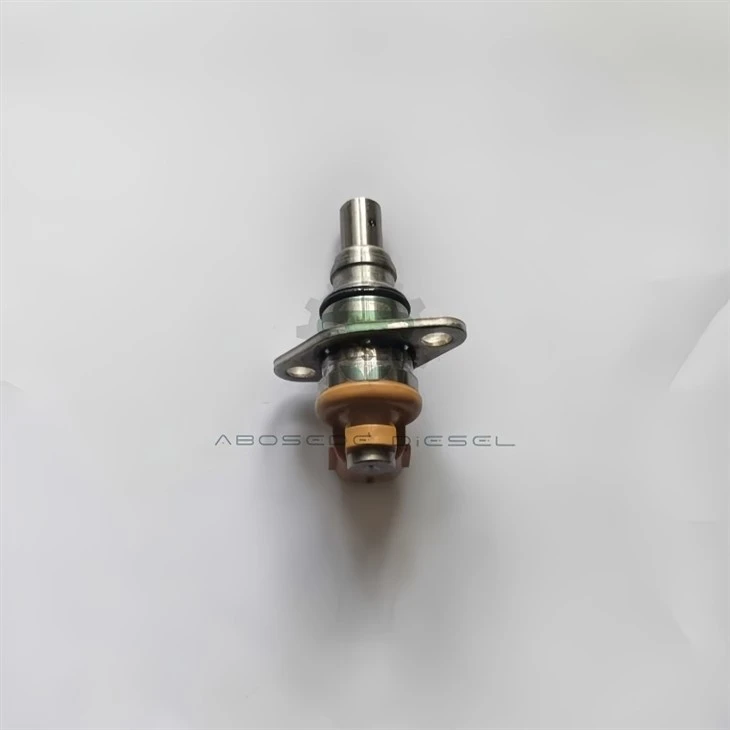

Denso 096710-0052 – The SCV That Balances Magnetic And Hydraulic Forces For Stable Idle Control

In a Denso common-rail system, the suction control valve (SCV) is subjected to two opposing forces: the magnetic force from the solenoid, which pulls the armature closed, and the hydraulic force from the fuel pressure, which pushes it open. At idle, where the fuel demand is low and the pressure fluctuations are most significant, these forces must be balanced precisely to maintain a stable rail pressure. If the balance is disturbed, the idle speed fluctuates, and the engine runs rough. The 096710-0052 is engineered with a magnetic circuit that compensates for the hydraulic force variations at idle, ensuring that the armature remains stable even when the fuel pressure fluctuates. It is the valve that keeps the idle steady, so the engine runs smoothly when it is not under load.

At idle, the engine requires very little fuel - typically 5-8 mg per cylinder per stroke. The SCV is operating at a low duty cycle (15-25 %), and the armature is near the fully open position. In this position, the hydraulic force from the fuel pressure is at its highest relative to the magnetic force - the fuel is pushing the armature open, and the solenoid is pulling it closed. If the magnetic force is not strong enough to overcome the hydraulic force, the armature drifts open, and the rail pressure drops. If the magnetic force is too strong, the armature drifts closed, and the rail pressure rises. The 096710-0052 addresses this with a magnetic circuit that has a force characteristic matched to the idle condition - the magnetic force is strongest at the open position, compensating for the hydraulic force.

The magnetic circuit in the 096710-0052 is designed with a specific force-stroke curve that is matched to the hydraulic force curve at idle. The solenoid is wound with a specific number of turns, and the core is shaped with a specific geometry that provides a magnetic force that is strongest when the armature is open and weakest when it is closed. This is the opposite of a standard magnetic circuit, which provides a force that is weakest when open and strongest when closed. The result is a valve where the net force on the armature is zero at idle, and the armature remains stable. The magnetic circuit is calibrated to the specific hydraulic force of the Denso HP3 pump, ensuring that the idle stability is maintained.

The force balance can be lost if the coil degrades or if the armature guide wears. A degraded coil provides a weaker magnetic force, and the armature drifts open, causing the idle speed to drop. A worn guide increases the friction, causing the armature to stick, which creates an erratic idle. The genuine 096710-0052 uses a high-temperature coil that resists degradation and a coated armature that resists wear, ensuring that the force balance is maintained.

Installing the 096710-0052 is a mechanical procedure - remove the old valve, clean the mounting surface, replace the O-ring and backup ring, and torque the retaining nut to 24 Nm. However, there is a specific step: reset the SCV adaption values using a diagnostic tool. The ECU stores the adaption values for the old SCV - if they are not reset, the ECU will apply the old corrections to the new valve, causing erratic idle. The adaption reset is a simple procedure that takes only a few seconds.

Q1: How can I tell if my SCV's force balance is compromised without removing it?

→ Monitor the idle speed - if it fluctuates, the force balance may be compromised.

Q2: Can I use the 096710-0052 on a Toyota Avensis that originally used a different SCV?

→ Yes, but always verify the number on your existing valve.

Q3: Why does my engine have a fluctuating idle that improves when the air conditioning is on?

→ The additional load stabilises the idle, masking the force balance issue.

Q4: What is the most common cause of force balance loss in this valve?

→ Coil degradation - the magnetic force weakens, and the armature drifts.

Q5: I replaced the valve but the idle still fluctuates - is the valve defective?

→ Check the idle air control system - the issue may be an air leak.

Q6: Does the force balance work with biodiesel blends?

→ Yes, but biodiesel has a different viscosity, which can affect the hydraulic force.
