Pressure Limiting Valve (PLV) For Toyota Common Rail Systems – Right & Left Types
1. Product: Pressure Limiting Valve
2. Manufacturer: Abosede
3. Adaptive pump: Denso high pressure pump
4. Model: 23810-30100, 23810-0L030, 23180-30110
5. Condition: Brand New
6. Origin: made-in-China
7. Shipping period：3-5 days
8. Payment terms：T/T, Western union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Abosede Diesel supplies high-quality Pressure Limiting Valves (PLVs) designed for Toyota diesel engines equipped with Denso common rail fuel systems. These mechanical safety valves are installed on the fuel rail and are responsible for releasing excess fuel pressure to protect the injectors, sensors, and pump components.
We offer both right-facing and left-facing PLV types to accommodate different fuel rail layouts in global Toyota models.
⚙️ Function of the PLV Valve
The PLV functions as a mechanical safety valve:
- Automatically opens when fuel rail pressure exceeds a set threshold (usually 180–200 MPa)
- Diverts excess diesel fuel to the return line or low-pressure side
- Prevents overpressure-related damage to the fuel injectors and rail sensor
- Maintains safe, stable rail pressure during engine operation
Unlike electronic pressure control valves, the PLV works purely mechanically and is a critical backup protection system in Denso HP-series common rail pumps.
📦 Available Part Numbers & Orientation
|
Part Number |
Outlet Direction |
Installation Type |
Notes |
|

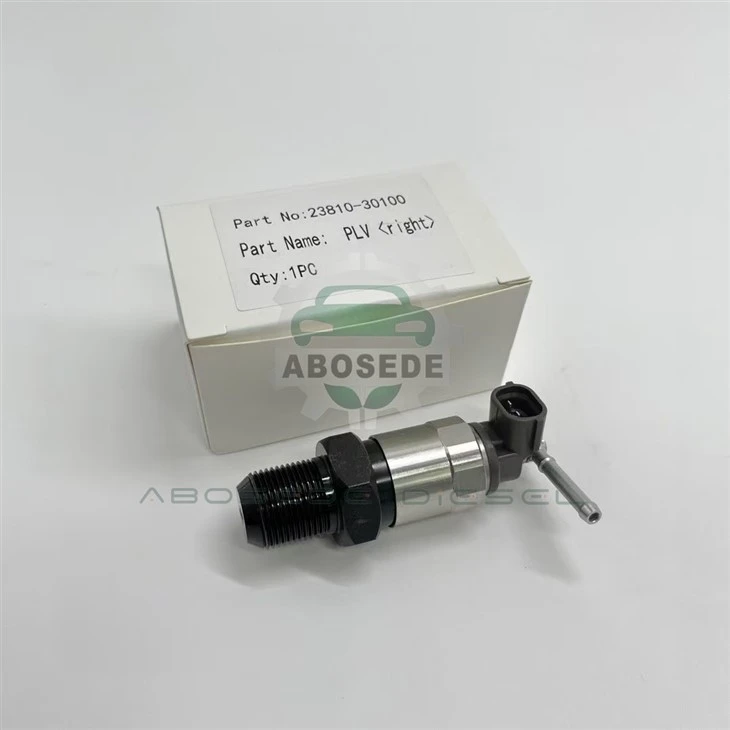

23810-30100 |
Right |
Right-mounted |
Earlier OEM version |
|

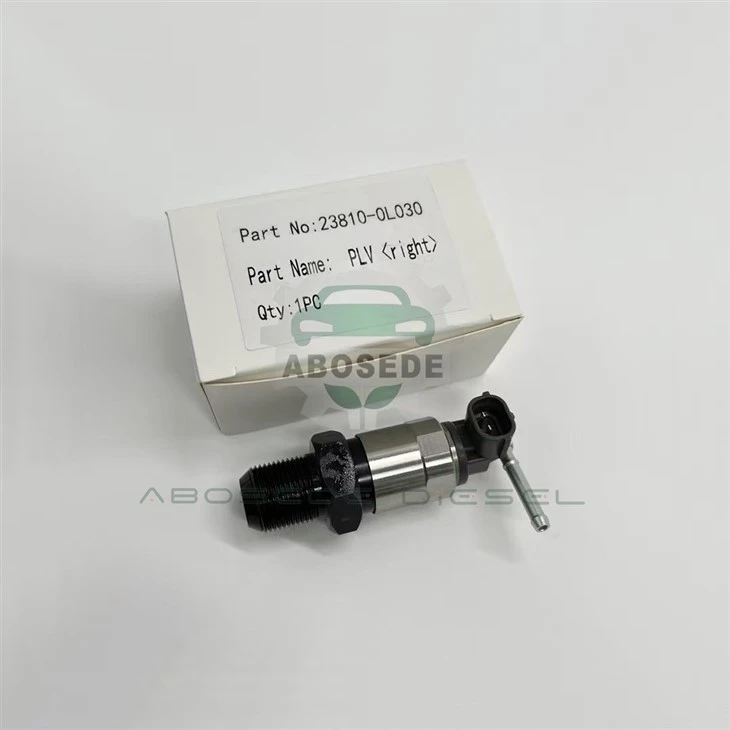

23810-0L030 |
Right |
Right-mounted |
Updated replacement for 30100 |
|
23180-30110 |
Left |
Left-mounted |
For reversed layout fuel rails |
- Right-facing PLVs (30100 & 0L030) are functionally identical, used interchangeably depending on production year.
- Left-facing PLV (30110) is designed for models with return lines on the opposite side of the rail.
- Ensure correct orientation during replacement for proper fuel return hose routing.
🚗 Compatible Fuel Systems & Applications
✅ Fuel Pump Type: Denso HP3, HP4, HP5 common rail pumps
✅ Engine Types: 1KD-FTV, 2KD-FTV diesel engines
✅ Vehicle Models (varies by region/year):
- Toyota Hilux
- Toyota Land Cruiser Prado
- Toyota Fortuner
- Toyota Hiace
- Other diesel platforms using 1KD/2KD engines
These PLVs are located directly on the fuel rail and interact with the rail pressure sensor and fuel injectors. Correct functioning ensures reliable cold starts, smooth acceleration, and fuel system safety.
🛠 Common Symptoms of a Faulty PLV
- Engine hesitation or power loss under load
- Excessive smoke due to low rail pressure
- Rail pressure fault codes (e.g., P0088 / P0089)
- Diesel leakage near the rail return port
- Difficulty starting, especially when hot
🧪 Product Quality Features
🔩 Machined to OEM dimensions for perfect fit
🛡 High-pressure Spring and seal designed to resist vibration and cavitation
🔧 Threaded mounting and crush-seal ready
🧱 Corrosion-resistant finish for extended service life
🔍 Tested for crack pressure accuracy and return flow consistency
🔗 Related Products
- Common Rail Injector for 1KD/2KD
- Denso HP3 / HP4 / HP5 Injection Pumps
- Rail Pressure Sensor
- Fuel Rail Assembly
