DENSO 295050-0152 / 8-97622719-2 Injector Reconditioning Set – Commercial Diesel Platform

For workshop owners and diesel service specialists managing high-mileage Isuzu-powered fleets, the DENSO 295050-0152 reconditioning set (OE equivalent 8-97622719-2) delivers a factory-matched component package aimed squarely at restoring injector performance without the capital outlay of complete unit replacement. This assembly groups all wear-prone internals necessary to bring a degraded G3-style common rail injector back within production tolerances, targeting the specific failure modes that emerge after thousands of operating hours under variable load conditions.

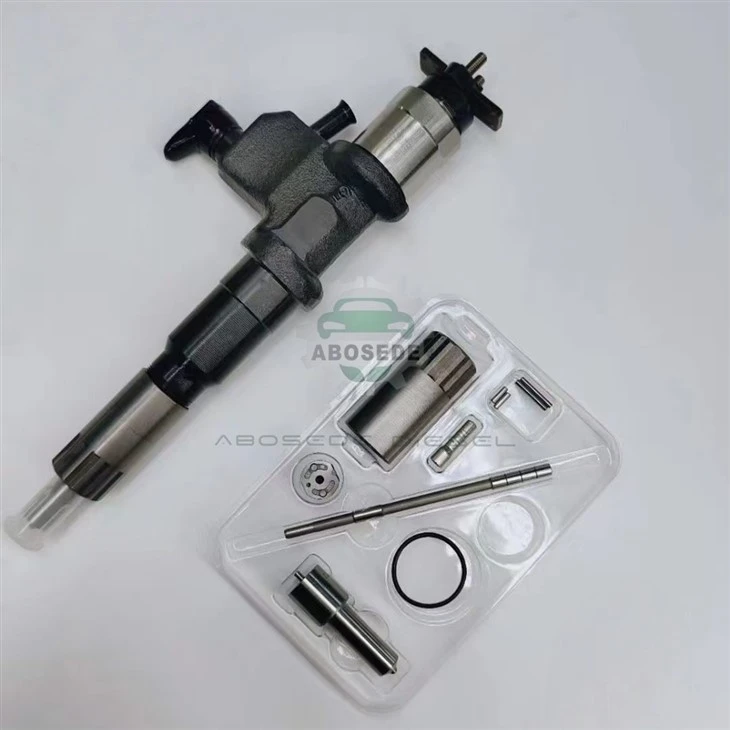

This service bundle centres on the nozzle and valve group, incorporating the spring set, stopper, and precision-ground control piston that govern fuel metering within the injector body. Each sealing element-from the high-pressure O-rings to the backup rings-arrives as a matched set, dimensionally validated to suit the injector's internal clearances. The needle lift and spray-hole configuration are fixed by the original Denso engineering parameters, meaning the kit preserves the injector's hydraulic flow coefficient across its entire actuation window. Workshops should note that the package excludes the solenoid coil and outer housing; it is strictly a wear-component refresh, not a full top-end rebuild. Checking the nozzle serial prefix stamped on the existing unit remains the definitive method for confirming spray-angle parity before breaking the torque seal on the retaining nut.

The OE reference 8-97622719-2 anchors this kit firmly within the Isuzu commercial portfolio, specifically the 4HK1-TC and 6HK1-TC displacements found in NPR HD, NQR, and FTR cab-over configurations. Beyond the Isuzu core, this set crosses over to selected Hino J-series and Mitsubishi Fuso Canter applications that share the Denso G3 fuel delivery architecture. For parts procurement teams, the critical compatibility checkpoint remains the injector body stamping-visually matching the 295050-0152 casting number on the original unit overrides any generic vehicle-model lookup, particularly for grey-market imports or engine-swapped chassis. Fleet maintenance supervisors also report successful fitment in certain off-highway equipment using the same base engine, although the ECU tuning differs for stationary power applications.

Successful installation demands a contamination-controlled environment-fuel-borne particulates as fine as 5 microns can score the new valve mates and compromise the rebuilt injector within the first start-up cycle. Extraction of the old unit requires a dedicated slide-hammer puller to preserve the cylinder-head bore finish; any galling on the injector pocket must be addressed with a reaming tool prior to insertion. When torquing the nozzle retaining nut, a staged tightening sequence-typically 20 Nm initial, then final angle-tightening-prevents distortion of the nozzle body and ensures consistent needle-to-seat closure. Critically, post-assembly work is incomplete without rewriting the injector correction code into the engine management system. The alphanumeric IQA value specific to this rebuild package must be retrieved from the kit documentation and flashed into the ECU; neglecting this step introduces cylinder-to-cylinder imbalance, manifesting as crankshaft speed fluctuation and elevated exhaust-gas temperatures under pull.

Given the operating pressure ceiling of modern Denso systems-regularly exceeding 1,800 bar-the internal valve plate and nozzle needle endure cyclical fatigue that progressively widens the dynamic injection window. Replacing these degraded elements with the 295050-0152 restoration set offers a cost-per-mile advantage that wholesale new-injector pricing simply cannot match, particularly for operators running ten or more trucks. Moreover, remanufacturing in-house using this kit enables the workshop to offer a "core exchange" service model, generating margin on both the rebuild labour and the returned housing while reducing warranty exposure-new injectors carry no history, whereas a reconditioned unit with fresh internals has a known service record. From an emissions standpoint, restoring the correct spray pattern and piloted injection timing directly lowers particulate output, assisting fleets in maintaining roadside inspection compliance without resorting to aftertreatment tuning.

Q1: Does this reconditioning set include the solenoid driver or the injector's electrical connector seal?
A: No. The 295050-0152 package covers only the hydraulic section-nozzle, valve, springs, and internal fuel seals. The upper solenoid assembly, electrical connector grommet, and the copper heatshield gasket for the cylinder-head bore are separate line items that must be sourced additionally.
Q2: How do I distinguish a genuine 8-97622719-2 kit from aftermarket copies at the receiving dock?
A: Authentic Denso packaging carries a holographic security label with a peel-away verification code. Beyond that, weigh the nozzle-counterfeits often use lower-density steel. Genuine units also have a laser-etched batch number on the valve-body periphery that matches the outer carton barcode.
Q3: One of our technicians says skipping the ECU update is acceptable for older mechanical-pump conversions. Is that correct?
A: Incorrect. This injector operates on a time-based energising strategy. Even if the base engine lacks a factory ECU in a conversion, the common-rail pump still requires a pulse-width signal calibrated to the new nozzle response. Without the updated IQA correction, the rail-pressure regulator cannot compensate, leading to unstable idle and prolonged cranking.
Q4: What is the typical failure indicator that prompts a shop to order this kit rather than just replacing the nozzle alone?
A: The primary trigger is a back-leak test showing excessive spill flow-above 35 mL per minute at hot idle-combined with a positive deviation on the cylinder-balance readout. This points to control-valve wear, not just nozzle erosion, making the full kit the only effective remedy.
Q5: Can this kit be used for a one-time core refurbishment, or is the housing reworkable multiple times?
A: The housing itself-provided it passes a magnetic-particle crack inspection and the plunger bore shows no scoring-can be rebuilt multiple times. However, we advise a maximum of two reconditioning cycles using this set before replacing the housing, as the press-fit zones for the valve body gradually yield under thermal cycling.
Q6: Are there any regional fuel-quality considerations that affect the rebuilt injector's service window?
A: Yes. In markets where biodiesel blends exceed B20 or fuel lubricity falls below the 520-micron HFRR standard, the needle guide wears prematurely irrespective of the new components. We recommend pairing this kit with a secondary water-fuel separator and periodic injector return-line flow checks every 800 operating hours.
