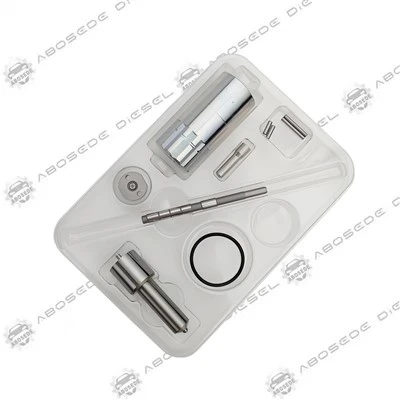

Denso Injector Service Kit 095000-6970 / 23670-09190 – Complete Common Rail Overhaul Package

For workshops confronting the familiar drivability complaints tied to high-mileage Toyota and Lexus diesel powerplants, this Denso injector service kit offers a factory-grade pathway to restoring fuel delivery precision. Engineered around the 095000-6970 injector body and confirmed by OE reference 23670-09190, the set bundles every wearing consumable required to reverse the effects of millions of combustion cycles on internal metering surfaces. Rather than consigning entire injector assemblies to the scrap bin, service managers can now redeploy refurbished units with performance benchmarks that rival new components, while maintaining full control over turnaround schedules and replacement costs.

The Denso repair components within this package reflect the original equipment manufacturer's exacting material science. Nozzle assemblies arrive with DLLA-type orifice plates, laser-drilled and hydro-eroded to produce spray-hole geometries that atomise fuel consistently across the full pressure spectrum. Accompanying control pistons undergo selective hardening to resist the micro-welding phenomena common in high-pressure fuel films, while valve seat inserts feature radius-ground sealing faces that mate with the half-ball valve without leakage hysteresis. The kit further supplies calibration shims in graded thicknesses, enabling technicians to re-establish needle lift values between 0.25 mm and 0.35 mm depending on the engine management strategy. Solenoid return springs, manufactured from drawn music wire with presets to eliminate relaxation, maintain armature response times within 0.3 ms tolerances. Every elastomeric seal – from the injector clamping O-ring to the high-pressure fuel inlet washer – employs FKM compounds rated for continuous exposure to 150°C sump temperatures and transient rail spikes up to 1,800 bar, eliminating the fuel weepage that often triggers under-bonnet fire hazards or false rail-pressure fault codes.

This 095000-6970 service set directly supports the 1AD-FTV, 2AD-FTV, and 2AD-FHV diesel blocks, which anchor the Toyota D-4D strategy across model years 2005 through 2018. Typical recipients include the Toyota Avensis saloon and estate variants, the Toyota Corolla Verso people carrier, the Lexus IS 200d executive saloon, and select Toyota RAV4 SUVs equipped with the 2.2-litre turbo-diesel. The 23670-09190 factory number confirms this kit's role as a direct exchange for original-fit injectors, while additional reference points – 095000-6680, 095000-7320, 095000-7330, and 095000-7680 – testify to the family-wide part-sharing across multiple Denso production batches. For purchasing departments managing diverse fleets, this interchange breadth reduces stock-keeping complexity, as a single kit number addresses multiple engine codes that share identical injector architecture. Diagnostic technicians should note that vehicles exhibiting extended cranking during hot restarts, fluctuating fuel trim values beyond ±3 mg/stroke, or visible black particulate emissions under transient throttle are prime candidates for this overhaul intervention.

Effective installation of this Denso overhaul set demands a methodical workflow that begins with ECU compensation code extraction. Each injector body carries a laser-etched QR matrix that encodes individual flow characteristics; this data must be retrieved via diagnostic interface and stored before any disassembly, as the replacement components will alter the injector's hydraulic response. The solenoid cap nut (27mm across flats) frequently seizes due to galvanic corrosion between the steel nut and aluminium body – workshops equipped with induction heaters can apply controlled thermal shock to break the oxide bond without galling the threads. Extraction of the valve seat retainer requires a proprietary spline socket, and technicians must inspect the retainer's inner bore for radial scoring, which often signals command piston seizure and condemns the entire injector housing. During reassembly, torque staging follows a defined sequence: the nozzle cap nut receives 45–55 Nm in three incremental passes, while the solenoid retaining screws are set to 6 Nm with thread-locking compound to prevent loosening from injector-body resonance. Post-assembly, every rebuilt injector should undergo dynamic validation on a common rail test bench – typical acceptance criteria include leak-off volumes under 18 ml/min at idle pressure, spray-cone angles within ±2 degrees of nominal, and fuel delivery linearity across the five-point calibration curve that ECU mapping expects.

Adopting a component-level service kit for the 095000-6970 injector recalibrates the cost-benefit equation for diesel repair facilities. New OEM injectors frequently carry price tags that absorb a substantial portion of a major service budget, yet the primary failure modes – needle guide wear, control ball erosion, and elastomer embrittlement – concentrate in replaceable elements rather than the solenoid housing or body casting. By intervening with this Denso rebuild kit, workshops reclaim the ability to offer customers a mid-tier option between "run-to-fail" and "replace-all" strategies. The injector service approach also insulates repairers from core-exchange surcharges and the logistical overhead of shipping worn units to off-site remanufacturers. Fleet maintenance planners will recognise the extended service interval potential, as properly rebuilt injectors frequently match the longevity of new equivalents when combined with primary fuel filtration (2-micron absolute). Furthermore, restoring spray penetration and droplet size distribution directly impacts diesel particulate filter regeneration frequency, reducing the passive regen cycles that consume fuel and stress aftertreatment hardware. This holistic improvement in combustion quality translates to observable gains in urban fuel economy and smoother power delivery under trailer-towing loads.

Q1: How can I confirm that this service package matches the injector generation in my workshop bay?
A: Inspect the top-face stamping on the existing injector – the 095000-6970 base number must match. Also verify the two-letter production suffix against our published compatibility matrix; early G2 injectors used different valve lift shims, while this set covers the mainstream production run.

Q2: Are the calibration shims supplied in a single thickness, or will I receive a selection to fine-tune flow?
A: This kit includes a graduated shim assortment spanning 0.5 mm to 1.2 mm, allowing test-bench operators to set dynamic opening pressure within 10 bar of factory nominal. You select the shim that delivers the specified pilot and main injection quantities.

Q3: What specific symptoms on a Toyota D-4D engine should prompt our service team to recommend this kit?
A: Customer complaints of hesitation during light throttle, intermittent engine stall returning to idle, and a 15–20% increase in fuel consumption since the previous service – combined with leak-off returns exceeding 25 ml/min – indicate internal wear that this set directly corrects.

Q4: Does using this kit affect the DPF regeneration scheduling or cause misfire codes post-installation?
A: If bench-tested and calibrated correctly, rebuilt injectors restore fuel delivery symmetry, which typically reduces soot loading and normalises regen intervals. Misfire codes after installation almost always trace to air ingress during high-pressure line reconnection, not the injector rebuild itself.

Q5: Can this service package be applied to injectors already showing external diesel weeping around the solenoid?
A: Yes, provided the solenoid electrical resistance remains stable (0.5–0.7Ω) and the connector pins are intact. The sealing components supplied in this set replace every external and internal O-ring, so weeping at the solenoid junction should cease after correct torque application.

Q6: What documentation should we retain to support warranty claims on these service parts?
A: Record the pre-rebuild leak-off baseline, the selected shim thickness, and the five-point flow-bench readout per injector. Most suppliers require this evidence plus the installation date; retain both until the 12-month/100,000-km service life window closes.
