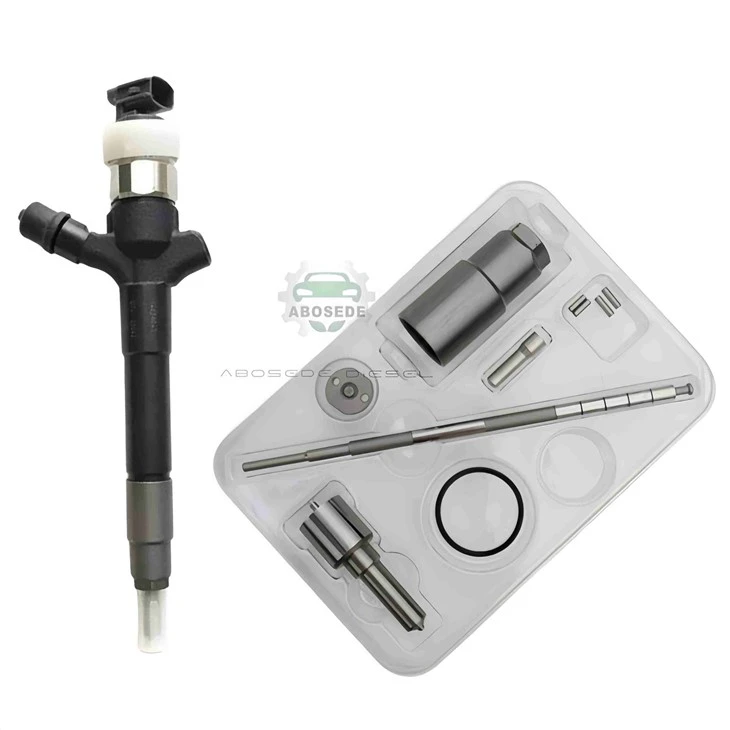

DENSO G2 Injector Rebuild Kit – 095000-7690 / 23670-09270

Every shop owner or parts buyer running a diesel service operation knows the math all too well: a single DENSO G2 injector that fails the response time test on the Hartridge CRI-PC means either sourcing a complete replacement at OEM cost or eating the labor on a comeback. For the high-mileage Toyota and Lexus D-4D fleets that roll through your bay-Avensis, RAV4, Corolla Verso-the margin for error is razor-thin. This rebuild kit directly addresses those failure modes without forcing you into the OEM parts channel. Designed for the 095000-7690 and its Toyota counterpart 23670-09270, it delivers the critical high-pressure seals and the cap nut that mechanics routinely damage on extraction. Instead of a full injector swap, you address the core failure mechanisms-back leakage creep, needle sticking, and internal pressure loss-keeping the unit on the flow bench and the customer's car out of the bay.

When you strap a suspect injector to the IFT-70 and run the pulse plan at 1,600 bar, the numbers either validate your rebuild or condemn the part. The kit's components-specifically the valve seat retaining nut and the command piston sealing elements-dictate whether that injector holds stable delivery figures across the idle, mid-range, and full-load test points. The nozzle opening pressure (NOP) shims and springs inside this pack allow you to dial the injector back to the 130–140 bar crack pressure that the G2 platform expects . This isn't about generic O-rings; it's about ensuring the solenoid valve seating remains perfectly sealed so your post-repair delivery and back leakage margins stay within the 30–40% threshold that signifies a healthy injector .

Cross-reference 095000-7690 against the service histories of the vehicles in your customer base. This kit covers the 1AD-FTV, 2AD-FTV, and 2AD-FHV engine families . If you are managing stock for high-volume European makes like the Toyota Avensis (2006–2018) or the Lexus IS 200d, this is the primary consumable you need. The challenge with these units isn't just mileage; it's the corrosion density that accumulates in the needle and nozzle body-often exacerbated by low-quality fuel . This kit ensures you aren't reusing compromised hardware that could lead to another failure within 50,000 km.

During disassembly, the nozzle retaining (cap) nut frequently binds to the injector body. The shortcut-reusing a scuffed cap nut-introduces a variable that even the best calibration shim adjustments can't fix. A compromised seating surface alters the clamping force on the pressure spindle and needle spring, skewing your response time readings. This kit includes a fresh nut as standard, eliminating the need to chase specialty hardware through secondary distributors. It allows you to torque the assembly to specification without worrying about galling or thread deformation, ensuring the QR code programmed into the ECU aligns with the actual hardware tolerances on the bench.

The economic case for rebuilding rather than replacing becomes clear when you look at the volume of units that fail purely due to seal degradation rather than internal component fracture. Studies on Denso components indicate that a significant portion of main body and valve assembly wear is surface-level corrosion that a proper tear-down and reseal can address . This kit provides the parts needed to perform that deep service. It also protects your warranty liability; by using a kit that matches the OE spec, you reduce the risk of a post-repair diesel knock that forces you to eat the return shipping and the labor.

Q1: How does this kit affect the QR correction code requirement?
A: Replacing the valve seat and the sealing components changes the mechanical tolerances of the injector. While this kit does not include the complex software to generate a new QR code, installing it without updating the correction values will result in rough idling and increased white smoke. You must input the specific correction code associated with the reconditioned injector using diagnostic tooling after the rebuild .

Q2: What is the failure rate for injectors rebuilt with this kit in corrosive fuel environments?
A: Data indicates that Denso needles and valve assemblies show significant corrosion density after 150,000 km, primarily due to fuel impurities. While this kit replaces the seals and needle spring, the longevity of the rebuild still depends on the condition of the original needle and armature assembly. If the internal components have pitting, a seal kit alone won't restore full life .

Q3: How does this kit manage inventory for shops running multiple Denso G2 variants?
A: The 095000-7690 cross-references with a wide range of OE numbers (23670-09230, 23670-0R050, etc.) . This means a single SKU supports rebuilds across multiple Toyota models (Avensis, Auris, RAV4). It simplifies stocking for busy shops, reducing the need to hold dozens of specific part numbers for the same injector generation .

Q4: If we see high return leakage post-rebuild, does this kit solve it?
A: Yes, the primary cause of excessive back leakage in the G2 injector is wear or failure of the half-ball valve seat and the valve seat retaining nut seal. This kit provides the replacement seat nut and seals to restore the hydraulic seal of the control chamber, which directly addresses back leakage issues at both idle and full-load flow settings .

Q5: Why is the 095000-7690 kit more expensive than generic seal sets?
A: The cost reflects the inclusion of the cap nut and the specific pressure spindle seals that are machined to exacting tolerances. Generic sets lack the metallic components necessary to secure the solenoid housing and maintain the clamping force of the nozzle; these are high-wear items that are critical for maintaining response time integrity .
