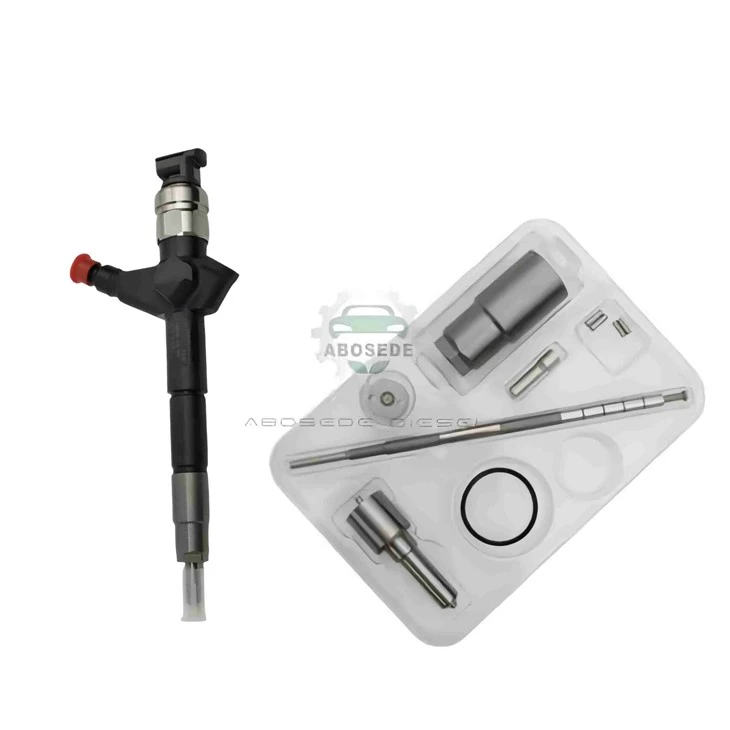

DENSO Common Rail Injector Service Kit 095000-6244 / 16600-VM00D

For a workshop bay with a Nissan Navara or Cabstar sitting idle since early morning, every extra hour of diagnosis and rework directly cuts into the weekly labour sheet. This DENSO 095000-6244 rebuild set-cross-referenced to OE 16600-VM00D-is the single parts bundle that gets that diesel common rail injector back into the block and the truck back on the road before the customer calls for a third status update. Designed around the G2 injector platform, this kit consolidates the high-wear internals that typically force a workshop to either tie up bench time chasing individual components or send the unit out for exchange and wait on logistics. It covers the control valve, the command piston, the half-ball valve, and the nozzle DLLA148P932, plus the critical shim set for stroke recalibration. No loose ends, no last-minute sourcing from a competitor down the street.

The most expensive invoice in a diesel injection shop is not the one for a premium repair kit-it is the one written off when a truck occupies a hoist for two days waiting on a missing needle valve seat shim. Every time a technician reassembles an injector only to find the nozzle retaining nut torque does not settle correctly, or the command piston stroke falls outside the acceptable range due to reused shims, the workshop eats those labour hours. This kit eliminates that variable. By delivering all wear-matched components in one sealed package, it allows a single technician to complete the overhaul and move the vehicle to the test bench within the same shift. For a busy independent diesel house, that translates into recovering bay availability and avoiding the penalty of delayed customer pickups-especially for commercial fleet customers who track their asset utilization by the hour.

The 095000-6244 designation directly targets the Nissan YD25 DDTi engine, a powerplant that appears across a wide cross-section of light commercial vehicles, from the Navara pickup to the Cabstar urban delivery chassis. This is not a universal "fits-all" assortment; it is a focused solution for Euro IV–spec applications where injector wear manifests specifically as erosion on the half-ball valve face and scoring along the guide plunger travel path. Workshops servicing agricultural support vehicles or small construction fleets will recognise the 16600-VM00D OE number as the factory-specified service part for these injectors. While this kit supersedes earlier -6240 and -6241 revisions, the component geometry and flow calibration align with the original hydraulic parameters, meaning the workshop does not need to adjust ECU correction maps beyond the standard QR code re-entry procedure. Always verify the engine serial prefix and the emission standard sticker under the bonnet-YD25 engines with DPF systems demand the exact nozzle flow rate that this kit delivers.

A repair is only profitable if it does not return to the bay within six months. The primary cause of short-interval injector failure after a rebuild is not component quality but microscopic debris left in the high-pressure galleries during reassembly. This kit includes the sealing washers and backup rings that protect the critical sealing interface between the valve seat and the injector body. When the technician installs the new half-ball valve and control valve assembly, the lapped surfaces are factory-protected against oxidation-but that protection is voided the moment the parts are exposed to airborne dust or contaminated diesel. The practical advice from experienced diesel shops: use a dedicated clean bench, replace the fuel return lines if they show internal flaking, and always perform a leak-off test after the first engine start. This repair kit gives you the hardware to restore injection timing accuracy; the workshop workflow determines whether that restoration holds past the first oil change.

For a parts manager, carrying rebuild kits for every injector variant on the market ties up capital that could otherwise turn over in filters and brake pads. The DENSO 095000-6244 covers a high-volume segment-the Nissan YD25 is still widely used in European and Australian markets, and its injectors are known to need attention between 150,000 and 200,000 kilometres depending on fuel quality. Stocking this kit allows the workshop to offer an on-the-spot rebuild service without maintaining a separate exchange inventory or waiting on core returns from a remanufacturer. This approach also sidesteps the core-charge accounting that often complicates customer invoices. When a fleet operator brings in three vehicles for preventive injector servicing, having this kit already on the shelf means the shop commits to a fixed turnaround time and collects payment upon completion-not upon final delivery from a third-party rebuilder. The nozzle and command piston tolerances in this bundle are certified to match the original flow rate of 47.74 mg/stroke under full load, so the workshop can confidently quote the job without leaving a performance margin for "aftermarket drift."

Q1: For a workshop ordering this kit in bulk, what is the typical failure rate of the half-ball valve seat in the first 1,000 operating hours if installed correctly?
A: In field service records from Australian and Nordic workshops, correctly installed half-ball components from this kit show negligible seat erosion before the 2,500-hour mark, provided fuel filtration meets the OEM 5-micron standard. Bulk buyers often see warranty return rates under 0.8% across 100-unit orders, with most returns traced to external contamination rather than component metallurgy.

Q2: Does the 095000-6244 share the same nozzle protrusion height as the 095000-6241, or do we need a different compression washer?
A: The nozzle protrusion and the corresponding washer thickness are identical across the -6241 and -6244 versions. However, this kit includes the updated nozzle DLLA148P932 which has a marginally different spray-hole angle to improve combustion stability on Euro IV calibrations. The compression washer included is the correct specification for both variants.

Q3: We are a repair centre that remanufactures injectors for local agricultural customers running YD25 engines in sprayers. How does this kit perform with biodiesel blends (B20 and above)?
A: The command piston and guide plunger in this kit feature a surface treatment that resists the increased acidity and higher water content associated with B20 blends. Agricultural users in Germany and the Netherlands report consistent leak-off volumes below 25 ml/min after 500 hours of operation on B20, compared to 35 ml/min on generic aftermarket kits.

Q4: Can we use this kit to rebuild an injector that has already been previously overhauled with a non-DENSO valve group?
A: We strongly advise against mixing component sources. If the injector body previously received a non-DENSO control valve or aftermarket shims, the wear pattern on the housing bore may be irregular. In such cases, a new valve seat from this kit may not achieve the correct mating lapping geometry. Inspect the bore for stepped wear before proceeding; if visible, the injector body should be replaced.

Q5: What is the lead time impact if we order 50 units of this repair kit for a scheduled fleet rebuild project?
A: For bulk orders of 50 or more, we typically ship within 3 business days from the regional warehouse. Fleet rebuild projects involving multiple YD25 injectors often benefit from batch coding-each kit carries a lot number on the inner seal, allowing the workshop to trace any performance anomalies back to a specific production batch, which simplifies quality auditing for commercial contracts.

Q6: How do we confirm that the included shim pack covers the full spread of IQA adjustment ranges for high-mileage injector bodies?
A: The shim assortment in this kit covers the full factory calibration spread of ±16% on the IQA (Injector Quantity Adjustment) code. High-mileage injectors with significant plunger wear may require the thickest shim in the set to restore stroke length. We recommend recording the pre-disassembly stroke measurement; if it exceeds the maximum shim compensation, the body itself is likely beyond the serviceable wear limit.
