DENSO 295050-2400 (4336862) Injector Overhaul Kit – Direct Workshop Replacement Solution

For diesel service operations that routinely handle high-mileage commercial fleets and off-highway equipment, the DENSO 295050-2400 repair bundle (OE reference 4336862) stands as a calibrated response to declining injector performance. Rather than committing to complete new unit purchases, this kit enables shops to reclaim near-factory spray characteristics through targeted replacement of hydraulic-circuit wear members. It addresses the cumulative effects of micro-abrasion and thermal cycling that gradually distort fuel delivery precision, offering a cost-conscious path to restoring engine response, fuel economy, and emissions compliance across a broad spectrum of DENSO-fed powertrains.

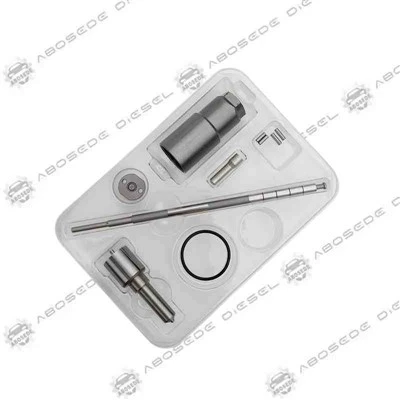

Inside the DENSO 295050-2400 service package, workshops receive a matched set of interdependent components engineered to specific surface-finish and hardness parameters. The DLLA series needle-and-nozzle pair features lapped bearing surfaces with sub-micron concentricity, critical for maintaining the sac volume and spray-hole flow coefficients under sustained injection pressures. The control piston and its mating spill valve sphere undergo chrome-nitriding treatment to resist pitting from water-in-fuel episodes, while the return spring is shot-peened to retain consistent preload across temperature swings. Calibration shims of varying thicknesses are supplied to re-establish the hydraulic balance between the command chamber and the nozzle spring – a variable that directly dictates the start-of-injection point. Importantly, the kit includes the high-pressure seal ring and the fuel return grommet, both manufactured from hydrogenated nitrile butadiene rubber (HNBR) to endure prolonged exposure to low-sulfur diesel formulations without excessive swelling or compression-set failure. Each component is binned by DENSO's internal quality grades, meaning the replacement parts mirror the original factory tolerances; this is particularly relevant for the orifice plate, whose laser-drilled apertures govern the pilot-fuel quantity that shapes combustion noise.

This overhaul solution is gated exclusively to injectors bearing the 295050-2400 base casting, which appears predominantly in medium-duty Isuzu N-Series trucks, Hino 300 utility vehicles, and certain John Deere power modules used in forestry and material-handling contexts. Beyond on-road applications, the 4336862 cross-reference unlocks compatibility with Yanmar marine auxiliary diesels and Kubota genset packages where the same injector body architecture is employed under different OEM branding. Operators of wheel loaders and telescopic handlers will recognize this kit as the designated fix for gradual power fade and excessive exhaust gas temperature (EGT) readings, both symptomatic of dribbling or asymmetrical nozzle wear. However, precise substitution demands that the rebuilder cross-verifies the injector serial suffix – a four-character alpha-numeric stamp adjacent to the main part number – because DENSO implemented a running change in the needle lift dimension during production. Shops servicing mixed fleets should maintain a cross-reference log to avoid installing this kit on earlier 295050-2400 variants that used a shallower valve-seat angle, which would alter the injection rate-shaping profile and cause misfire under heavy lugging conditions.

Approaching the DENSO 295050-2400 rebuild demands a controlled-environment workflow, as common-rail clearances often fall within the 2–5 micron range – susceptible to invisible foreign particle damage. After decoupling the solenoid stack from the hydraulic base, technicians must employ a dedicated hold-down fixture to extract the nozzle retaining cap, avoiding burr formation on the thread crests. The old control piston should be withdrawn using a magnetic retrieval tool rather than mechanical prying, preserving the bore's virgin surface finish. Prior to seating the new valve body, a flushing cycle with filtered calibration fluid (viscosity 2.5–3.5 cSt at 40°C) is recommended to evacuate any accumulated lapping compound or carbon sludge from the high-pressure galleries. When torquing the new nozzle nut, the procedure deviates from generic two-step methods: a first pass to 25 N·m, followed by a 180° angular advancement, then a final verification of needle lift using a dial gauge adapted to the injector body – this ensures that the command piston travel stays within the 0.18–0.22 mm service limit. Shops must also pay attention to the leak-off connector O-ring seating; improper insertion leads to external seepage that mimics injector internal failure, wasting diagnostic time. After mechanical closure, the injector should undergo a pop-test at 200 bar to observe the return-flow pattern before ECU reinstallation, as this step catches pinched seals or misaligned shims before they affect the whole fuel rail.

Adopting the DENSO 295050-2400 kit shifts the workshop's economic model from component replacement to precision restoration, directly attacking the three principal degradation mechanisms in high-pressure injection: nozzle coking from incomplete combustion, plunger scoring due to insufficient lubricity in modern fuels, and control-chamber leakage that extends injection dwell. By rectifying these faults, the service reduces rail-pressure fluctuations that otherwise force the pump into continuous compensation mode, shortening the high-pressure pump's service interval. For a repair facility, this represents not just a parts sale but an opportunity to build recurring maintenance relationships – fleets appreciate the transparent approach of refurbishing a $1,200 injector with a $280 kit that delivers measurable results in idle stability and throttle responsiveness. Moreover, the rebuilt injector, when properly coded, returns fuel consumption to within 2% of the original factory map, a critical metric for logistics operators bidding on fuel-sensitive contracts. The kit also mitigates the risk of secondary component failure, such as fractured valve springs that shed metal fragments into the rail, contaminating the entire fuel system and triggering a costly cascade of pump and line replacements. In an aftermarket increasingly squeezed by OEM price hikes, stocking and correctly applying this repair solution offers diesel shops a defensible margin while supporting the circular economy ethos of remanufacturing over scrapping.

Q1: How does the nozzle spray-hole count differ between this 295050-2400 kit and a generic aftermarket alternative?
A: The DENSO-origin kit maintains the exact 7-hole tapered geometry with a specific K-factor (flow coefficient) required for the 150° cone angle. Generic alternatives often alter the sac volume, which shifts the injected mass per millisecond and leads to visible white smoke during cold starts – a clear indicator of improper droplet-size distribution.

Q2: Can I fit this kit without removing the injector from the cylinder head if I work in a mobile service van?
A: Not advised. The nozzle retaining nut requires precise angular tightening that is physically unachievable with the injector in-situ due to clearance restrictions and the need for a clean-room environment. Any attempt risks cross-threading or debris falling into the combustion chamber.

Q3: Does the 4336862 reference imply any differences in the solenoid winding resistance compared to the older 295050-2300 kit?
A: No – the solenoid stack remains unchanged. The 4336862 designation solely relates to the hydraulic cartridge dimensions. However, we always recommend measuring the coil resistance (typically 0.8–1.2 ohms) during overhaul to rule out thermal breakdown before reassembly, as this is not part of the kit.

Q4: What is the expected shelf-life of the elastomeric seals inside this unopened package?
A: Under cool, dry storage (below 30°C and away from ozone sources), the HNBR seals retain their mechanical properties for up to 36 months. Beyond that period, the glass-transition temperature shifts, potentially causing the rings to harden and fail the initial pressure-hold test after installation.

Q5: If the engine runs rough after rebuilding all six injectors with this kit, what sequence should the diagnostic path follow?
A: Prioritize verifying the QR compensation code entry – a common oversight. If codes are correct, inspect the fuel return line for air entrainment. Finally, compare the idle fuel-correction values on your diagnostic scanner; deviations exceeding ±3 mg/stroke indicate a possible mismatch of the provided shim thickness, requiring a re-shimming iteration.

Q6: How do I dispose of the old components from this kit in compliance with EU waste regulations?
A: The spent steel parts (nozzle, piston, springs) are classified as ferrous scrap and can be sent to certified metal recyclers. The used seals, however, must be treated as contaminated elastomeric waste – many parts suppliers offer a core-return program where you ship back the old cartridge for certified destruction and receive a discount on your next kit purchase.
