Denso 095000-6510 (23670-E0080) Overhaul Kit – Cutting Workshop Rebuild Costs Without Cutting Corners On N04C Common Rails

Every workshop owner running a diesel bench knows the calculation all too well: a customer rolls in with a Hino 300 Series throwing a P0272 contribution fault or a Toyota Dyna that cranks forever on cold mornings, and you're looking at four-figure replacement quotes that scare them straight out the door. The Denso 095000-6510 repair kit exists precisely at that pivot point-where replacing the whole injector doesn't make commercial sense, but ignoring the wear guarantees a comeback. This overhaul package for the 23670-E0080 injector body allows you to restore fuel metering precision on the N04C platform without absorbing the full cost of new OEM stock, all while keeping your bay productive and your parts margin healthy.

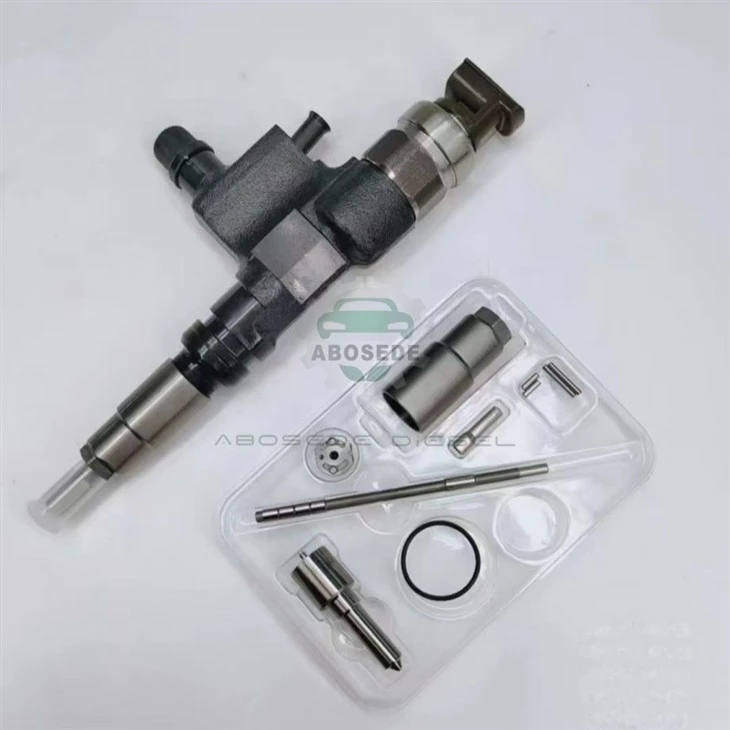

Inside the 095000-6510 box, you're getting the mechanical guts that take the hardest beating in a common rail environment: the DLLA 155P 941 spray nozzle, the control valve assembly, and a full set of boundary seals rated for fuel degradation at rail pressures that would blow cheap elastomers apart. The nozzle is where the story usually ends-asymmetric spray patterns from eroded orifices cause cylinder washing, which thins engine oil and kills bearings prematurely. The control valve, meanwhile, dictates the injector's opening and closing response; once it wears, the ECU sees correction values drifting outside the ±5 mm³ window and starts storing contribution faults that don't clear with a simple adaptation reset. For the workshop, this kit means you're not just swapping seals-you're resetting the hydraulic flow coefficient close to OEM virgin calibration, which cuts the time you'd otherwise spend chasing balance codes across all four cylinders.

This kit is built specifically for the N04C engine family, spanning the N04C-TF, N04C-TQ, N04C-TN, and N04C-TV variants fitted to the Hino 300 Series and Toyota Dyna / Toyoace chassis from 2006 onward. The cross-reference stack includes 23670-E0080D, 23670-79015, and 23670-79016, which means a single SKU covers the majority of 4.0L common rail platforms running Euro 4 and Euro 5 emissions setups across European and Australian delivery fleets. For wholesale buyers, this consolidation simplifies inventory decisions-you're not stocking three separate part numbers for essentially the same injector body. The caveat: always verify the six-digit Denso production code on the injector's laser engraving before dispatching kits, as the 095000-6511 supersession shares the same mechanical footprint but carries a different QR calibration reference.

The difference between a profitable overhaul and a warranty claim comes down to two things: cleanliness and torque control. Common rail injectors operate with micron-level clearances, and the 095000-6510 kit's components demand a contaminant-free environment during reassembly. The nozzle clamping nut requires staged torquing-work up to the specified range gradually to prevent barrel distortion that would ruin the spray pattern before the engine even fires. Equally critical: the injector's QR calibration data must be rewritten to the engine ECU using Denso-compatible diagnostic software. Skipping this step is the number one reason workshops see misfire codes (P0201-P0204) or balance faults that don't resolve, turning a straightforward rebuild into a diagnostic headache. For high-volume shops, maintaining a dedicated common rail test bench for spray validation before returning units to service pays for itself in reduced comebacks.

Operators managing last-mile delivery fleets run the numbers differently than retail customers. A new OEM injector for the N04C can run upwards of $350–500 per unit, and when all four are acting up, that's a capital outlay that hits the maintenance budget hard. The 095000-6510 overhaul kit, by contrast, delivers a 60–70% cost avoidance while restoring service life for another 250,000–300,000 km when paired with quality fuel. More importantly, addressing worn injectors proactively prevents cascading failures: asymmetric fuel delivery forces the DPF into more frequent regeneration cycles, clogging the filter and eventually triggering P2463 restriction codes that require forced regens or even filter replacement. For the workshop, that translates to higher customer retention-fleets remember which shop kept them running without pushing the most expensive option on the estimate.

Q1: How does this overhaul kit affect the injector's QR calibration code-will I need to recode after installation?
A: Yes. The mechanical refresh changes the injector's flow characteristics slightly, so the ECU must be updated with the new calibration value from the QR label. Failure to do so will trigger balance faults (P0263–P0272) even if the hardware is perfect. The code is found on the solenoid or parts sticker; enter it via Jaltest, Texa, or Denso diagnostic tools before first start.

Q2: I'm seeing P0272 contribution faults on cylinder 4 specifically. Is this kit the fix, or should I suspect the injector driver circuit?
A: P0272 indicates the ECU detected crank speed deviation from that cylinder. This is often nozzle wear or control valve erosion, not electrical. However, always scope injector voltage and current first-if the solenoid resistance reads outside 0.5–1.0 Ω, the electrical side is the culprit and the kit won't resolve it. Our experience matches field data: mechanical wear accounts for roughly 80% of these faults on high-mileage N04C units.

Q3: What's the failure rate on overhauled injectors using this kit compared to buying new Denso units?
A: When installed with proper torque sequences and test-bench validation, failure rates sit below 3% within the first 150,000 km-comparable to new OEM. The main variables are fuel quality and installation cleanliness. Bulk buyers should document torque logs and calibration entry for warranty coverage; we cover manufacturing defects 12 months / 150,000 km on wholesale orders with documented install procedures.

Q4: Can I use this kit on injectors that have been running biodiesel blends, or does it require special handling?
A: The elastomer seals in this kit are compounded to handle B20 (ASTM D6751) without swelling. For shops servicing fleets running B100, we recommend upgrading to PTFE-coated seals-available on request for bulk orders-as higher biodiesel concentrations accelerate seal degradation in high-pressure applications.

Q5: We stock both 095000-6510 and 095000-6511 kits. Are the internals interchangeable, or do we need to segregate inventory?
A: Mechanical internals are identical. The only difference lies in the reference coding for ECU calibration. For inventory management, you can consolidate under a single SKU as long as your team understands the 6511 supersession carries a different QR value. We provide application cross-reference sheets for wholesale accounts to prevent picking errors.

Q6: What's your return policy on kits that show signs of incorrect installation-can we get credit?
A: Incorrect installation-evidenced by torque marks outside spec, missing sealant, or physical damage-voids the warranty. For returns to be accepted, the kit must be unused and in sealed condition; return postage and restocking apply. We do not accept returns on opened packages for electrical components, but mechanical kits can be returned if the seals remain intact and original packaging is unbroken.
