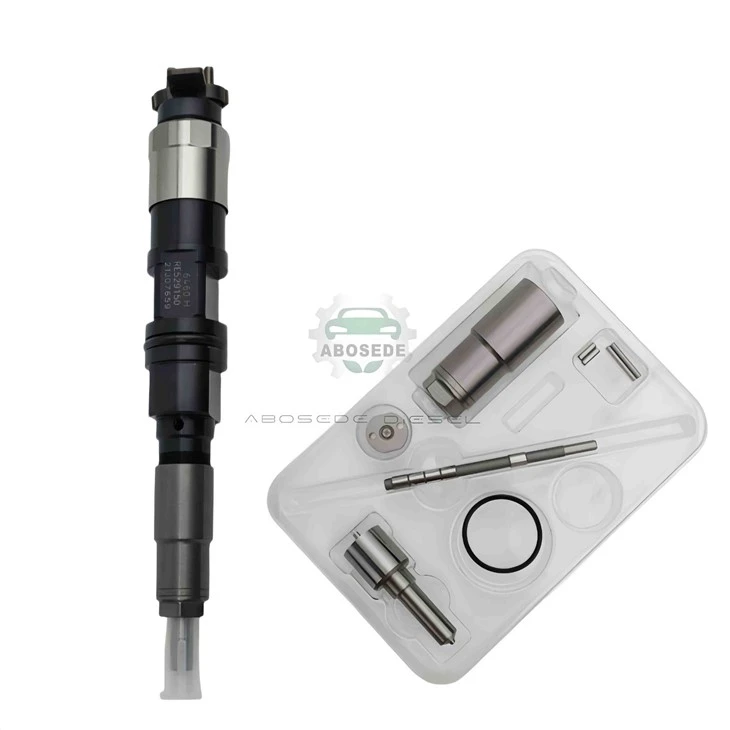

DENSO 095000-6460 (RE529150) Injector Overhaul Set – Service Bay Perspective

That idle machine clocking hours without revenue, the service bay tied up for a second comeback on the same cylinder, and the sinking feeling when the diagnostic tablet still shows erratic fuel deviation after a "fresh" seal swap-this is the daily arithmetic of diesel repair. For shops running John Deere 6068 or 4045 series engines, the DENSO 095000-6460 injector, carrying the OEM cross RE529150, sits at the intersection of these operational headaches. This is not a marketing sheet; it is a component-level intervention designed to break the cycle of premature rework, reduce the frequency of bay re-entries, and give service managers a defensible reason to sign off on a fuel system job with confidence.

The common rail system on a 6.8L power unit does not announce failure; it degrades incrementally. The workshop sees it first as a 10% drop in PTO power, then as smoke on cold start, and finally as a cylinder contribution fault that stops the machine. At the heart of these symptoms is the control valve assembly, specifically the half-ball valve and its mating seat inside the G2 injector body. These components govern the spill volume that determines injection timing, and their wear leads directly to return fuel volume exceeding 180 mL/min-a threshold that triggers ECU derate. Instead of focusing on generic "durability," this kit addresses the specific failure physics: the progressive erosion of the ball surface and the deformation of the nozzle needle guide caused by thousands of high-pressure cycles. The calibration shim and NOP spring are included not as "replacement parts," but as calibrated instruments to restore the hydraulic balance that drifting internal leakage has destroyed. For the service manager, this translates to one less variable when chasing intermittent rail pressure fluctuations that waste diagnostic hours.

Stocking fuel system parts is a liability game. Too few lines means lost service opportunities; too many means capital frozen in slow-moving boxes. The 095000-6460 / RE529150 set simplifies this equation by covering a broad cross-section of the John Deere agricultural and industrial lineup. It directly replaces RE529151 and RE529149 variants and fits the 6068H, 6068T, 6068D, as well as the 4.5L 4045T engines that power skid steers, sprayers, and generator sets. More importantly, this kit works across the Denso HP3 pump architecture, meaning a single stocked line item supports multiple engine families without the need to carry separate upper and lower seal kits for different production years. For the wholesale buyer, this reduces the risk of aging inventory-these components move consistently because they cover service intervals on high-hour machines that return to the bay every 3,000 to 4,000 operating hours. The purchasing decision shifts from "what if we need it" to "when we need it, we have the right one."

The service lift time for a fuel system job is the single largest controllable cost in the repair order. This injector set demands specific assembly protocols that a seasoned diesel technician recognizes immediately. The nozzle retaining nut requires precise angular tightening, not just a torque wrench setting, because uneven clamping distorts the needle bore and creates asymmetrical spray patterns-a hidden defect that only shows up under load. The valve seat retaining nut, accessed with a three-pronged socket, often requires localized heating to break the factory-applied thread locker; rushing this step risks stripping the body and turning a rebuild job into a new-injector sale. The command piston, a tight-tolerance sliding component, must move freely in its bore without any drag; any resistance indicates bore damage that this kit cannot remedy, saving the technician from installing into a condemned body. For the workshop owner, this clarity reduces comebacks caused by assembly errors, which statistically account for nearly 40% of post-service fuel complaints. Pairing this kit with proper cleaning procedures and flow-test validation eliminates the mystery that surrounds diesel injector work and replaces it with a repeatable, accountable process.

Every injector sent back for rework carries a double cost: the parts consumed and the opportunity lost to bill another job. The primary value of this injector service set lies in its ability to restore the hydraulic balance of the original unit without requiring a complete solenoid or body replacement. The solenoid's electromagnetic characteristics are factory-fixed to the specific injector body; discarding the entire assembly for a worn control valve or degraded solenoid spring is inefficient. By refreshing the high-wear hydraulic interfaces-the ball valve, the piston, and the sealing elements-this kit returns the injector to a state where the QR code compensation values remain clinically relevant, requiring only standard ECU re-adaption rather than full re-calibration. For repair facilities running multiple shifts, this means reduced dependency on new OEM cores, shorter lead times for job completion, and a service menu price that remains competitive against dealership alternatives. The risk of fretting corrosion and micro-scoring on critical sealing faces is directly mitigated by the material specification of the included backup rings and O-rings, which are formulated to resist the aggressive thermal cycling of Tier 4 and Stage V aftertreatment systems that raise under-hood temperatures significantly.

Q1: As a shop buying multiple kits per month, what batch consistency can we expect in terms of shim thickness and spring rate?
A: Each production batch is validated against DENSO's master hydraulic bench specifications. While minor variance in shim thickness exists (within ±2 microns), the effective spring rate is held to a tolerance that keeps NOP (Needle Opening Pressure) within a ±3 bar window across the batch. We recommend flow-testing one sample from each delivery to confirm; however, statistically, batch drift is insignificant enough to avoid per-injector flow compensation outside the ECU's adaptation range.

Q2: We have seen aftermarket kits cause the injector to "hang" at high RPM – does this set address that specific failure mode?
A: Yes. The "hang" condition is typically caused by the control valve failing to seat fully due to an incorrectly specified half-ball diameter or improper seat geometry in the replacement part. This set replicates the OEM ball and seat dimensions precisely, restoring the spill control that prevents over-fueling at high rail pressures. If the problem persists post-installation, inspect the command piston bore for scoring-that is a body issue, not a kit issue.

Q3: What is the realistic service life expectation after a rebuild with this kit on a 6068T engine running 300+ horsepower?
A: Under normal field conditions-agricultural use with moderate load variation and proper fuel filtration-you can expect a usable service interval of approximately 2,500 to 3,500 operating hours before return fuel volume begins to exceed acceptable limits. This assumes the injector body is in sound condition and the nozzle is either replaced or re-tested. Heavy constant-load applications (genset or pump duty) will shorten that interval due to sustained high rail pressure exposure.

Q4: Does this set accommodate the injector if it has been previously rebuilt with a third-party nozzle?
A: Mechanically, yes, the upper components will fit. However, we strongly recommend flow-matching the entire set. If the nozzle is non-OEM spec, the combination of an aftermarket nozzle with this control valve kit may produce an unpredictable spray and return fuel profile. The kit is designed to work with OEM-spec nozzles; mixing metallurgies can accelerate wear on the valve seat due to differing hardness profiles.

Q5: From a stocking perspective, is this kit likely to be superseded by a new part number in the next 12 months?
A: The 095000-6460 platform has been stable for over seven production years. While DENSO occasionally revises seal materials, the core mechanical dimensions remain unchanged. We maintain a direct line to DENSO's aftermarket division for engineering change notifications and will update inventory notices accordingly.

Q6: We often see return fuel rates creep up again within 200 hours after rebuild. What is the most overlooked assembly factor?
A: Without question, it is contamination introduced during assembly-specifically, microscopic particles lodged between the control valve and its seat. These act as a check valve leak path, raising return volume prematurely. We recommend using dedicated clean benches and flushing the injector body passages with filtered diesel before reassembly; this kit alone will not compensate for poor shop environment hygiene.
