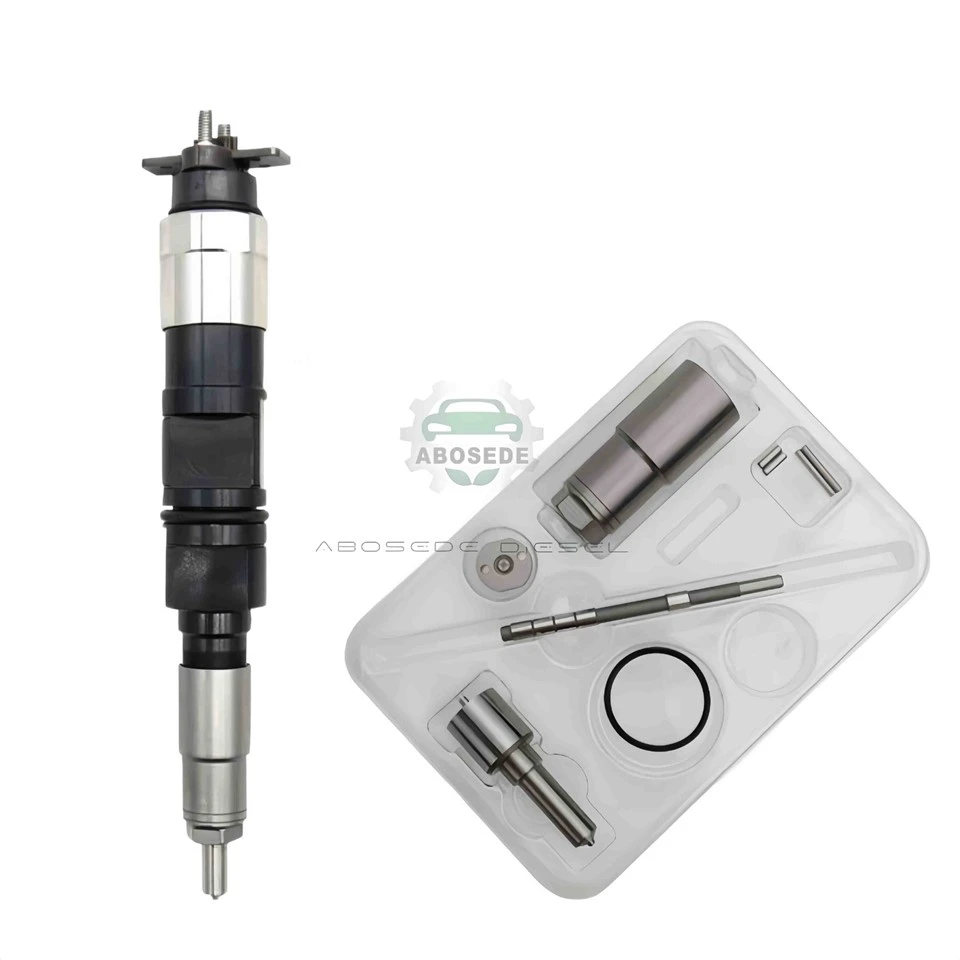

Denso Injector Service Kit 095000-6500 | OE Interchange RE529117 For John Deere 4045/6068 Common Rail

Precise fuel delivery defines the operational envelope of contemporary diesel power units, and the solenoid-actuated injector from Denso remains a cornerstone within agricultural and off-highway segments. Offered here is the Denso repair kit configuration mapped to DENSO part number 095000-6500 and its widely recognized OE cross-reference RE529117-an injector variant deeply integrated into the John Deere 4.5L and 6.8L engine families. This assembly dictates the entire injection sequence within high-pressure common rail architectures, directly influencing combustion stability, torque delivery, and exhaust aftertreatment compatibility. For workshops encountering irregular idle patterns, visible black plumes under load, or progressive power degradation across the rev range, this unit provides a root-cause intervention rather than a superficial fix for deteriorating fuel system health.

The Denso 095000-6500 injector finds its primary deployment across the John Deere 4045 and 6068 powerplants, specifically those manufactured during the Tier 3 regulatory window from the mid-2000s onward. Beyond conventional row-crop tractors, this component supports a diverse equipment roster including 1070D and 1170E combine harvesters, alongside the 6R and 7R utility tractor ranges-models such as 6230, 6330, 6430, 6530, 6630, 6830, and 6930 all rely on this injector configuration . In both North American and European aftermarket channels, this part ranks among the most frequently rotated service items given the accumulated operating hours logged on these platforms. However, while the mechanical envelope remains consistent across variants, internal calibration shims-which govern needle lift and idle fuel quantity-remain application-specific. An injector calibrated for a 6068 application must retain identical shim stack arrangements to preserve factory delivery rates across transient load conditions.

This injector operates as a solenoid-actuated unit engineered for rail pressures inherent to HPCR (High Pressure Common Rail) fuel systems. It deviates from universal commodity injectors through precisely defined flow coefficients and internal lift characteristics that are bound to specific engine mappings. The OE pedigree is established through multiple cross-reference conduits, prominently featuring John Deere part numbers RE529117, RE546782, and RE529414 . Within the independent aftermarket, this variant-often cataloged as AP52906-is distinguishable by its dedicated control valve geometry and nozzle assembly, both of which shape the injection rate profile. Overlooking these cross-reference validations during procurement invites calibration discrepancies that disrupt ECU fuel trim adaptations. A QR code laser-etched onto the solenoid top provides another layer of identification; this Denso innovation enables precise injector coding to the engine control unit, a mandatory step for aligning pilot injection timing and main injection duration with the ECU's internal maps.

A methodical approach to fitting and torque management directly determines the success of any common rail service intervention. Cleanliness ranks as the overriding imperative-microscopic debris introduced during handling can score the command piston or compromise the sealing integrity of the half-ball valve, leading to internal leakage and unstable rail pressure . Before positioning the new unit, technicians must verify that the injector bore within the cylinder head is free from carbon deposits and that old copper sealing rings have been entirely extracted. Mechanical loading must be applied exclusively to the designated clamp or yoke surfaces; loading the solenoid body invites misalignment and internal strain. The high-pressure connector and the retaining nut for the valve seat demand specific tightening sequences and torque values-specialized adapters like the triple-bit socket are often required to avoid damaging these fasteners . A practice that separates professional rebuilds from routine swaps involves mandatory replacement of the nozzle nut and all sealing rings, as these endure substantial thermo-mechanical cycling and are engineered as single-use components. Post-installation, the QR code data must be entered through the diagnostic interface, allowing the ECU to apply cylinder-specific correction factors that balance fuel contribution across all pots.

Escalating OEM replacement costs and diminishing new-stock availability for Tier 3 machinery have elevated the repair segment to critical status within diesel service operations. Nevertheless, refurbishing these injectors extends well beyond basic cleaning and seal renewal. Independent failure analysis consistently identifies wear on the valve seat and control valve surfaces as predominant failure modes, often accelerated by marginal fuel lubricity or cavitation effects at elevated rail pressures . The needle washer thickness adjustment-essential for restoring idle fuel delivery accuracy-demands specialized grinding fixtures and a calibration bench capable of resolving delivery rates in milligrams per stroke . A competent rebuild integrates replacement of components exhibiting sub-surface deformation, including the upper spring and tension shim, which directly affect dynamic response. Supplying a repair kit that aligns with these specifications offers an economically sound alternative, restoring the injector's ability to stabilize injection quantity and reduce excessive return fuel volumes-the latter being a frequent contributor to hot-start difficulties and derated output under sustained fieldwork.

Q1: How do I verify whether the 095000-6500 injector suits my 4045 engine before ordering?
A: Confirm that your engine falls within the Tier 3 production period, roughly 2005 onward, and carries the HPCR S350 designation. Cross-check the stamped number on your existing injector; if it matches RE529117 or SE501927, this unit is directly compatible .

Q2: Does skipping the QR code entry during installation cause any immediate operational issues?
A: Yes. The QR code encodes individual trim data that the ECU relies upon to adjust energizing time per cylinder. Omitting this entry leads to uneven fuel distribution across cylinders, often triggering diagnostic trouble codes and causing rough running within the first operating cycle .

Q3: Can this injector be utilized in a 6.8L 6068 engine from a 7330 model tractor?
A: Absolutely. The 7330 employs the 6068 platform, and OE fitment data explicitly lists RE529117 for this model, along with the 7130, 7230, and other 6R-series tractors sharing the same engine architecture .

Q4: What determines whether a returned core is rebuildable versus scrap material?
A: Internal inspections focus on the valve seat and control piston guide bore. If the guide plunger exhibits seizure marks or the control valve shows scoring beyond minimum clearance tolerances, the injector body cannot be reliably restored and must be discarded .

Q5: What electrical reading should I expect from a healthy solenoid on this model?
A: The G2 solenoid typically measures between 0.5 and 0.7 Ohms across the terminals. Measurements outside this band, particularly a short to ground, indicate that the solenoid winding is degraded and requires replacement rather than simple cleaning.
