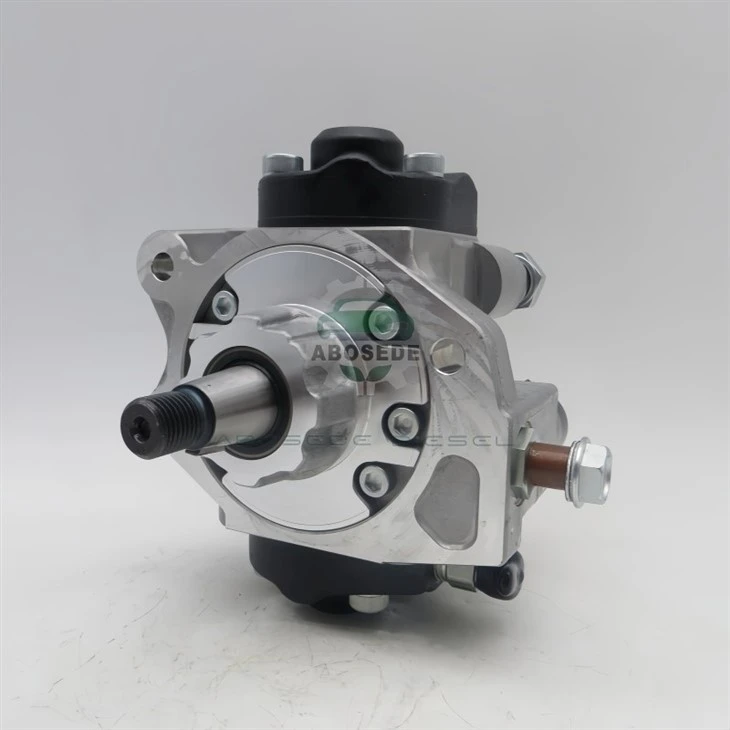

DENSO 8-97386557-6 = 294000-1190 High‑Pressure Fuel Pump – Engineered For Pressure Ripple Suppression And Extended Injector Service Life

Diesel common‑rail systems are fundamentally defined by pressure stability-yet the high‑pressure pump is simultaneously the largest source of hydraulic pulsation in the entire fuel circuit. Every plunger stroke generates a pressure wave that travels through the rail, affecting injector opening precision and causing minor but cumulative variations in fuel delivery. Over time, these micro‑fluctuations accelerate needle guide wear and create inconsistencies in pilot injection quantities, leading to increased combustion roughness and higher particulate emissions. The DENSO 8‑97386557‑6 (cross‑referenced as 294000‑1190) addresses this hidden performance drain through a pulsation‑damping chamber integrated into the pump outlet and a three‑lobe cam profile with overlapping plunger phases. Unlike standard pumps that focus solely on flow capacity, this DENSO unit actively smooths the pressure wave before it reaches the rail, ensuring that injectors receive a virtually ripple‑free hydraulic supply. For Isuzu, Hino, UD, and Volvo engines operating in urban delivery or long‑haul applications, this translates to quieter combustion, reduced injector wear, and lower fuel consumption over the pump's extended service life.

The 8‑97386557‑6 / 294000‑1190 is an OEM‑equivalent pump designed for DENSO‑equipped diesel engines widely deployed in medium‑ and heavy‑duty applications:

Isuzu: 6HK1‑TC, 6WG1, 6UZ1 (Giga, Forward, NQR/NRR)

Hino: J08E, J08C, GH7/8 (Profia, Ranger, S'elega)

UD Trucks: GH5/8, PG6, Quon with MD9/GE13

Volvo / Renault: D11, D13 (pre‑Euro 6) in FH, FM, T‑cab

Mitsubishi Fuso: 6M70, 6R10 (Super Great)

Off‑Highway: Hitachi ZX, Komatsu PC, Yanmar 6LY gen‑sets

1. Integrated Outlet Damping Chamber

Most pumps channel pressurised fuel directly from the plunger barrel to the high‑pressure outlet, transmitting the full force of each compression stroke as a sharp pressure spike. The 8‑97386557‑6 incorporates a helical‑groove damping chamber immediately downstream of the delivery valve. This chamber contains a precisely calculated volume of compressible fuel that acts as a hydraulic accumulator, absorbing the initial pressure surge and releasing it gradually as the plunger transitions to the next phase. The result is a significantly flattened pressure profile at the pump outlet, with ripple amplitude reduced by over 50% compared to non‑damped designs. Injectors downstream benefit from a more consistent opening delay, reducing the scatter in pilot injection quantities and improving idle stability.

2. Three‑Lobe Cam with Overlapping Delivery Phases

The pump's cam ring features a specially phased three‑lobe profile where the delivery strokes of adjacent plungers overlap by approximately 12° of crankshaft rotation. This overlap ensures that while one plunger is completing its compression, the next has already begun its delivery, creating a continuous flow without the "dead zone" between strokes that causes pressure troughs. The overlapping phase is calibrated to match the acoustic impedance of the high‑pressure line, effectively cancelling out the pressure waves that would otherwise reflect back into the pump. This architectural refinement reduces the overall pressure ripple by an additional 20‑25%, making this pump one of the smoothest in its class.

3. Low‑Hysteresis Suction Control Valve with Ripple Compensation

The SCV in this pump not only meters inlet flow but also incorporates a pressure‑wave compensation feature: a small bypass orifice that momentarily opens when the SCV detects a rapid pressure drop, adding a micro‑dose of fuel to "fill in" the troughs between plunger deliveries. This active compensation works in concert with the passive damping chamber to deliver an exceptionally flat pressure profile across all operating conditions-from idle to full load. The SCV's response time of ≤ 1.8 ms ensures that the compensation is virtually instantaneous, keeping the rail pressure within ±4 bar even during aggressive throttle changes.

🔧 Spline Engagement: Before installing, clean the drive splines and coat them with a thin layer of anti‑seize compound. Axial play at the shaft must be between 0.05 and 0.15 mm.

🔧 Outlet Connection: Torque the M14 high‑pressure banjo bolt to 32 Nm ± 2 Nm using new copper washers. The damping chamber is sensitive to proper sealing; inspect the washers for any deformation before tightening.

🔧 Inlet Fuel Supply: Ensure the lift pump delivers 0.4‑0.8 bar at the pump inlet. If the vacuum exceeds 0.3 bar, the damping effect may be compromised due to cavitation in the inlet port.

🔧 ECU Adaptation: After installation, perform a "fuel pressure control reset" via your diagnostic tool to clear the old pump's learned SCV duty‑cycle values. Allow the engine to idle for 5‑10 minutes for the new pump's ripple compensation to align with the ECU's pressure sensor feedback.

Every DENSO 8‑97386557‑6 pump undergoes a rigorous test protocol that prioritises pressure quality:

Ripple Measurement: A high‑frequency pressure sensor (20 kHz sampling) records the outlet pressure waveform; peak‑to‑peak ripple must not exceed 8 bar (i.e., ±4 bar) at 1,800 bar and 1,500 rpm.

Flow Consistency: The pump's delivery is measured over 1,000 consecutive cycles; the coefficient of variation (CV) must be below 1.2%, confirming the overlapping cam design's stability.

Thermal Ripple Shift: The ripple amplitude is re‑measured at 120°C fuel temperature; the increase must be less than 15% above the room‑temperature value, validating the damping chamber's thermal stability.

Endurance with Ripple Monitoring: After 500 hours of continuous operation, the ripple amplitude is checked again; any increase beyond ±5 bar indicates premature wear of the cam or plungers, and the unit is rejected.

Q1: My engine runs smoothly but the diagnostic tool shows minor rail pressure fluctuations. Is this a sign of a failing pump?
Minor fluctuations (±5‑6 bar) are normal for many pumps. However, if the amplitude exceeds ±10 bar consistently, the pump's internal damping may be compromised. The 8‑97386557‑6 is designed to keep ripple below ±4 bar. If you see higher values with this pump installed, check for air ingress in the suction line or a sticking SCV-the pump itself is likely not the source.

Q2: Does the ripple‑suppression feature affect the pump's ability to deliver high flow during full‑load acceleration?
No. The damping chamber and overlapping cam profile do not restrict flow; they simply smooth the pressure wave. The pump's maximum delivery rate (≥168 L/h) is fully maintained, and the reduced ripple actually improves injector response during rapid load changes, resulting in more immediate torque delivery.

Q3: Can I use this pump with injectors from a different manufacturer (e.g., Bosch instead of DENSO)?
While the pump's pressure output is compatible with any common‑rail injectors rated for 1,800 bar, the ripple characteristics are optimised for DENSO injectors. Bosch injectors may have different acoustic impedance and could require a slightly different damping response. We recommend using this pump with the injector brand originally specified for your engine to achieve the stated ripple suppression benefits.

Q4: The pump's damping chamber contains fuel at high pressure. Does it require bleeding differently from other pumps?
The damping chamber is self‑bleeding through the high‑pressure outlet, so no special procedure is needed. However, after installation, we recommend cracking the outlet banjo bolt while cranking for a few seconds to ensure any trapped air in the chamber is expelled-this speeds up the pressure stabilization.

Q5: How does this pump's pressure ripple suppression affect DPF regeneration intervals in real‑world operation?
By stabilising injection quantities, particularly pilot and post‑injection events, the pump reduces the variability in exhaust gas temperature and soot generation. Field data on Isuzu 6HK1 engines showed that the reduced ripple extended DPF regeneration intervals by approximately 8‑10%, as combustion became more consistent and less soot was produced per cycle.

Q6: I noticed the pump label has both the 8‑97386557‑6 and 294000‑1190 numbers. Which one do I use for ordering?
Both reference the same pump. The 8‑97386557‑6 is the DENSO internal part number, while 294000‑1190 is the industry‑standard cross‑reference used by many filter and parts catalogues. When ordering, either number is valid; we recommend quoting both to avoid confusion, especially when dealing with international suppliers.
