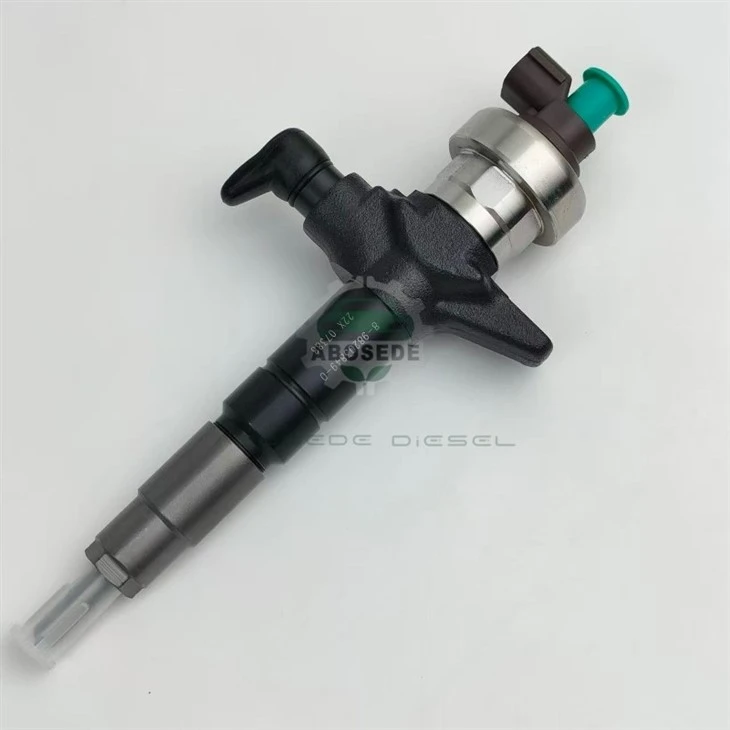

8-98203849-0 Denso Common Rail Injector For Isuzu 4JJ1

When a 4JJ1-powered D-Max rolls into the bay with a cold-start misfire and a noticeably thinned oil level, the conversation usually turns to injector replacement rather than repair. The 8-98203849-0 is the Denso solenoid injector that sits at the center of that decision. It carries the Denso factory designation 095000-8350 and cross-references to Isuzu 8-98119227-0, serving as the fuel delivery unit for the 3.0-liter 4JJ1 common rail platform . For shops that see these pickups regularly, keeping one on the shelf means avoiding the familiar delay of ordering in a single unit while a vehicle occupies a lift.

The 095000-8350 is an electromagnetic actuator injector, not piezo, which simplifies diagnostic pathways considerably. Its working rail pressure sits around 1,600 bar under normal operating conditions, and the unit weighs roughly 660 grams . The critical number for a procurement decision is not the weight or the thread pitch-it is the injector correction code etched on the body. Every genuine Denso unit carries a unique trim value that must be written into the ECM after installation. Rebuilt or unbranded alternatives sometimes ship without a readable code, forcing the installer to guess or run with a default value that produces uneven cylinder balance and a comeback within weeks. The 095000-8350's correction code is the single most important quality marker a buyer can verify before payment.

The fitment footprint is narrower than the aftermarket listings sometimes suggest. The primary application is the Isuzu D-Max I built between roughly 2007 and 2012, specifically the 3.0 DiTD variant producing 120 kW from the 4JJ1-TC and 4JJ1E4C-L engine codes . Holden Colorado and Rodeo derivatives from the same period share the architecture, which means a single shelf unit covers multiple badge-engineered inquiries. What this injector does not fit is the later 4JJ1 DPF-equipped revisions or the 2.5-liter family-those take different Denso numbers entirely. For a parts counter handling mixed fleet accounts, the practical takeaway is that 095000-8350 inventory turns fastest among shops servicing pre-2013 commercial D-Max units, not the general "Isuzu diesel" category.

The first failure mode is procedural, not mechanical. The copper sealing washer beneath the injector body is a single-use crush item; reusing it or omitting it creates a compression leak that carbon-fouls the nozzle within a few thousand kilometers. The second is the fuel line union torque. The high-pressure feed line on the 4JJ1 uses a sleeve nut that must be tightened to 29.5 N·m and never reused if the sealing face shows any deformation . More importantly, the ECM programming step cannot be skipped. The correction values on the new injector's label must be entered via a diagnostic platform capable of Denso communication. Shops that lack the tooling should either subcontract the coding or decline the job-fitting an uncoded injector produces exactly the symptoms the customer came in to fix, and the part gets blamed.

The economics of 4JJ1 injector service have shifted. When the nozzle and control valve are both worn, a Denso repair kit (nozzle DLLA152P1040 and associated seals) can restore function at lower parts cost . But the labor involved in ultrasonic cleaning, bench testing, and reassembly often erases that advantage once a shop's hourly rate is applied. The 4JJ1's common rail system is sensitive to return flow imbalance-one injector with excessive leak-off drags down rail pressure and triggers P0087 or P1093 codes that mimic pump failure . For a customer who needs the vehicle back on the road, a complete new 095000-8350 eliminates the diagnostic uncertainty that a rebuilt unit carries. Distributors who stock both the complete injector and the repair kit give their workshop accounts a genuine choice rather than a forced upsell.

Q1: The label on the old injector shows 8-98119227-0. Can I install 8-98203849-0 in its place?
A: They are cross-referenced for the same 4JJ1 applications, but verify the correction code is present and legible. Some late-production D-Max units have subtle calibration differences.

Q2: What return flow reading on a bench test indicates the injector is beyond saving?
A: Back-leakage exceeding the Denso spec by more than 20% at operating temperature, combined with a visible nozzle drip pattern, means replacement is the safer call.

Q3: Do you supply the copper washer and O-rings with each injector?
A: Genuine Denso units typically include the sealing washer. Confirm with your supplier before quoting the job, as missing seals create a second order and a delayed repair.

Q4: How can a distributor verify the correction code is genuine before stocking?
A: Request a photo of the actual injector label from the batch, not a stock image. The code format should match Denso's 4-digit alphanumeric pattern.

Q5: Is this injector compatible with the later DPF-equipped 4JJ1 engines?
A: No. DPF-era 4JJ1 units use different Denso numbers. Restrict 095000-8350 to the 2007–2012 non-DPF window.
