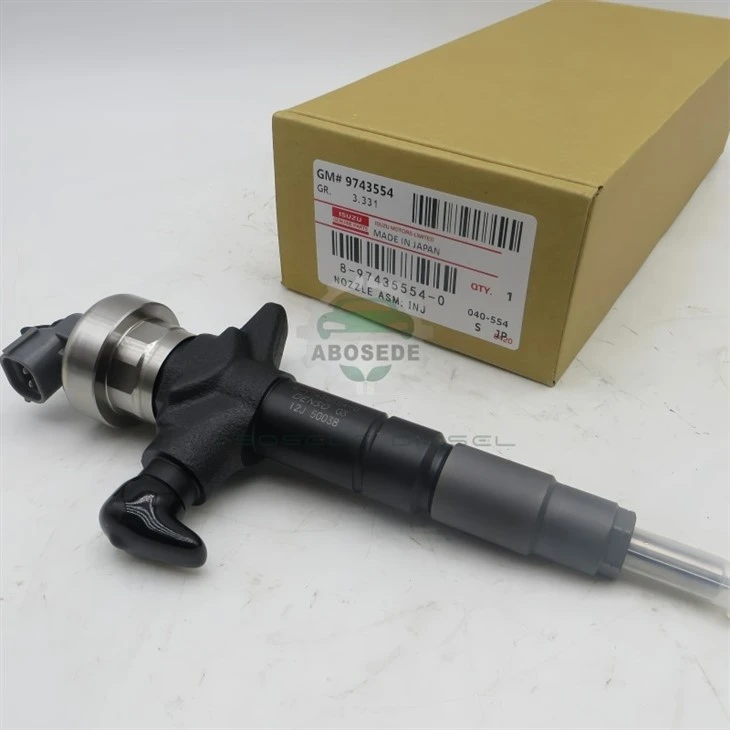

295050-2420 | 8974355540 | 8-97435554-0 Denso Common Rail Injector

This Denso common rail injector carries the primary part number 295050-2420 and OEM references 8974355540 and 8-97435554-0. It fits the Isuzu 4JJ1 3.0L diesel engine in D-Max and MU-X vehicles. The unit is brand new with no core exchange required, making it a practical choice for workshops that need a reliable replacement without handling returns.

The Denso 295050 series uses suffix variations for production updates. Numbers 295050-2421, 295050-2422, and 295050-2540 are functionally interchangeable with 295050-2420 for 4JJ1 applications . The OEM reference 8-97435554-0 converts to 8974355540, and a related OEM number 8-98317930-0 also appears in cross-reference databases for this fitment . This injector operates within a common rail fuel system where rail pressure can exceed 1,600 bar . At these pressures, internal tolerances are measured in microns, and even minor wear or contamination alters fuel delivery characteristics.

The 4JJ1-TC powers D-Max pickups and MU-X SUVs across Australia, Southeast Asia, and select European markets. This 3.0-liter four-cylinder engine produces approximately 130 kW in factory configuration . The DPF-equipped variants from 2016 onward use this injector specification; earlier non-DPF 4JJ1 engines take a different part number . Fleet operators running D-Max work vehicles represent a significant service population for this injector, particularly in regions where diesel quality and filter maintenance directly influence injector lifespan. The 4JJ1 also appears in certain industrial applications, though the automotive calibration remains the primary design intent .

Common rail injector installation demands strict cleanliness. The injector bore in the cylinder head must be free of carbon and debris before the new unit is seated . The copper sealing washer is a single-use component; stacking washers alters nozzle protrusion and disrupts spray targeting. High-pressure fuel lines should not be reused, as the sealing surfaces deform during initial torque and may not reseal properly on a second installation . After mounting, the injector code must be programmed into the ECU using a scan tool; skipping this step leads to rough running, elevated fuel trims, and warning lights . A post-installation leak-off test verifies that return flow falls within specification and confirms proper internal sealing .

A failing 295050-2420 injector typically manifests through elevated return flow or fuel dilution in the engine oil. A leak-off test provides the most direct mechanical evidence; comparing return volumes across all four cylinders reveals internal wear that correction values alone may not isolate . When one injector fails on a high-mileage 4JJ1, replacing the full set often proves more economical than addressing remaining injectors individually as they degrade in sequence . Reconditioned units carry inherent risk: internal valve seats and nozzle springs cannot be restored to original specification through cleaning alone. The economic argument for a new Denso injector rests on eliminating the diagnostic callback and labor costs associated with a premature second failure .

Q1: How do I confirm whether my customer's 4JJ1 is DPF or non-DPF before ordering?
A: Check the build date and VIN. DPF-equipped 4JJ1 engines from 2016 onward use 295050-2420; pre-2016 non-DPF variants take a different injector number .

Q2: Can I replace one injector without coding it to the ECU?
A: No. The injector correction code must be programmed for proper fuel balancing. Operating without coding causes rough idle and increased fuel consumption .

Q3: What return-flow threshold indicates replacement is necessary?
A: Leak-off volume significantly exceeding the other cylinders under identical test conditions signals internal wear. Any single injector returning noticeably more fuel than its counterparts warrants replacement consideration .

Q4: Does this injector include copper washers and return line seals?
A: No. The injector is supplied as a standalone unit. Copper washers, O-rings, and fuel line gaskets must be ordered separately .

Q5: What fuel system condition should be verified before installation?
A: Inspect the fuel filter for metal particles or water. Contaminated fuel or a failing high-pressure pump can destroy a new injector within a short operating period .

Q6: What is the typical service life expectation for this injector?
A: Condition-based, typically 150,000 to 200,000 km with clean fuel and adherence to filter service intervals. Contaminated fuel or extended filter changes shorten this significantly .
