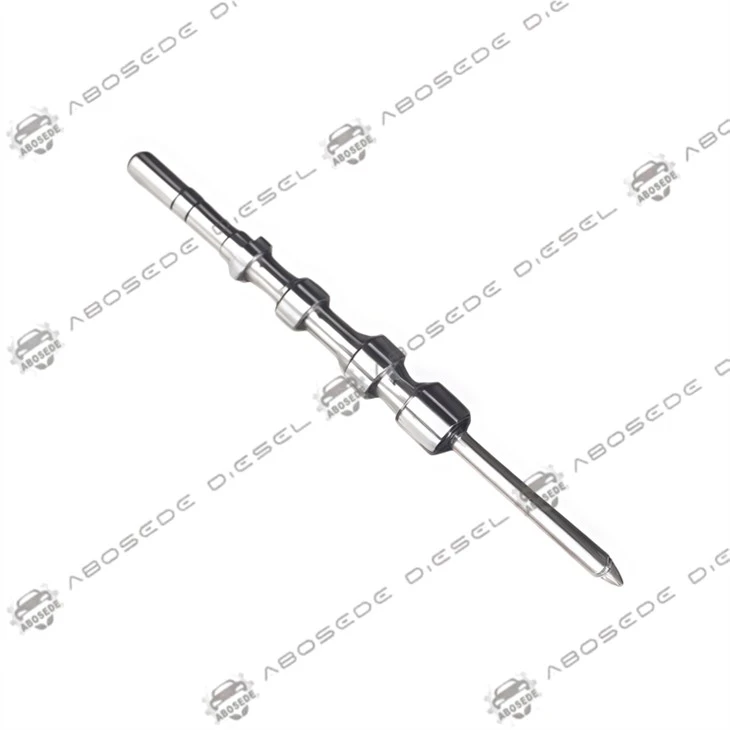

Cummins XPI Series Type II Injector Needle – Precision Metering Valve For 2500 Bar Common Rail Systems

The Cummins XPI Series Type II injector needle is the final hydraulic sealing element governing fuel atomization quality, injection timing precision, and multi-pulse combustion stability in high-pressure common rail diesel architectures. Engineered for sustained rail pressures reaching 2,500 bar, this Type II variant features revised seat geometries and advanced Diamond-Like Carbon (DLC) surface treatment that resists cavitation erosion, thermal distortion, and micro-pitting-conditions that commonly degrade injector performance in high-mileage commercial fleets and heavy-duty off-highway equipment. For diesel injection specialists and fleet maintenance managers, selecting a precision-ground needle with validated clearance tolerances is non-negotiable for maintaining ECU-coded fuel delivery accuracy and preventing costly engine derating events.

The Cummins XPI Series Type II injector needle is dimensionally matched to specific injector body calibrations within the XPI fuel system family. Primary applications span Cummins ISX15 and X15 15-liter heavy-duty platforms, ISM 10.8-liter industrial engines, and select QSX15 off-highway power units. The Type II designation distinguishes this needle from earlier CELECT and first-generation XPI variants through a modified 60° seat angle and optimized needle guide clearance-typically held to 4–6 microns-which directly influences internal leakage rates and injection quantity consistency. Cross-referencing OEM part numbers is essential: this needle serves as a direct service replacement for injector assemblies such as 4307475, 5491515, 5491531, 5572006, 4384786, 5461710, and 5491661. Always verify compatibility against your injector body ECM trim coding before ordering, as mismatched needles can produce erratic rail pressure behavior and trigger persistent diagnostic trouble codes.

In the high-stress common rail environment, the injector needle undergoes over 500 million injection cycles over its service lifespan. The primary failure modes observed in field service include abrasive wear from fuel-borne particulates bypassing secondary filtration (recommended 5-micron absolute final-stage filter), cavitation erosion at the needle seat due to rapid pressure decompression during injection events, and stiction from fuel varnishing that impedes needle lift response. Symptoms of a degraded Type II needle typically manifest as excessive fuel return flow-indicating guide clearance exceeding 8 microns, which increases internal leakage by over 20%-irregular idle stability from inconsistent pilot injection quantities, and elevated exhaust smoke during cold starts. Fleet operators in high-duty-cycle applications-line-haul trucking, mining haulage, and marine propulsion-should anticipate needle replacement intervals of 8,000–10,000 operating hours under optimal filtration, with significantly shorter service lives in regions with elevated fuel sulfur content or water contamination.

Replacing a degraded Type II injector needle offers a distinctly cost-efficient alternative to complete injector assembly replacement, particularly for high-volume rebuild shops and fleet maintenance programs. The needle is the primary wear component within the nozzle-end assembly, and its deterioration does not mandate scrapping the entire injector body, solenoid stack, or control valve group. Professional overhaul protocols require bench validation after needle installation-flow-bench testing across all operating points (TP0 idle, TP2 full load, TP3 peak torque, and TP5 pre-injection) confirms that the new needle restores factory-specified fuel delivery characteristics. Critical installation considerations include: torque nozzle cap to 70–75 N·m to ensure proper seat loading, maintain absolute cleanliness during assembly to prevent guide surface scoring, and verify armature lift shims remain within nominal 50 µm specification.

Q1: How does the Type II needle differ from earlier XPI or CELECT designs?
A: Type II incorporates a revised 60° seat angle and tighter 4–6 micron clearance. These refinements improve sealing under 2,500-bar pressures and support multi-injection strategies for Euro VI/EPA compliance. Not interchangeable with CELECT-series without recalibration.

Q2: What symptoms indicate needle replacement over cleaning?
A: Excessive fuel return flow (clearance beyond 8 microns), persistent low rail pressure codes, black smoke on acceleration, and rough idle after filter changes. Cleaning cannot restore sealing once DLC coating or seat geometry is compromised.

Q3: Is match-lapping required for installation?
A: Yes. Each needle and nozzle is manufactured as a matched set to achieve 4–6 micron clearance. Unmatched installation risks seizure or leakage. Validate against the injector body's original calibration data.

Q4: What service life can fleets expect?
A: With 5-micron absolute filtration and ULSD fuel, typically 8,000–10,000 hours (~500,000–600,000 miles) in line-haul. Severe-duty cycles (mining, marine) may reduce to 5,000–7,000 hours.

Q5: Why does needle replacement require bench testing, not just ECU recalibration?
A: ECM trim coding does not auto-adapt to a new needle. Flow-bench validation across all operating points (TP0, TP2, TP3, TP5) is mandatory to confirm injection quantities remain within specified tolerances after installation.
