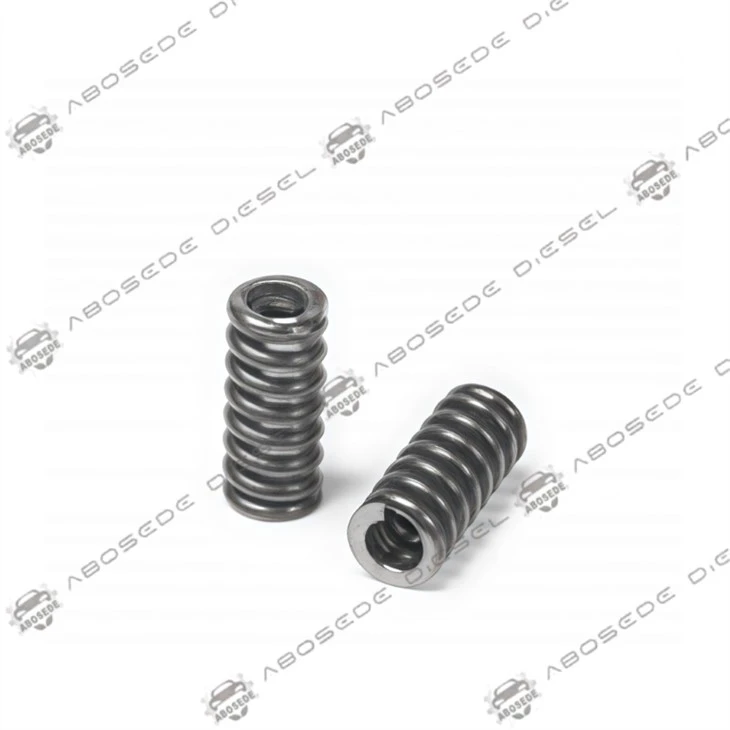

Cummins XPI Series-I Armature Preload Spring – Precision Injector Repair Component

The Cummins XPI Series - I Type Armature Preload Spring is a precision-engineered component critical to the stability and response of the XPI (Xtra-High Pressure Injection) common rail fuel system. This spring governs the armature assembly's return motion, directly influencing injection timing and fuel metering accuracy. For heavy-duty applications ranging from ISX15 to X15 engines, this spring ensures the solenoid valve closes decisively, overcoming residual magnetism and hydraulic forces to maintain consistent rail pressure and combustion quality.

The armature preload spring for the XPI Series - I injector is manufactured to stringent OEM tolerances to guarantee reliable operation under extreme conditions. Key physical parameters include a free length of 13.7 mm and an outer diameter of 9.4 mm, with an inner diameter of 7.2 mm and precisely 8 active coils . This specific geometry determines the spring force applied to the armature plate, which must be exact to ensure the solenoid valve can rapidly switch between open and closed states without delay. The spring's load characteristics are calibrated to match the armature travel adjustment shim thickness, typically around 3.00 mm, to control final seating force and prevent abnormal return flow or unstable injection behavior .

This spring is a vital component for the XPI fuel system found in Cummins ISX15, X15, and QSX15 heavy-duty engine platforms, commonly used in North American Class 8 trucks and industrial machinery . It is compatible with injector assemblies associated with OEM part numbers such as 2872405, 5579417PX, and 5633475PX, which are standard across the CM2250 and CM2350 ECM-controlled engine variants . The spring's design is specifically tailored for high-pressure common rail systems that operate at sustained pressures exceeding 2,000 bar, ensuring durability across the full temperature operating spectrum from -40°C to 175°C .

When servicing Cummins XPI injectors, installation of the armature preload spring demands meticulous attention to cleanliness and torque specifications. Before reassembly, the injector body bore and the armature core must be thoroughly cleaned to remove any carbon or debris that could affect spring movement . The spring should be seated correctly against the solenoid spring seat; any corrosion or damage to this seating surface can change the effective spring load and destabilize operation . During the stack-up process, the technician must ensure the armature plate and buffer spring are correctly aligned to prevent scratches on travel-related surfaces. While this spring does not have a direct torque setting, the hold-down bolts for the injector must be torqued precisely to 80 N·m (59 ft-lb) for models like the AP55100 series, ensuring the entire assembly, including the preload spring, functions within its designed parameters .

The armature preload spring is central to maintaining the fuel delivery accuracy of the XPI system. In modern diesel repair, failures often arise not from catastrophic component breakage, but from the subtle degradation of springs and seals . A worn or fatigued spring fails to provide adequate back pressure against the solenoid, leading to a delayed response and erratic injection quantity. This can manifest as hard starting, unstable idle, increased return fuel volume, and a drop in peak torque . Unlike mechanical injectors, the XPI system relies on these precise electromechanical interactions; therefore, replacing the preload spring as part of a comprehensive injector rebuild is essential to restoring factory performance and extending the service life of the injectors . For workshops, sourcing this spring as part of a high-quality injector repair kit ensures that the electrical and mechanical phases of injection remain perfectly synchronized, preventing premature failure of the nozzle assembly and maintaining rail pressure stability.

Q1: What is the primary function of the armature preload spring in the XPI injector?
A: It ensures the armature plate returns to its resting position quickly after the solenoid is de-energized, allowing the injector to close properly and precisely control the end of the injection event. This prevents over-fueling and maintains rail pressure stability.

Q2: How do I know if my XPI injector's preload spring is failing?
A: Symptoms include a rough idle, metallic knocking or clatter, increased smoke emissions, and specific fault codes related to cylinder imbalance (SPN 1322) or injection timing (SPN 2791) during a diagnostic scan .

Q3: Does this spring come with the complete XPI injector repair kit?
A: Yes, comprehensive XPI injector repair kits typically include this spring along with all necessary sealing consumables (FKM O-rings, PTFE anti-extrusion gaskets). It is advised to replace it as part of a full overhaul to ensure component matching .

Q4: Can I install this spring without re-calibrating the injector trim code?
A: No. After any internal component replacement that changes the mechanical stack-up height, it is mandatory to reprogram the trim code (IQA code) using Cummins Insite software to balance fuel delivery across all cylinders .

Q5: What is the expected service life for an XPI injector rebuilt with a new preload spring?
A: Under standard operating conditions with clean fuel and proper filtration, a professionally rebuilt injector can achieve 7000+ hours of stable operation .

Q6: Why is fuel cleanliness critical for this spring's longevity?
A: Contaminants in diesel fuel can abrade the spring and its seating surfaces. This wear changes the spring's load characteristics over millions of pressure cycles, accelerating failure and affecting injection accuracy .
