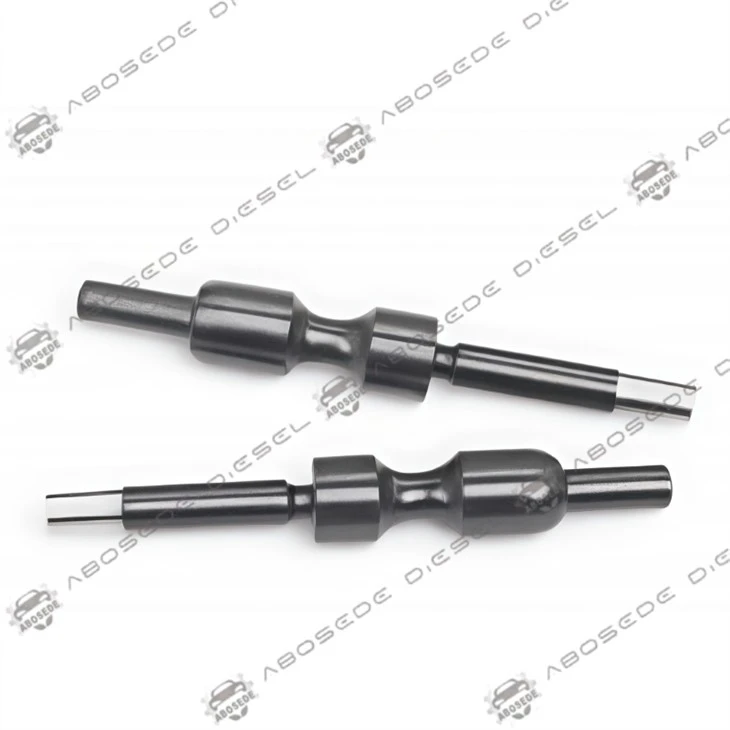

Cummins XPI Series-I Armature Core | Precision Solenoid Actuator for HPCR

The Cummins XPI Series-I Armature Core is a precision electromagnetic actuator essential to the high-pressure common rail (HPCR) injection process. As the moving element within the XPI injector solenoid valve, this component translates ECM PWM signals into micro-lift movements that govern injection timing and fuel quantification. Designed for extreme duty cycles, the armature core directly influences hydraulic pressure balance within the injector body. For diesel repair specialists and parts distributors, understanding its physical specifications and failure modes is critical for diagnosing unstable idle, uneven cylinder contribution, and excessive return flow in Cummins ISX and X15 engines.

The operational integrity of the armature core depends on strict mechanical tolerances and surface treatment. Genuine aftermarket replacements maintain OEM-spec dimensions to ensure correct magnetic flux and lift behavior. The armature lift-typically calibrated around 50 µm via precision shims-directly determines the balance between injection pressure and fuel volume. Key physical measurements include a middle diameter of 4.3 mm and end diameters of 2.2 mm for proper interface with guide and stop components. Surface treatments such as carbon diffusion hardening mitigate scuffing and preserve magnetic attraction performance. Technicians must inspect the core's seating face carefully; any scratching or wear in the mid-section compromises movement, often triggering abnormal return fuel flow and diagnostic fault codes.

This XPI Series-I Armature Core serves as a foundational service component for heavy-duty engines utilizing the Extreme Pressure Injection architecture. It is compatible with Cummins ISX15, QSX15, and X12 platforms, along with specific Scania engines using co-developed XPI fuel systems. The core integrates into injector assemblies including 4359204, 5579407, 5579409, and 5579415. For distributors serving North American and European markets, stocking this part is vital for fleets of Peterbilt, Kenworth, Freightliner, and Volvo trucks. This component addresses complaints of rough running, reduced torque, and emission failures (EPA 2010 / Euro VI) caused by compromised injection timing.

Handling the armature core during injector service demands meticulous cleanliness and precise adjustment. Within the XPI injector, the core operates within a magnetic circuit including the shim and solenoid valve spring. Misadjustment of the armature lift shim is a primary cause of post-repair failure-turning the solenoid spring screw counter-clockwise reduces injection volume, while clockwise increases it. A deviation of even 0.01 mm in seating or shim thickness drastically alters response time under 2500 bar pressures. The core must remain free of microscopic contamination to prevent sticking. Proper alignment with the intermediate body and valve group prevents high-velocity fuel erosion. Replacing this part typically requires IMA code programming to synchronize the new component with ECM fuel maps.

For repair shops and wholesale suppliers, the XPI armature core offers a cost-effective solution for systemic diesel injection failures without complete injector replacement. Over time, the core suffers mechanical fatigue and magnetic degradation, producing "hydraulic instability" where rail pressure waveforms become unpredictable. Replacing the core and recalibrating lift restores rapid response needed for multi-pulse injection strategies-specifically improving pilot and post-injection accuracy for DPF regeneration and soot reduction. Sourcing quality aftermarket cores meeting OEM metrics significantly reduces fleet maintenance costs while eliminating over-fueling risks and emission-related derates. Stabilized combustion efficiency directly lowers total cost of ownership (TCO) through fuel savings and reduced downtime.

Q1: What is the most critical measurement when replacing the armature core?
A: The armature lift setting-typically 50 µm-is critical. Even minor deviations cause incorrect timing, unstable fuel delivery, and poor throttle response.

Q2: How does a worn core affect return flow?
A: Scratching on the mid-section compromises sealing within the guide bore, allowing high-pressure fuel to bypass and increasing return flow volume while dropping rail pressure.

Q3: Is the core compatible with B20 biodiesel blends?
A: Yes, with carbon diffusion coatings designed for corrosion resistance. However, water contamination accelerates wear, so regular water separator maintenance remains essential.

Q4: Can I replace just the core, or the entire solenoid?
A: The core is serviceable separately but should be replaced with proper lift shims. Kits including core, shims, and O-rings ensure correct calibration.

Q5: Does replacement require ECU reprogramming?
A: Yes. After physical installation, IMA code programming is required to synchronize the new core's flow characteristics with ECM fuel maps for accurate metering and emission compliance.
