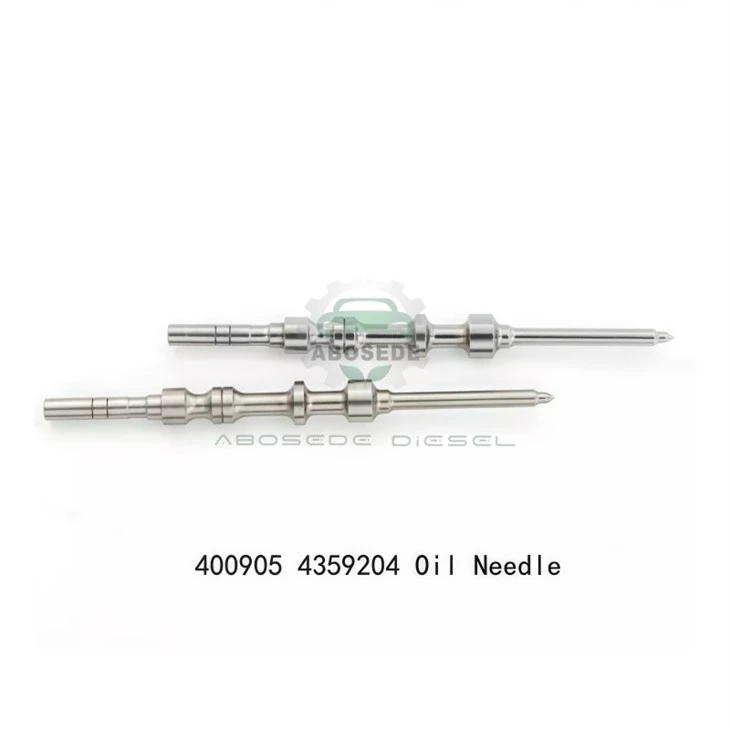

Cummins XPI Injector Nozzle Needle 400905 – Precision Fuel Delivery For XPI Common Rail Systems

The Cummins XPI injector nozzle needle 400905 is a precision-machined component engineered for the XPI common rail system, serving as the critical sealing and spray-control element within the injector body. Operating at ultra-high injection pressures up to 2000 bar, this nozzle needle directly influences fuel atomization, injection timing, and combustion efficiency. As one of 28 unique parts in each XPI injector, the 400905 needle maintains micron-level clearance with the nozzle body to prevent internal leakage and ensure consistent fuel metering. For diesel repair workshops serving heavy-duty fleets, this needle restores injector performance to OEM specifications without requiring complete injector replacement, making it a strategic inventory item for high-volume XPI engine maintenance.

The Cummins 400905 injector needle is manufactured from high-grade stainless steel with corrosion-resistant properties to withstand extreme thermal and chemical stresses. Critical parameters include a matched fit tolerance measured in microns to ensure precise seating within the nozzle body, maintaining the hydraulic seal necessary for proper pressure accumulation. The precision-ground tip geometry determines spray pattern and fuel penetration, directly impacting combustion efficiency and particulate emissions. Replacement of the 400905 needle requires inspecting the mating nozzle body condition, as wear on either component compromises sealing, leading to fuel dribble or reduced injection pressure. The needle operates within the nozzle spring assembly, where spring force opposes hydraulic pressure on the lift surface. Specified spring characteristics-wire diameter, coil count, and free length-must match OEM parameters to preserve injection timing. Technicians should source needles with certified dimensional compliance to avoid calibration drift.

The 400905 injector nozzle needle is compatible with the Cummins XPI fuel system across ISX15, QSX15, ISX12, and ISL9.3 series, plus Dongfeng Cummins ISZ13 and LSX12 variants. These engines power Class 8 over-the-road trucks, off-highway construction machinery, mining haulers, and marine propulsion systems. The XPI injector supports ECM-controlled multiple injection events for reduced combustion noise, improved low-speed torque, and EPA emissions compliance. Repair shops servicing Cummins-powered Kenworth, Peterbilt, Freightliner, and International trucks will regularly encounter this specification. The needle also enhances cold-start performance in harsh northern US and Canadian climates, directly impacting operational uptime.

Installation demands strict cleanliness and precision torque, as micron-level tolerances make the injector highly susceptible to contamination. Technicians must retain the small "puck" shaped spacer beneath the nozzle-loss renders the injector core unusable. Nozzle cap torque must be 70-75 N·m using a calibrated wrench to prevent body distortion. All mating surfaces require cleaning with brake cleaner, avoiding direct spray into the injector bore. Armature lift adjustment should be set to 50 micrometers, with the solenoid spring screw micro-adjusted to fine-tune injection volume, verified through bench testing of return flow and spray quality. If return flow exceeds specifications after replacement-indicated by rapid rail pressure decay-internal valve group seals may also need service. Facilities without bench-testing capability should send assemblies to a diesel injection lab for calibration code verification.

Replacing the 400905 injector needle offers a cost-effective alternative to complete injector replacement, where full-set swaps can exceed $3,500–$6,000 for V8 diesel applications. A new OEM injector may cost $450–$900+ per unit, while a needle kit-paired with seal and spring service-restores performance at a fraction of the cost. However, conduct a thorough condition assessment: if the injector body shows scoring, bore wear, or solenoid anomalies, needle replacement alone won't resolve issues. Bench testing measuring return flow rates, spray consistency, and injection deviation validates rebuilt performance. For distributors, stocking the 400905 needle alongside nozzle springs, sealing O-rings, and transition shims enables rapid order fulfillment, reducing fleet downtime and positioning your operation as a reliable diesel aftermarket partner.

Q1: How do I confirm the 400905 needle matches my injector?
A: Verify the injector part number on the solenoid body-typically a 0445110-series number for XPI applications-and cross-reference with your engine serial number. Using incompatible needles causes improper seating and injection failure.

Q2: Is recalibration required after needle replacement?
A: Yes-bench testing and recalibration are strongly recommended after any needle service. The XPI system relies on ECM calibration codes for injection commands. Manufacturing variations can affect fuel delivery, causing rough idle or balance faults.

Q3: What is the service interval for XPI needle replacement?
A: Performance degradation typically appears between 300,000–500,000 miles, with symptoms like reduced fuel economy, increased smoke, or hard starting. Proactive replacement at the first sign of balance-rate drift delivers optimal repair economics.

Q4: What warranty applies to replacement needles?
A: Quality aftermarket needles generally carry a 12-month warranty against manufacturing defects when installed with proper torque and cleanliness. Document installation procedures to support potential warranty claims.

Q5: Are all XPI needle variants interchangeable?
A: No. The 400905 needle is specifically dimensioned for certain injector codes within the ISX/QSX platform. Interchanging different part numbers can alter spray angle, hole count, or flow rate, leading to poor combustion. Always match the specific part number to the injector being serviced.
