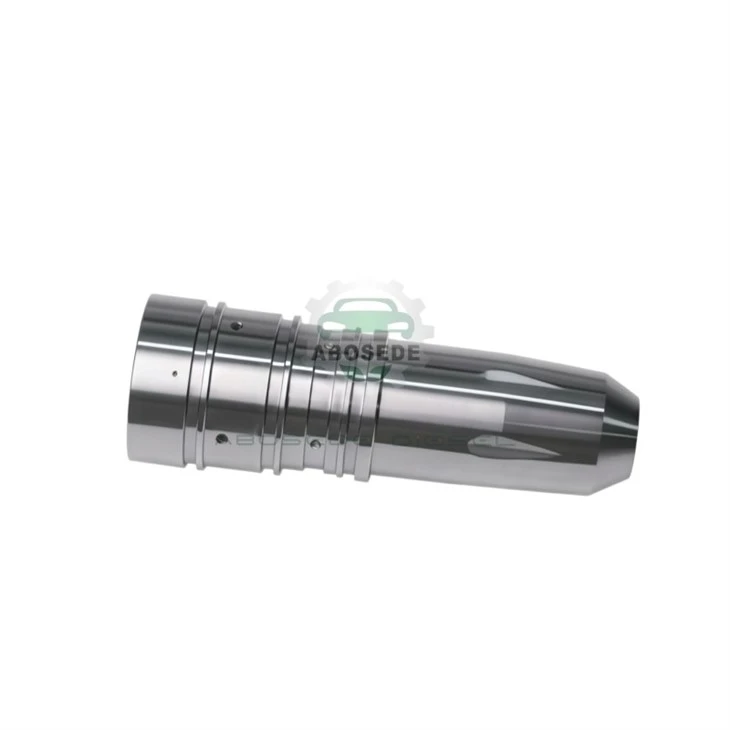

Armature Core – Precision Solenoid Component For Cummins M11 Series Injectors

This armature core serves as the critical electromechanical bridge within the Cummins M11 electronic unit injector (EUI) , converting ECM digital signals into precise mechanical valve motion. As the moving element inside the injector solenoid, it lifts against spring tension and high-pressure fuel forces to initiate each injection cycle. Engineered for professional workshop rebuilds, this replacement restores factory magnetic characteristics and stroke calibration. When installed correctly, it eliminates performance-robbing fuel metering delays, allowing M11-powered trucks and industrial equipment to recover original throttle response and thermal efficiency.

Functional reliability depends entirely on sub-millimeter precision. The armature stroke is factory-set to 0.28 mm of total travel between rest and magnetic pole face, directly determining fuel admission volume. Radial guidance uses a bronze bearing sleeve with clearance of 0.015 to 0.025 mm, preventing side-loading and ensuring perpendicular valve lift. The magnetic circuit requires a pull-in current of 12.5A to overcome spring preload and hydraulic back-pressure, then reduces to 6.0A hold current for the injection event. Rebuilding workshops must verify residual magnetism characteristics, as improper metallurgy causes delayed closing and nozzle carbonization. This assembly includes a stress-relieved spring with matched preload for consistent release timing across all operating conditions.

This armature core correctly replaces the following 19 original equipment injector assemblies. Use this table for rapid service counter verification.

Workshops servicing Cummins M11, ISM, and QSM power units across North America and Europe recognize this as high-turnover stock. These engines power Kenworth, Peterbilt, Freightliner heavy trucks and Komatsu, CAT off-highway equipment. During overhaul, use the correct fixture tool to prevent distortion of precision pole pieces. Inspect the solenoid housing for fretting or magnetic particle contamination before installation. Replace all peripheral seals and the internal fuel strainer during this repair, as microscopic debris accelerates wear on new guide surfaces. After reassembly, a solenoid air gap verification with feeler gauges or a dial indicator is mandatory-incorrect gap causes cylinder misfires or no-start conditions from insufficient magnetic flux.

Replacing this armature during injector service offers exceptional value versus complete injector replacement. Field data shows worn armatures contribute to injection timing drift up to 1.5 crankshaft degrees, forcing ECM fuel trim corrections and triggering cylinder balance fault codes. A cylinder contribution test using diagnostic software reveals weak cylinders unable to maintain RPM under load-prime candidates for renewal. The economics favor rebuilds: new injectors carry core charges exceeding $200, while replacing just the actuation component restores performance at fractions of the cost. Proactive armature replacement reduces secondary damage to nozzles and plungers, preventing costly roadside breakdowns and lost revenue.

Q1: How do I distinguish armature failure from a faulty nozzle in M11 engines?
A: Perform a return fuel flow test and solenoid coil resistance check. If the coil reads correctly (typically 0.5Ω) but the cylinder fails a cutout test, the armature is likely sticking.

Q2: Can I reuse the existing bias spring with this new armature core?
A: We advise against it. Bias springs settle over time, altering preload. Always fit a fresh spring to ensure proper return seating when the solenoid de-energizes.

Q3: What happens if I skip the air gap measurement during installation?
A: You risk weak magnetic pull at high RPM or bottoming out the armature, bending the valve stem. Both cause drivability complaints and premature failure.

Q4: Does this core fit both early Celect and Celect Plus injector bodies?
A: Yes, the core is dimensionally identical across listed OE numbers. However, check top-stop clearance, as Celect Plus may require different shim stacks.

Q5: How long does this armature core typically last in high-mileage trucks?
A: With proper filtration and maintenance, expect 400,000 to 600,000 miles. Severe-duty applications may see reduced intervals, so periodic cylinder contribution testing is recommended.
