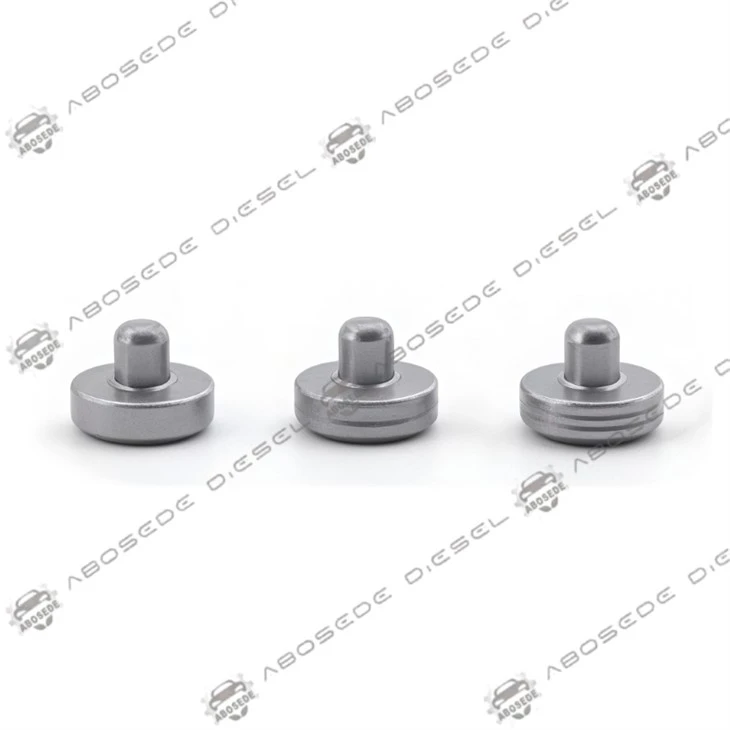

Cummins M11 Push Rod – Precision Valve Train Component For CELECT & HPI Unit Injector Systems

Engineered for the mechanical unit injector architecture of the Cummins M11 series, this push rod serves as the critical motion-transfer link between the camshaft lobe and the injector plunger. Unlike common-rail systems that generate pressure hydraulically, the M11 relies entirely on this component to convert rotational cam motion into linear displacement that drives fuel pressurization. Any deviation in push rod geometry-from wear, bending, or fatigue-introduces "lost motion" that can delay injection timing by up to 1.2° crank angle at 2,100 rpm, a mechanical error the ECM cannot compensate for due to the absence of plunger position feedback. This assembly restores the original transfer function, ensuring plunger displacement precisely mirrors the cam profile.

This push rod is constructed from SAE 8620 nickel-chromium-molybdenum alloy steel, selected for core toughness and surface hardenability. The component measures 118.5 mm in overall length with a 12.0 mm shaft diameter, featuring a spherical ball end with an SR 8.0 mm radius at the cam follower interface and a flat seating face of 14.2 mm diameter at the plunger end. The ball-end radius accommodates angular misalignment up to 1.5° without side loads, compensating for thermal expansion differences. The seating face is ground to a flatness tolerance of 0.005 mm to ensure uniform load distribution and prevent stress concentration that could tilt the plunger. A selective case-hardening process achieves surface hardness of 58–62 HRC at both wear zones with a hardened depth of 1.2 mm, while the central shaft retains a core hardness of 32 HRC for fracture resistance under peak compressive loads of approximately 4.2 kN. A diamond-like carbon (DLC) coating (2.5 μm thick, 2,200 HV) is applied to the ball end and seating face, reducing the coefficient of friction from 0.12 to 0.06 and eliminating stick-slip during cold starts below 0°C.

Correct push tube timing is essential for achieving the static injection timing specification of 5.16 mm Before Top Dead Center (BTDC) for the M11 series. Begin by inspecting each push rod for straightness on a flat surface to detect bending, and verify the internal oil passage is clear by listening for a distinct "bell" sound when tapped. Using the Injector Timing Tool (Part No. 3823451) inserted into the injector bore, rotate the accessory drive shaft clockwise to position the piston at TDC on the compression stroke. Set the dial indicator to zero, rotate to 90° After Top Dead Center (ATDC), reset the indicator, and rotate counterclockwise to 45° BTDC to eliminate gear backlash. Finally, rotate clockwise until the indicator reads 5.160 mm-the measured value is your static timing reading; compare against the CPL (Control Parts List) specification and adjust by adding or removing cam follower box shims or replacing the camshaft key as required.

For diesel fuel injection workshops, the push rod represents a high-wear, mission-critical component that directly influences injection event timing and combustion stability. In the M11's CELECT system, the ECM dictates the timing strategy electronically, but the push rod executes it physically-any inconsistency leads to uneven air intake, irregular fuel injection, and combustion instability that manifests as rough idle, power loss, and increased smoke output. Replacing this component during injector overhauls or engine rebuilds restores plunger stroke fidelity, protects the injector bore from uneven wear, and ensures the engine operates within original performance parameters.

Q1: What injector part numbers is this push rod compatible with?
A: This push rod directly fits injectors 4307516, 4384360, 4903319, 4903472, 4902921, 4061851, 4026222, 4307776, 3411754, 3411756, 3652542, 3652541, 3411752, 3087557, 3084589, 3095040, 3411753, 3411767, and 3411755 across M11, ISM11, QSM11, and L10 platforms.

Q2: How do I verify correct push rod length for my application?
A: All compatible injectors share a 12.0 mm guide bore and 118.5 mm push rod length. Always check your engine's CPL and use the 3823451 timing tool to confirm static timing (5.16 mm BTDC spec) after installation.

Q3: Can a worn push rod affect injection timing even if the ECM is functioning correctly?
A: Yes. The ECM has no position feedback sensor on the plunger. Wear or bending creates "lost motion" that delays injection timing by up to 1.2° crank angle at high RPM-a mechanical error the electronics cannot correct.

Q4: Is this push rod compatible with both CELECT and mechanical M11 engines?
A: Yes. This assembly fits M11 CELECT, CELECT Plus, and mechanical (STD) variants, as well as ISM11 and QSM11 platforms.

Q5: What is the expected service life of this push rod?
A: With the DLC coating reducing friction and wear, service life is extended compared to uncoated OEM equivalents. Replacement is recommended during major injector overhauls or when timing drift is detected.

Q6: Do I need special tools for installation?
A: Yes. The Injector Timing Tool 3823451 is required to correctly measure static injection timing at 5.16 mm BTDC. A dial indicator and cam follower box shims may also be needed for adjustments.
