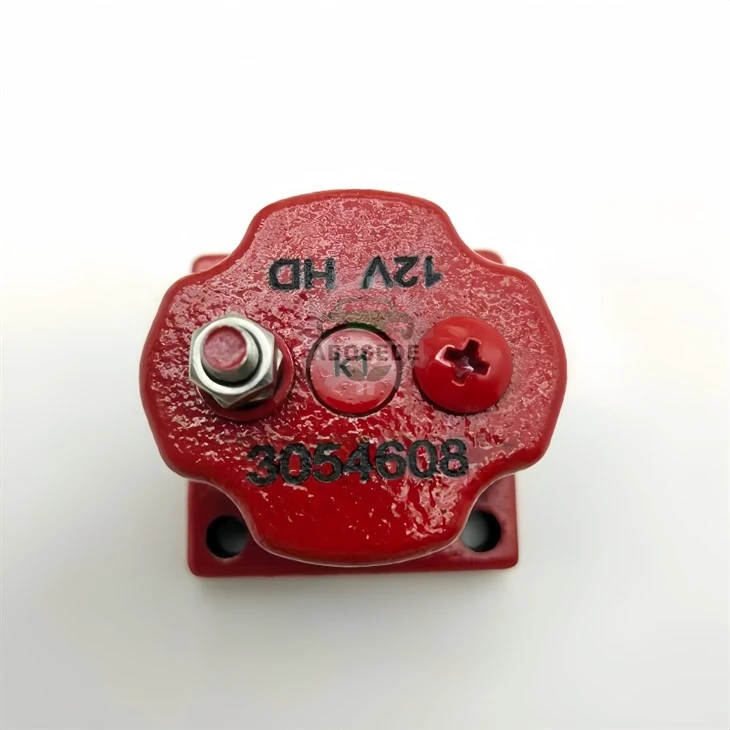

3054608 12V Solenoid Valve – The Last Valve Before The Engine Stops

In the hierarchy of diesel engine components, some parts get all the attention. Pistons. Turbos. Injectors. They're the stars - the parts that make power, that drivers feel, that owners brag about.

Then there are the components that work in silence, waiting for their one moment. The 3054608 12V solenoid valve belongs to that second category. It doesn't build boost. It doesn't atomize fuel. It does one thing, and it does it with absolute certainty: it decides when the fuel stops flowing.

This is the fuel shutoff solenoid - the electrical gatekeeper that controls the flow of diesel to the engine. When it's energized, fuel flows. When it's not, the engine stops. Simple in concept. Absolutely critical in execution.



The 3054608 is a 12V fuel shutoff solenoid valve - an electromechanical device that opens and closes the fuel supply path to the engine. It's the component that translates an electrical signal into a mechanical action, cutting off fuel flow when the ignition is turned off or when an emergency shutdown is triggered.

How it works:

When 12V power is applied, the solenoid's electromagnetic coil energizes, pulling the plunger and opening the fuel passage

When power is removed, a spring returns the plunger to the closed position, stopping fuel flow

The result is instantaneous fuel cutoff - critical for engine safety and proper shutdown

The 3054608 is available in both 12V and 24V configurations (the 24V variant is 3054609), with the 12V version being the most common for standard diesel engine systems.



Specification	Detail
Part Number	3054608
Voltage	12V DC
Type	Fuel Shutoff Solenoid Valve
Weight	0.277 kg (approximately)
Dimensions	4.6 × 4.6 × 5.3 cm
Material	Metal with corrosion-resistant red coating
Warranty	Reflects manufacturer's quality standards

Interchange numbers for this valve include:

Number Type	Part Number
Primary	3054608
Alternate	4024808, 3408421, 209940
Related	3054611

---



The 3054608 is a Cummins-specification solenoid valve with an exceptionally broad application range across the Cummins engine family:

Cummins Engine Series:

Engine Series	Specific Models
N-Series	N14, NT855, NH
K-Series	KTA19, KTA38, KT50, K6
M-Series	M11
L-Series	L10
X-Series	ISX15, QSX15
Q-Series	QSM11
Other	FL912

Vehicle and equipment applications include:

Heavy-duty trucks

Construction equipment (excavators, loaders)

Industrial engines

Marine applications

Generator sets

The valve is also available as part of a fuel shutoff solenoid kit that includes the solenoid along with seals and O-rings for complete replacement.



The 3054608 belongs to the world of mechanical diesel injection - the technology that powered Cummins engines for decades before common rail took over. In mechanical injection systems, fuel flow is controlled by a combination of mechanical governor and solenoid-actuated shutoff.

How it fits into the system:

The fuel shutoff solenoid is typically mounted on the fuel pump or fuel manifold

It controls the fuel supply to the injection pump

When the solenoid closes, fuel flow stops and the engine shuts down

This is the primary method of engine shutdown in many mechanical Cummins engines

The 3054608 is a normally closed valve - it requires electrical power to open and allow fuel flow. This is a fail-safe design: if the electrical system fails, the valve closes and the engine stops, preventing runaway conditions.



The 3054608 may be small - weighing just over half a pound - but its role is outsized. It's the last line of defense between the fuel tank and the combustion chamber.

What it protects against:

Engine runaway - if the mechanical governor fails, the solenoid provides an electrical shutdown path

Uncontrolled shutdown - ensures the engine stops cleanly when the ignition is turned off

Fuel system contamination - by stopping fuel flow completely when the engine is off

Signs that the 3054608 needs replacement:

Engine won't start - solenoid fails to open, preventing fuel flow

Engine won't shut off - solenoid fails to close, allowing fuel to continue flowing

Intermittent operation - electrical issues cause the valve to open and close unpredictably

Clicking noise - solenoid tries to actuate but fails to move fully

The valve's corrosion-resistant red coating is designed specifically for harsh engine environments - high temperatures, vibration, and exposure to diesel fuel and contaminants.



Replacing the 3054608 is generally straightforward, but requires attention to detail:

Disconnect the battery before any work begins - the solenoid is electrically actuated

Locate the solenoid on the fuel pump or fuel manifold

Remove the electrical connector - typically a single terminal connection

Unscrew the solenoid from its mounting

Replace any O-rings or seals - these are single-use components

Install the new solenoid with the correct torque specification

Reconnect the electrical connector

Critical note: The 3054608 is available in both 12V and 24V configurations. Always verify the voltage requirement of your specific engine before ordering. The 12V version (3054608) and 24V version (3054609) are not interchangeable.



Q1: What engines does the 3054608 fit?
It fits a wide range of Cummins engines, including N14, NT855, KTA19, KTA38, KT50, M11, L10, ISX15, QSX15, and QSM11.

Q3: What's the difference between 3054608 and 3054609?
3054608 is the 12V version; 3054609 is the 24V version. They are not interchangeable - always verify your engine's voltage requirement before ordering.

Q2: What are the warning signs that my solenoid needs replacement?
Common symptoms include engine failing to start (solenoid won't open), engine failing to shut off (solenoid won't close), intermittent operation, and clicking noises from the solenoid area.

Q3: Is the 3054608 the same as 4024808, 3408421, or 209940?
Yes - these are interchange numbers for the same solenoid valve. All these numbers refer to the identical 12V fuel shutoff solenoid for Cummins engines.

Q4: What's the warranty on this solenoid valve?
This solenoid valve comes with a warranty that reflects the manufacturer's quality standards.
