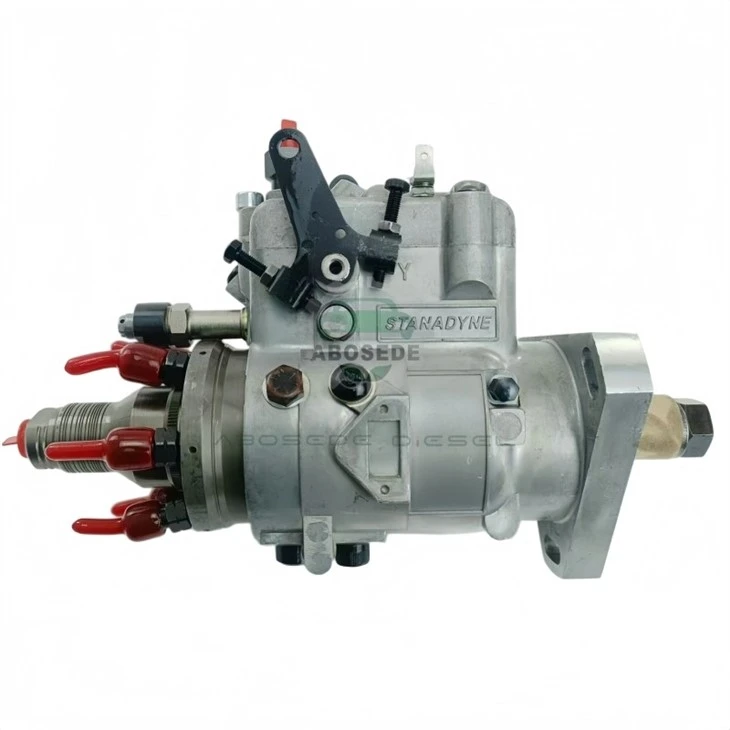

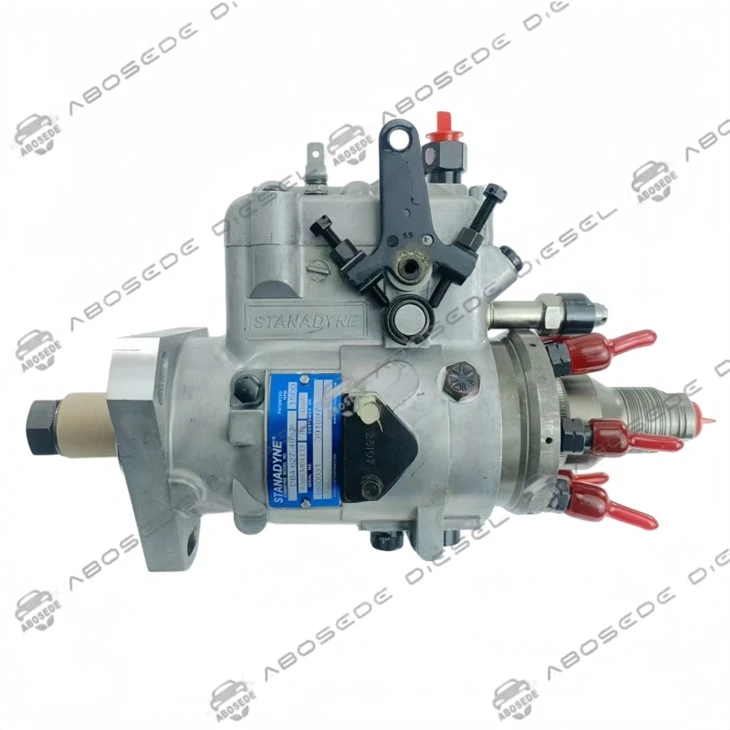

DB4627-4937 / 3918973 Diesel Fuel Injection Pump For Cummins 6BT 5.9

This Stanadyne DB4627-4937 rotary distributor injection pump serves as the direct replacement for OEM 3918973 on Cummins 6BT 5.9 diesel engines. Engineered for industrial, agricultural, and generator-set duty cycles, this pump restores precise fuel metering and stable rail pressure to engines that have suffered from worn internal components, erratic delivery, or hard starting. Each unit arrives factory-sealed and calibrated, ready for installation without core exchange requirements.

The DB4627-4937 pump is calibrated specifically for the Cummins 6BT5.9 family, including the 6B5.9, 6BT5.9G, 6BT5.9G2, and 6BT5.9M engine variants. These powerplants appear across a broad spectrum of heavy equipment: generator sets requiring consistent 50Hz or 60Hz output, excavators operating under continuous load, and construction machinery where fuel delivery stability directly impacts cycle times. The pump's rotary distributor design ensures equal fuel distribution across all cylinders, which is critical for engines running at fixed RPM for extended periods, such as prime power generators and agricultural irrigation drives. Before ordering, verify the existing pump's tag matches DB4627-4937 or cross-references 3918973 to avoid misapplication.

Installation requires strict cleanliness discipline. Before mounting the replacement pump, flush the entire fuel system to remove debris from the previous failure-residual contaminants will destroy the new pump's precision components within hours. Verify pump timing against the engine's static timing mark, as the rotary distributor's drive shaft orientation determines injection sequence. Replace all copper sealing washers and O-rings at the delivery valve and mounting flange. Prime the pump with clean diesel before cranking to prevent dry-running the internal vanes and rotor. After the first start, bleed the high-pressure lines at each injector while cranking until fuel emerges without air bubbles. Monitor for leaks at the advance piston and head seal during the first hour of operation. A fuel filter upgrade is strongly recommended if the prior pump failed due to contamination.

On a diesel common rail system, the injection pump is the pressure-generation heart-every injector's spray quality depends on the pump's ability to hold commanded rail pressure under load. When the DB4627-4937 wears internally, symptoms cascade: hard hot starts, white smoke at idle, loss of power under load, and rising return flow that starves the rail during cranking. For a diesel repair shop, rebuilding this pump in-house rarely makes economic sense-the calibration equipment alone exceeds the cost of a factory-sealed replacement. For parts distributors, stocking this specific cross-reference covers a substantial installed base of Cummins 6BT industrial engines that remain in active daily service worldwide. A correctly matched pump eliminates the diagnostic guesswork that surrounds injector-related drivability complaints, restoring the engine's baseline fuel delivery behavior.

Q1: Can I install this pump without resetting injection timing on the engine?
A: No. The rotary distributor pump must be timed to the engine's static timing specification using the timing pin and dial indicator procedure. Removing the old pump without marking the drive gear position will cause hard starting and white smoke.

Q2: What's the most common comeback failure after pump replacement?
A: Contamination from the previous pump's failure. If the fuel tank, lines, and filter housing aren't flushed, debris reaches the new pump's transfer pump and metering valve within days. Always replace the filter and inspect tank condition before installation.

Q3: Does this pump require programming or ECU calibration?
A: No. The DB4627-4937 is a mechanically governed rotary pump-no electronic coding or ECM relearn is needed. The engine's fuel shutdown solenoid and timing advance operate independently of the ECU on these applications.

Q4: How do I identify a genuine Stanadyne versus a low-cost copy?
A: Look for the laser-etched Stanadyne logo and part number on the pump housing, not a sticker. Copies often lack the advance piston shim stack tolerance and will exhibit erratic timing under load. The 12-month unlimited mileage warranty is the practical marker-counterfeit sellers rarely stand behind their units.

Q5: What's the typical service life of this pump in generator applications?
A: Under proper filtration and clean fuel, 8,000–12,000 operating hours is achievable in standby generator duty. Prime power or continuous load installations typically see 5,000–7,000 hours before internal wear alters delivery characteristics.
