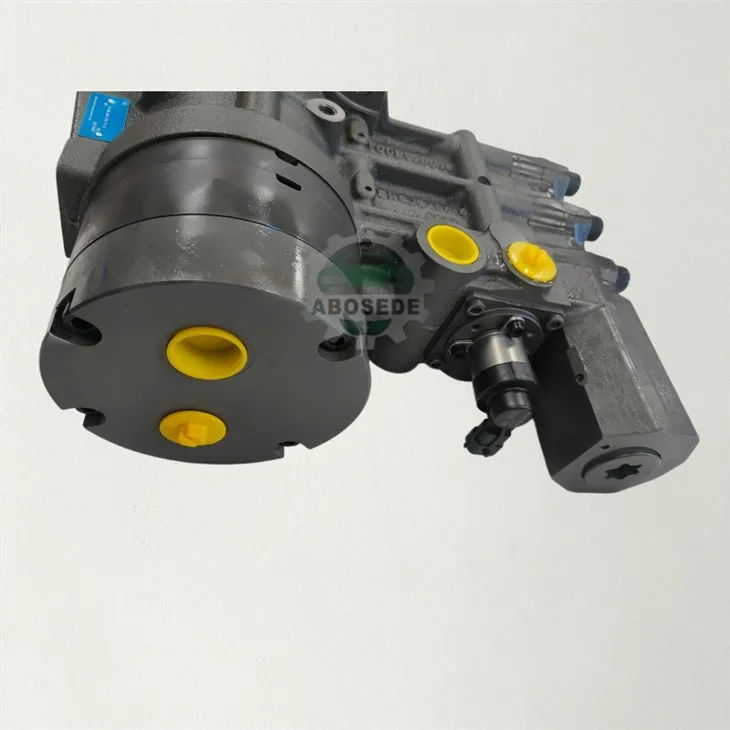

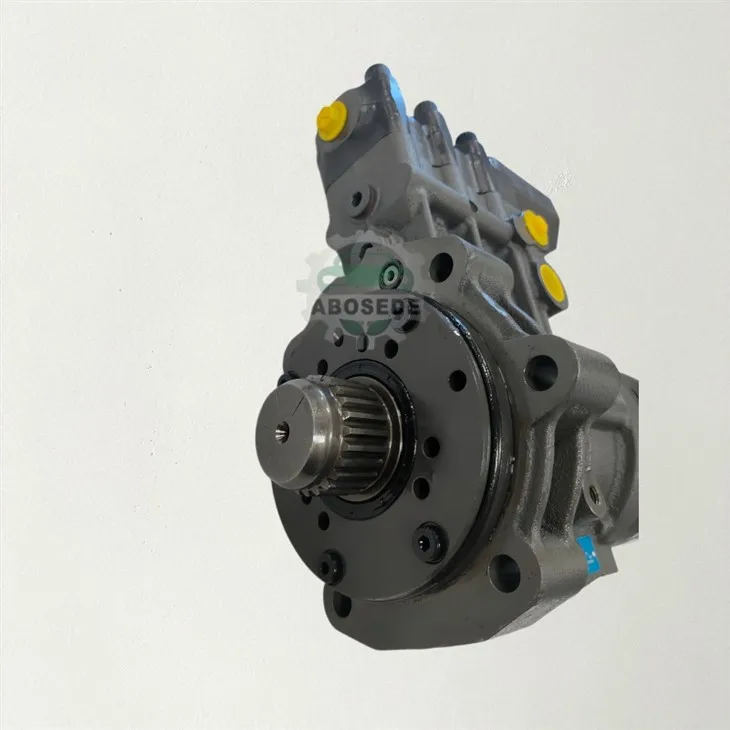

Maximize Uptime: The Strategic Advantage Of The Cummins F00BC00012 CP9.2 Pump



In the demanding landscape of heavy-duty diesel operations, downtime is not just an inconvenience-it is a direct hit to your bottom line. For maintenance directors and procurement specialists across Europe and North America, the focus has shifted from simple component replacement to maximizing total lifecycle value. This is where the Cummins F00BC00012 enters the conversation as a game-changer. As a premium iteration of the Bosch CP9.2 high-pressure pump series, this unit is engineered to deliver unwavering stability in hydraulic pressure, ensuring that modern emission-compliant engines perform at their peak without the constant threat of unscheduled maintenance.



🔩 Robust Architecture & Hydraulic Dynamics



The F00BC00012 stands out due to its sophisticated internal architecture designed to handle the rigorous demands of high-injection-pressure environments. Unlike older generation pumps, this model optimizes the balance between mechanical durability and hydraulic efficiency.

Core Structural Advantages:

Tri-Piston Radial Design: The heart of the CP9.2 platform features three radially arranged plungers. This configuration ensures smooth torque oscillation and consistent fuel delivery, minimizing vibration transfer to the engine block.

Optimized Cam Profile: The internal cam ring is machined to exacting tolerances to reduce friction between the rollers and the cam surface. This directly translates to lower operating temperatures and reduced wear over extended service intervals.

High-Pressure Seal Integrity: Utilizing advanced sealing materials compatible with ultra-low sulfur diesel (ULSD) and biodiesel blends, the F00BC00012 prevents internal leakage, maintaining rail pressure even during rapid load changes.





To aid in precise parts identification and system matching, the following data outlines the operational envelope of the F00BC00012.



Feature	Specification Details
Product Model	Cummins F00BC00012 (CP9.2 Platform)
Pump Configuration	3-Plunger Radial Piston
Peak Rail Pressure	Up to 1800 bar (180 MPa)
Control Interface	Digital Fuel Control Actuator (FCA)
Mounting Flange	Standardized SAE/ISO interface for direct fitment
Lubrication Method	Internal (Fuel-Lubricated)
Rotation Direction	Clockwise (Standard Drive)





When selecting a high-pressure pump, compatibility extends beyond physical dimensions; it encompasses the electronic handshake between the pump's actuator and the engine's ECU. The Cummins F00BC00012 is specifically calibrated for versatility across various sectors requiring Euro IV/V and EPA Tier 4 compliance.

Target Applications:

Urban Transit & Coaches: Provides the responsive throttle characteristics needed for stop-start city driving while maintaining low noise levels for passenger comfort.

Construction Equipment: Excavators and loaders benefit from the pump's ability to maintain high rail pressure under sudden, heavy loads, preventing power lag.

Agricultural Machinery: Designed to withstand the dusty, high-vibration environments typical of harvesting and tilling operations.

By integrating seamlessly with the common rail accumulator, this pump allows for flexible injection strategies-including pilot and post-injection events-which are critical for optimizing combustion noise and managing exhaust gas temperatures for DPF (Diesel Particulate Filter) regeneration.





For independent workshops and fleet service centers, understanding the maintenance nuances of the F00BC00012 is key to warranty preservation and customer satisfaction.

Cleanliness Protocol: The internal clearances within the CP9.2 pump are microscopic. It is imperative to enforce strict cleanliness protocols during installation. Any ingress of particulate matter can score the plunger barrels, leading to immediate performance degradation.

Fuel Quality Management: Since the pump relies on diesel fuel for both lubrication and cooling, water contamination must be avoided. Regular draining of water separators is essential to prevent corrosion of the精密 internal components.

Actuator Calibration: Upon installation, ensure the Fuel Control Actuator (FCA) is free of obstruction. In some diagnostic software suites, performing an "actuator learn" or calibration routine may be necessary to synchronize the pump's output with the ECM's expectations.





Q1: What distinguishes the F00BC00012 from other CP9.2 variants?
A: While sharing the same physical housing, the F00BC00012 features specific internal calibrations and actuator mappings tailored for particular Cummins engine families. Swapping variants without verifying ECM compatibility can lead to rail pressure faults.

Q2: Why is my new pump making a whining noise?
A: A whining sound often indicates cavitation, which occurs when the pump is starved of fuel. Check your lift pump pressure, fuel lines for restrictions, and ensure fuel filters are not clogged before condemning the high-pressure pump.

Q3: Can this pump handle biodiesel blends?
A: Yes, the seals and internal metallurgy of the F00BC00012 are designed to be compatible with standard biodiesel blends (such as B20). However, maintenance intervals for fuel filtration should be shortened as biodiesel can degrade faster and hold more moisture.

Q4: How does the Fuel Control Actuator (FCA) work on this unit?
A: The FCA is a solenoid valve located on the pump inlet. The ECM pulses this valve to regulate exactly how much fuel enters the pumping chambers. This "suction control" reduces the power required to drive the pump compared to older spill-valve systems.

Q5: What should I do if I encounter a "Rail Pressure Too Low" code after installation?
A: First, verify that the electrical connector to the FCA is secure. Next, check for air leaks in the low-pressure supply lines. If the supply side is healthy, use diagnostic tools to monitor the commanded vs. actual duty cycle of the actuator.
