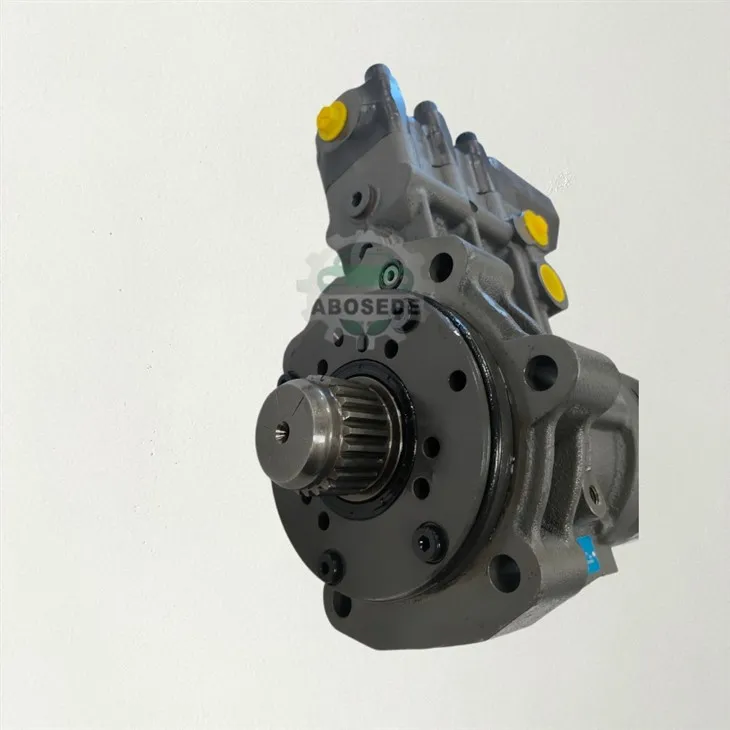

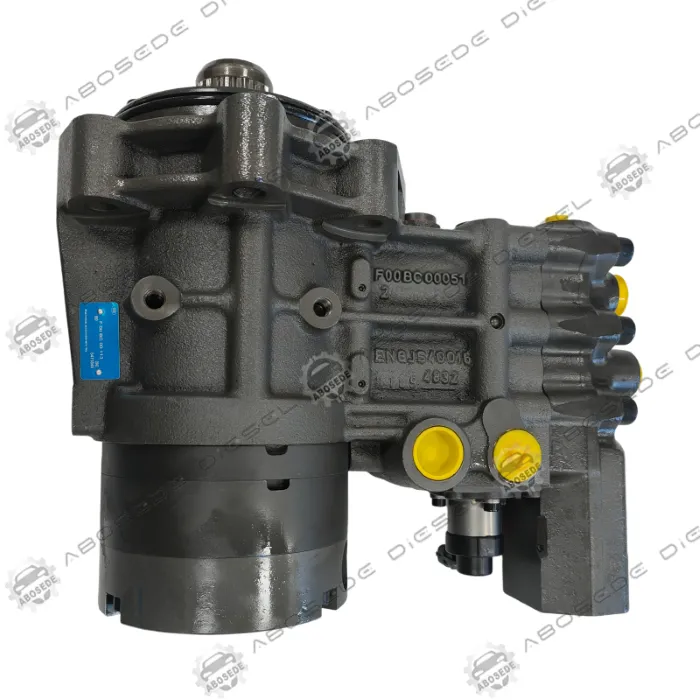

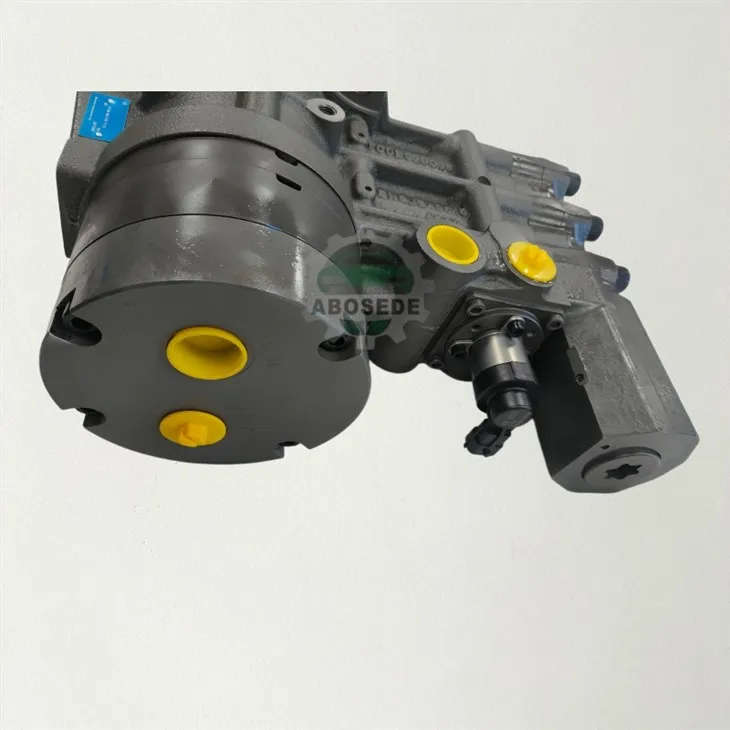

Cummins F00BC00051 High Pressure Fuel Pump CP9.2 | Common Rail Pump For QSK19 Engine | Heavy-Duty Diesel Injection System Replacement

In the complex architecture of modern diesel engines, the high-pressure pump acts as the critical pulse generator. The Cummins F00BC00051, a variant of the robust Bosch CP9.2 series, is engineered not just to pressurize fuel, but to deliver precise hydraulic metering essential for advanced engine management systems (EMS). Unlike older generation pumps, this unit utilizes an integrated suction throttle valve and advanced cam profiling to minimize parasitic loss while maintaining the immense pressure required for optimal atomization. For fleet managers and OEM engineers, understanding the hydraulic dynamics of this pump is key to reducing total cost of ownership (TCO) and ensuring compliance with stringent emission regulations.



🔧 Applicable Platforms & Cross-Referencing



The F00BC00051 pump is an exact-fit component tailored for high-displacement industrial engines. It integrates with the engine's electronic control unit (ECU) to manage high-pressure fuel distribution.

Engine Series Compatibility: Cummins QSK19, QSK Series High-Horsepower Engines.

System Architecture: Modular Common Rail Systems (MCRS).

Interchangeable OEM & Factory Part Numbers:

Cummins: 2888712, 2870938, 4998820, 5471846, 4306517

Bosch / System Base: F00BC00051, F00BC00012, F00BC00016, F00BL0P032





For fleet managers and heavy equipment mechanics, precise specifications are essential for system validation. The table below outlines the core operating limits of the CP9.2 pump platform:

Technical Parameter	Specification Limits & Standard Metrics
Product Model / Part Number	F00BC00051 (CP9.2 Modular System)
Max System Rail Pressure	Up to 2,200 bar ($220 \text{ MPa}$)
Lubrication Mechanism	Engine Oil Lubricated (Isolates fuel quality issues from moving parts)
Flow Regulation	Suction-side Intake Metering Valve (IMV / MPROP)
Drive Interface	Engine Gear-Driven Camshaft with Roller Plungers
Fuel Compatibility	Ultra-Low Sulfur Diesel (ULSD), Certified Bio-fuels, and E-fuels
Target Engine Power Range	Suitable for large engine configurations up to 8,000 kW





The Cummins F00BC00051 pump is built for heavy-duty operations where equipment failure can impact project timelines:

Surface Mining: Powers haul trucks, excavators, and blast hole drills operating in dusty, high-load environments.

Marine Propulsion & Auxiliary: Provides reliable fueling for commercial vessels and tugboats facing continuous open-water operations.

Rail & Locomotives: Supports long-haul freight and industrial shunting applications.

Stationary Power Generation: Ensures instant load-acceptance and grid synchronization in standby and prime diesel generator sets.





To maximize the service life of a CP9.2 high-pressure pump, technicians should adhere to these diagnostic and maintenance protocols:

Low-Pressure Monitoring: Keep a close eye on the inlet pressure of the integrated gear pump. Restrictions caused by clogged primary fuel filters can induce cavitation, resulting in micro-pitting on the high-pressure plungers.

Oil Quality Verification: Because this pump relies on engine oil for camshaft lubrication, maintaining proper oil viscosity and low soot levels is critical. Contaminated oil accelerates roller plunger wear, throwing off pump timing and output capacity.

Diagnostic Trouble Codes (DTCs): If codes relating to "Rail Pressure Deviation - Too Low" appear, check the suction metering unit's electrical resistance before replacing the complete pump assembly.





1. What makes the oil-lubricated F00BC00051 pump more reliable than fuel-lubricated high-pressure pumps?

Fuel-lubricated pumps depend entirely on the lubricity of the diesel fuel passing through them. In regions with dry or low-sulfur fuels, or where water contamination occurs, fuel-lubricated pumps can experience rapid internal wear. The F00BC00051 features an engine oil-lubricated camshaft chamber, isolating its mechanical drive components from fuel quality issues and protecting against catastrophic metal-particle shearing.

2. How does the suction-side metering valve on the CP9.2 pump improve fuel efficiency?

Traditional injection systems pump fuel at maximum capacity and bypass the unneeded portion back to the fuel tank, heating the fuel loop. The suction-side metering valve on the CP9.2 pump throttles the fuel volume before it enters the high-pressure chambers, ensuring the pump only compresses the exact volume required by the engine ECU, reducing parasitic engine load.

3. Can the F00BC00051 pump handle alternative fuels like biodiesel or synthetic e-fuels?

Yes. The structural materials, sealing elements, and valve configurations used in the CP9.2 modular system are qualified for specified drop-in biofuels and synthetic e-fuels, supporting fleet decarbonization initiatives without sacrificing component durability.

4. What are the primary indicators that my QSK19 engine's high-pressure pump is failing?

Common indicators include hard starting or failure to start under hot engine conditions, erratic engine idling caused by rail pressure fluctuations, and a loss of high-idle horsepower output. Physical inspections may reveal metal shavings inside the fuel filters or oil leakage at the pump drive gear flange interface.

5. Is the F00BC00051 fully interchangeable with older Cummins part numbers like 2888712 or 4998820?

Yes, those part numbers represent direct supersessions and OEM interchanges. The F00BC00051 matches the exact mechanical footprint, gear interface, and electrical connections of those part numbers, allowing for straightforward replacement in Cummins QSK19 Modular Common Rail Systems.
