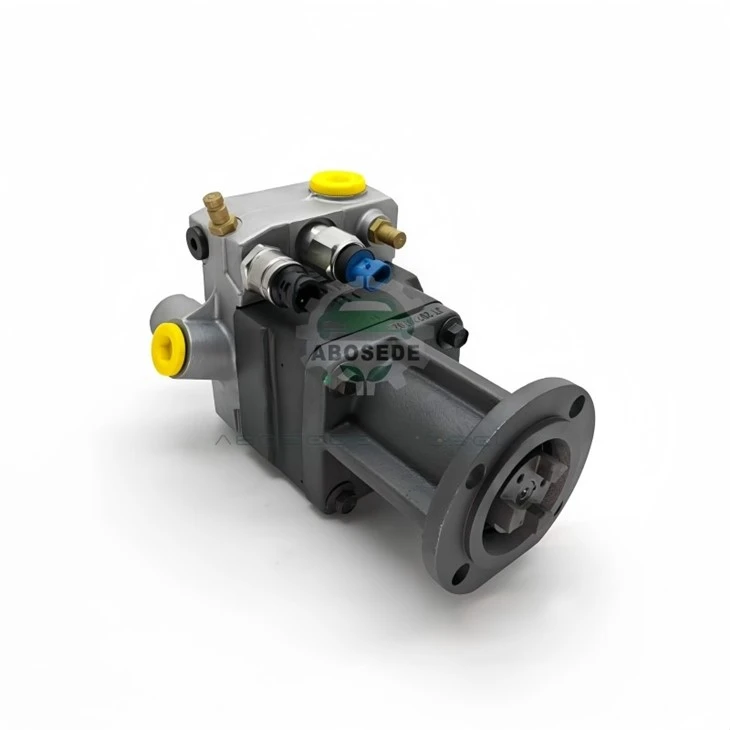

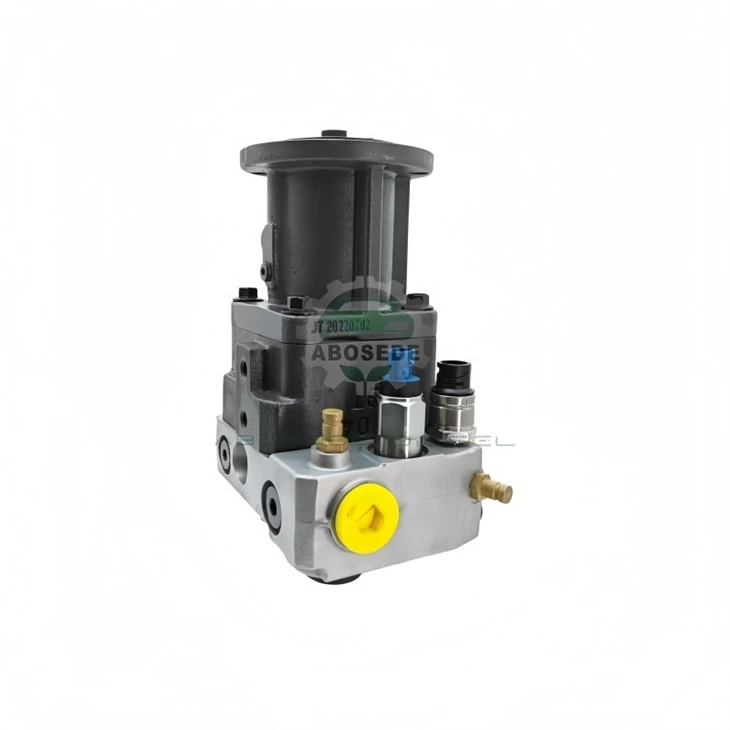

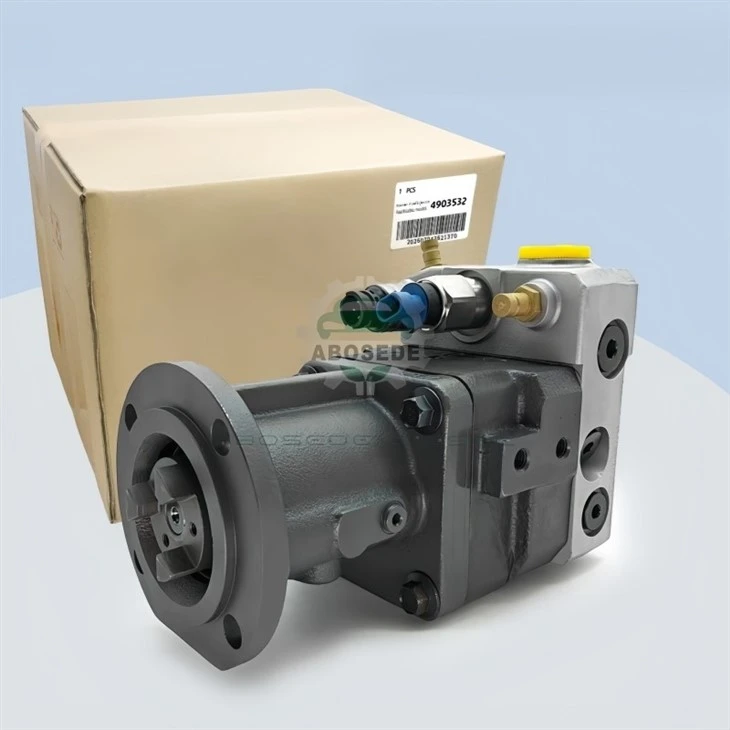

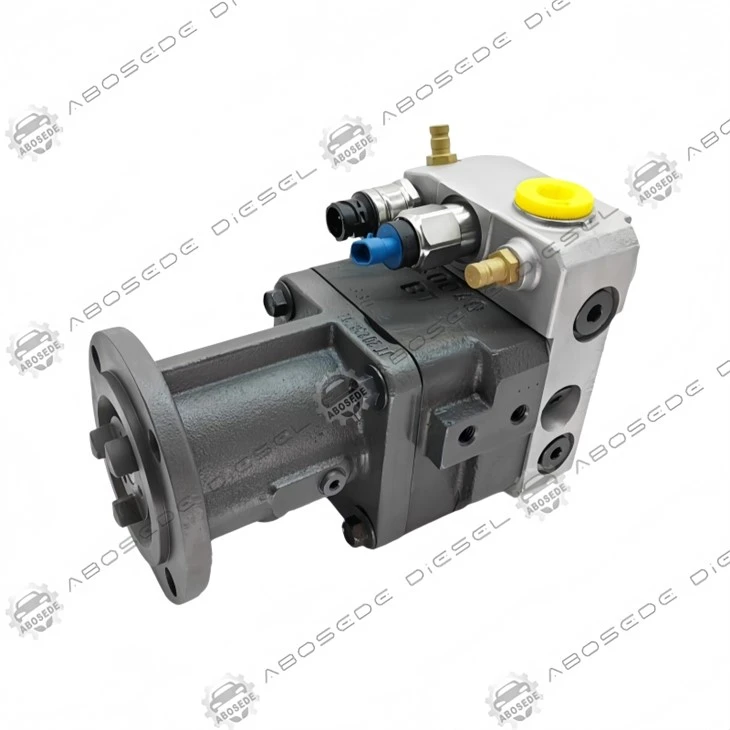

4903532 QSK60 Fuel Pump – Base Assembly For External PCV‑Controlled High‑Pressure Systems

The QSK60 engine family is deployed across a wide spectrum of applications-from ultra‑class mining haul trucks operating at 2,500 hp to marine propulsion systems running continuous duty cycles. To accommodate the varying electronic control strategies preferred by different OEMs and fleet operators, Cummins offers multiple pump variants. The 4903532 is the base high‑pressure fuel pump assembly for the QSK60, designed specifically for engines that utilise an external pressure control valve (PCV) rather than an integrated inlet metering valve. This configuration provides maximum flexibility: the pump itself is a robust, precision‑built hydraulic unit, while the control logic resides in the separately mounted PCV and the engine ECU. This separation simplifies pump replacement, reduces the cost of the pump unit itself, and allows the PCV to be upgraded or serviced independently-a practical advantage for workshops that maintain multiple QSK60 engines with different control system revisions. This article provides a comprehensive technical overview of the 4903532, including its hydraulic performance, component‑level specifications, application fitment, and field‑service guidelines.

The 4903532 is built around the QSK60's proven dual‑pumping‑element design, featuring two independent plunger‑barrel pairs that operate in parallel. Each element is a self‑contained hydraulic unit, comprising a precision‑ground plunger, a matched barrel, and integrated inlet/outlet check valves. The pump is driven at 1.5× engine speed via a gear train, delivering the high flow rates required for a 60‑litre, 16‑cylinder engine.

Key dimensional and performance data:

The plungers feature a spiral‑ground helix that determines the fuel cutoff point-and thus the injection quantity-in conjunction with the external PCV's pressure regulation. The helix geometry is calibrated to provide a linear relationship between PCV duty cycle and rail pressure, simplifying ECU mapping.

The 4903532 is designed to work with a separately mounted PCV, which is typically installed on the engine block or the high‑pressure rail. This PCV is an electro‑hydraulic proportional valve that bleeds excess fuel from the pump's outlet to the return line, thereby regulating the rail pressure. The ECU sends a PWM signal (typically 200 Hz) to the PCV, and the valve's spool position modulates the bleed‑off flow.

Typical external PCV specifications (sold separately):

Note: The PCV is not included with the 4903532 pump. It must be ordered separately based on the engine's specific ECU calibration and harness configuration.

The 4903532's internal components are manufactured from high‑grade powder‑metallurgy steel (similar to DIN 1.2367), with the plunger and barrel surfaces receiving a nitrocarburising treatment to achieve a surface hardness of 1,100 HV (≈68 HRC). The running clearance between the plunger and barrel is held to 3‑5 μm at 20 °C, ensuring minimal internal leakage while maintaining the necessary lubricating film. Each matched pair is lapped together to achieve the required clearance and surface finish (Ra ≤ 0.025 μm).

Service life expectation:
Under typical mining or marine duty cycles (high load, continuous operation), the pumping elements are designed to exceed 10,000 operating hours before the internal leakage reaches the service limit (defined as >1.2 l/min return flow at 1,600 bar). With clean fuel and regular filter maintenance, many operators report 12,000‑15,000 hours before requiring element replacement.

Pumping element replacement: The elements are accessible after removing the pump's cover plate. Each element is retained by a single bolt; after removal, the matched plunger‑barrel set is replaced as a unit. No lapping or adjustment is required in the field-the new set is pre‑lapped at the factory.

Torque values (critical connections):

Pump mounting bolts (M10, grade 10.9) : 80 Nm

High‑pressure outlet pipe to rail : 35 Nm

Return pipe connections : 25 Nm

PCV mounting (if fitted to the pump body) : 15 Nm

Timing procedure: The pump drive gear must be aligned with the engine's timing marks. Use the official Cummins timing pin to lock the pump shaft at the correct position. A 1° error in pump timing translates to approximately 4‑5% loss in peak power and increased exhaust smoke.

Priming: After installation, fill the pump's inlet port with clean diesel and operate the manual priming pump (if equipped) until fuel emerges from the return line without air bubbles. Never rely on cranking the engine to prime the pump-this can cause galling of the plunger surfaces due to insufficient lubrication.

Q1: Can I retrofit an integrated‑IMV pump (e.g., 4903530) to replace a 4903532 if I also change the ECU?
A: In theory, yes, but it requires replacing the ECU with one that supports IMV control, changing the wiring harness, and reprogramming the entire fuel map. In practice, this is rarely cost‑effective. It is almost always simpler to replace like‑for‑like-stick with the 4903532 if your engine already uses an external PCV.

Q2: How do I identify whether my QSK60 engine uses an external PCV or an integrated IMV?
A: Look at the pump body: the 4903532 has a smooth, un‑machined inlet flange with only two high‑pressure outlet ports. The 4903530 has an additional electrical connector on the pump itself (the IMV connector). Also, check the engine harness-an external PCV will have a separate PCV connector mounted on the engine block or rail.

Q3: What is the most common failure mode of the 4903532's pumping elements?
A: Abrasive wear caused by fuel contamination. Even small particles (5‑10 μm) that pass through the primary filter can embed in the barrel bore, scoring the plunger surface and increasing clearance. This leads to higher return flow and reduced rail pressure stability. Regular filter changes are critical.

Q4: Can the pump be operated with the external PCV removed (bypass mode)?
A: No. The pump will produce maximum flow and pressure, which will quickly over‑pressurise the rail and likely cause injector damage or rail rupture. The PCV must always be fitted and functional.

Q5: What is the correct procedure for storing a spare 4903532 pump?
A: The pump should be stored in its original packaging, with the inlet and outlet ports sealed with the supplied plastic caps to prevent contamination. Store in a dry, temperature‑stable environment (5 – 40 °C). Do not rotate the pump shaft by hand, as this can dry out the lubricating film on the plungers.

Q6: How do I verify that the pump's timing is correct without starting the engine?
A: Use the timing pin and follow the service manual procedure. Additionally, you can install a dial indicator on the pump's delivery valve to verify that the plunger's top‑dead‑centre position coincides with the engine's compression stroke timing mark.
