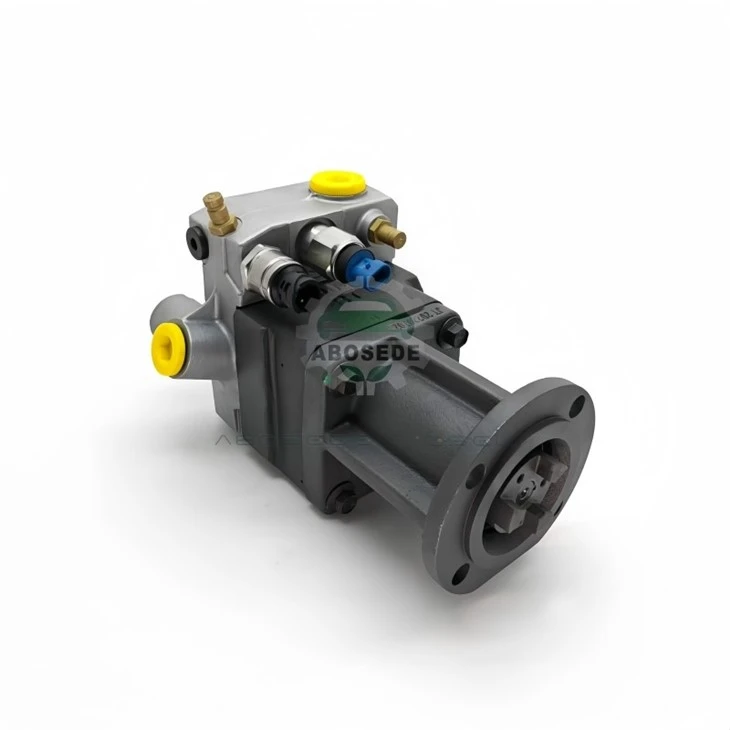

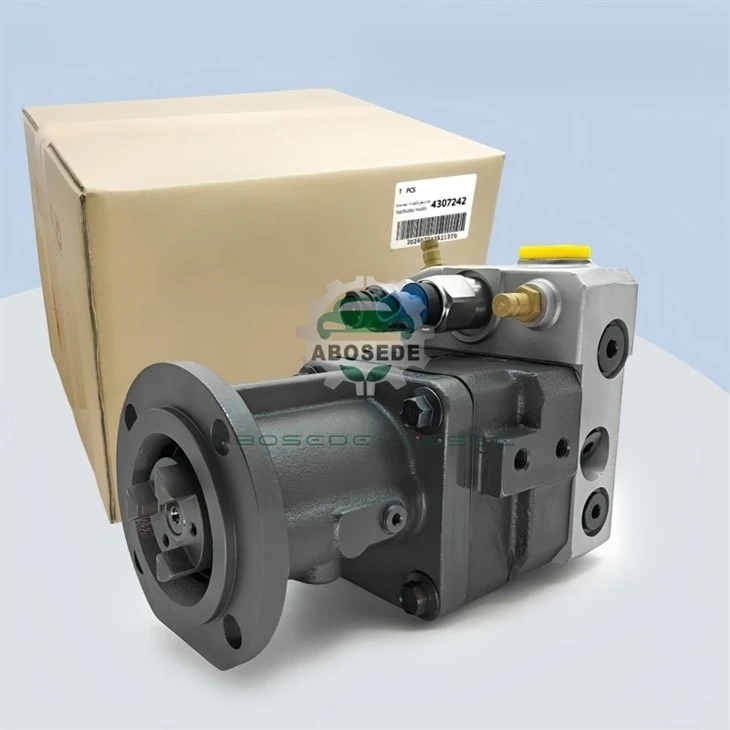

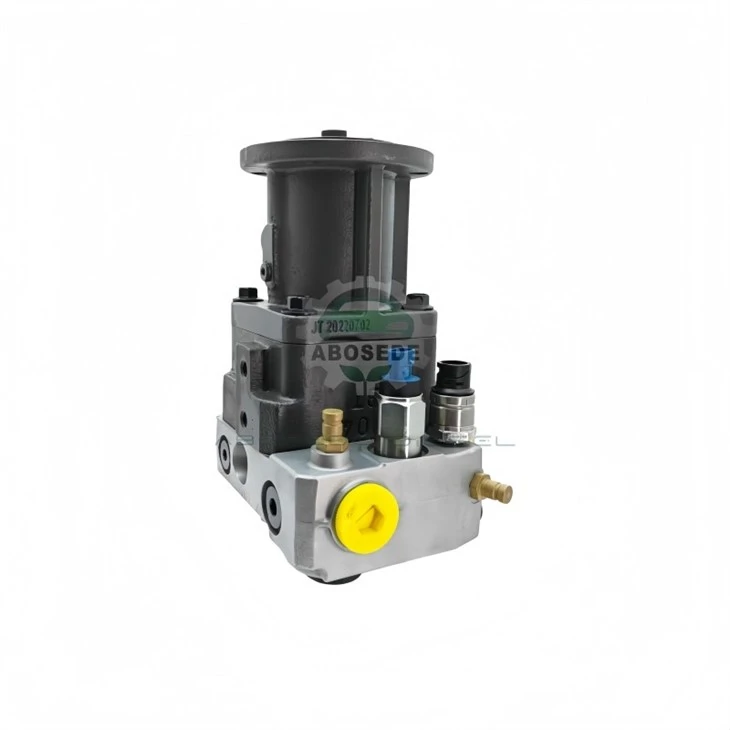

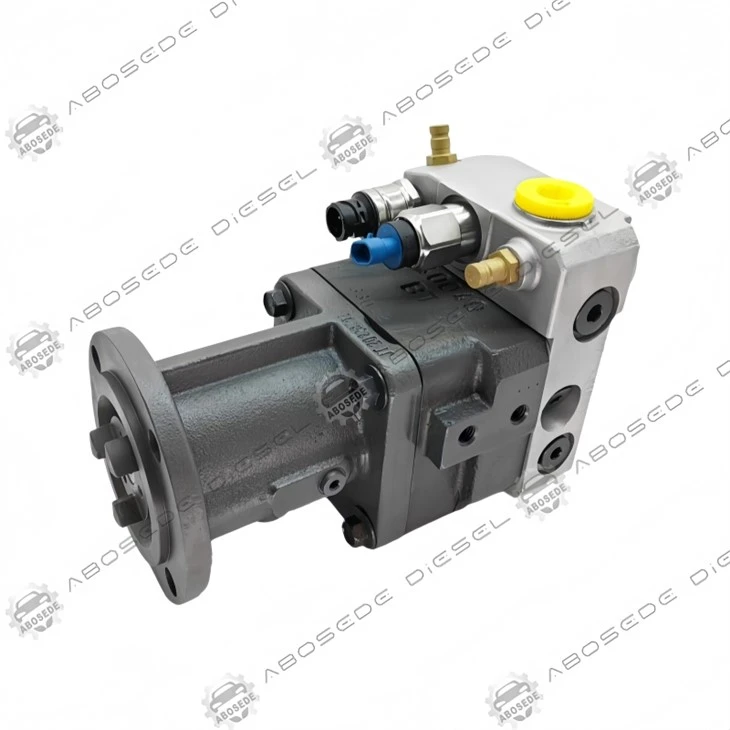

4307242 QSK60 Fuel Pump – Power Unit Upgrade For High‑Output Diesel Engines

The QSK60 engine platform is renowned for its modularity, allowing key subsystems to be upgraded or replaced as complete units rather than piecemeal components. The 4307242 is a complete power unit assembly for the QSK60 fuel system-a drop‑in replacement that includes the pump body, high‑pressure pumping elements, delivery valves, and all internal seals and bearings. This is not a component‑level rebuild kit; it is a factory‑balanced, ready‑to‑install power unit that eliminates the need for complex in‑shop lapping or clearance adjustments. For workshops and fleet maintenance operations, this translates to reduced downtime, consistent performance, and predictable service intervals-a significant advantage in mining, marine, and power generation applications where every hour of downtime carries a heavy cost. This article provides a detailed technical overview of the 4307242, covering its hydraulic specifications, application compatibility, and installation requirements.

The 4307242 is built around the QSK60's dual‑pumping‑element architecture, but with a key distinction: the entire assembly is pre‑calibrated and balanced at the factory. This means that the two pumping elements are matched for flow symmetry, the internal clearances are set to the optimal running values, and the pressure pulsation dampers are tuned to the specific delivery characteristics of the unit.

Key specifications:

The 4307242 is supplied with both the inlet and outlet check valves pre‑installed and factory‑tested. This eliminates the risk of incorrect valve seating or leakage that can occur during field assembly-a common failure point in component‑level rebuilds.

The 4307242 is the factory‑recommended power unit for QSK60 engines with either:

External PCV control (where the pump itself has no electrical connections)

Integrated IMV control (where the pump includes an inlet metering valve)

The specific pump head-whether it includes an IMV or not-is determined by the engine's wiring harness and ECU configuration. The 4307242 is available in both configurations; the correct variant must be selected based on the engine's build specification.

Typical applications:

Important: The 4307242 is not a universal fit for all QSK60 engines. Before ordering, verify the engine's current pump part number and the control system type (external PCV vs. integrated IMV) to ensure the correct power unit variant is supplied.

Plunger and Barrel Assembly:

Material : Powder‑metallurgy steel (DIN 1.2367 equivalent), nitrocarburised

Plunger diameter : 14.0 mm (IT4 tolerance, ground to ±0.001 mm)

Barrel bore : matched to plunger with 3 – 5 μm clearance at 20 °C

Surface finish : Ra ≤ 0.025 μm (lapping finish)

Helix geometry : Spiral‑ground, calibrated for linear fuel cutoff characteristic

Delivery Valve Assembly:

Type : Ball‑and‑seat with retraction feature

Retraction volume : 1.5 – 2.5 mm³ (prevents nozzle after‑dribble)

Opening pressure : 450 bar (nominal)

Seat angle : 60° (ground to ±0.5°)

Inlet Check Valve:

Type : Spring‑loaded poppet

Cracking pressure : 2.0 – 3.0 bar

Flow coefficient (Cv) : 0.15 (at full lift)

The 4307242 is designed for direct‑fit installation. However, the following steps are critical to ensure proper operation:

Oil priming: Before installation, fill the pump's inlet port with clean engine oil (or diesel) and rotate the drive shaft by hand (through the coupling) to distribute oil to the plunger surfaces. This prevents dry‑start scuffing.

Pump timing: The drive shaft must be locked at the correct angular position using the Cummins timing pin. A misalignment of even 1° will cause a 4–5% power loss and increased smoke.

Torque values (dry threads, clean):

Pump mounting bolts (M10, grade 10.9) : 80 Nm

High‑pressure outlet pipes to rail : 35 Nm

Return line connections : 25 Nm

Any electrical connections (IMV or PCV sensor) : follow manufacturer's specification

ECU learning: After installation, the ECU must be reset and allowed to relearn the fuel system's adaptions. This is done using diagnostic software-the process takes approximately 15 minutes and requires the engine to be at operating temperature.

Leak check: After the first run, visually inspect all high‑pressure connections for external leaks. A small weep is acceptable initially; persistent dripping indicates a damaged sealing cone or incorrect torque.

Q1: Is the 4307242 a direct replacement for the original pump on my QSK60, or does it require modifications?
A: It is a direct‑fit replacement-provided you order the correct variant (external PCV or integrated IMV). The mounting flange, drive coupling, and high‑pressure outlet positions are identical to the original pump. No modifications to the engine or fuel lines are required.

Q2: What is the advantage of a factory‑balanced power unit over a component‑level rebuild?
A: A factory‑balanced unit ensures that the two pumping elements deliver identical flow (±1.5% balance). In a component‑level rebuild, achieving this balance requires specialised test stand equipment and skilled calibration-things that are not always available in a field workshop. The balanced unit also eliminates the risk of mismatched components causing uneven cylinder‑to‑cylinder fuelling.

Q3: How often should the power unit be replaced on a QSK60 in mining service?
A: Under typical mining conditions (high load, continuous operation, 2,200 bar rail pressure), the power unit typically lasts 8,000–10,000 hours. However, this is highly dependent on fuel quality and filter maintenance. We recommend monitoring the return flow-when it exceeds 1.0 l/min at 1,600 bar, it is time to plan for replacement.

Q4: Can I install the 4307242 without replacing the external PCV or IMV?
A: Yes-the PCV or IMV is independent of the power unit. However, if the existing control valve is worn, it is advisable to replace it at the same time. A worn valve will limit the performance of the new power unit.

Q5: What is the correct procedure for storing a spare 4307242 power unit?
A: Store in its original packaging, with all ports sealed. Keep in a dry, temperature‑stable environment (5 – 40 °C). Do not rotate the drive shaft by hand-this can disturb the internal oil film and cause corrosion on the precision‑ground surfaces.

Q6: How do I verify that the new power unit is correctly timed without a timing pin?
A: The timing pin is the only accurate method. If a timing pin is not available, you can mark the pump's drive shaft position before removal and transfer the mark to the new unit. However, this method is only approximate (±1° accuracy) and may result in a slight power loss. We strongly recommend using the correct timing tool.
