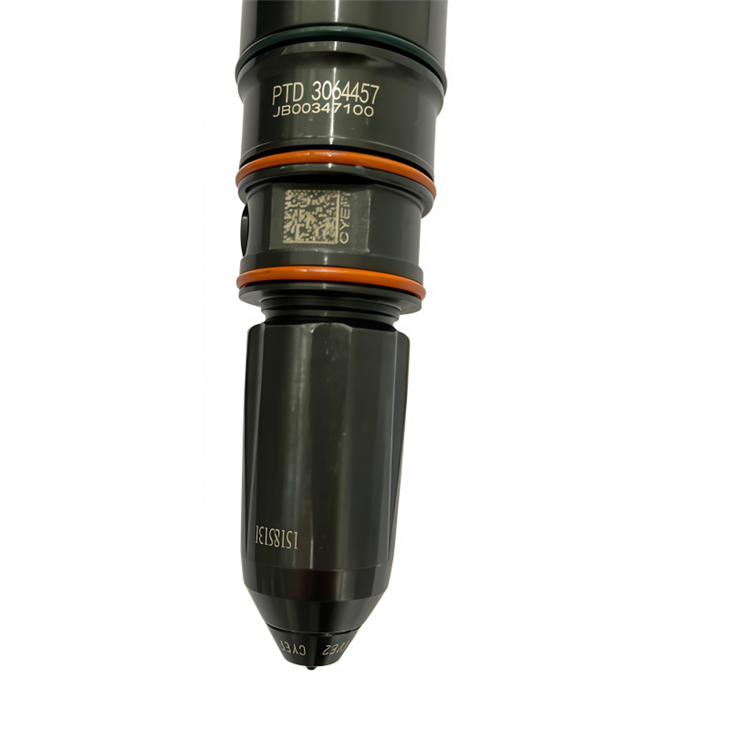

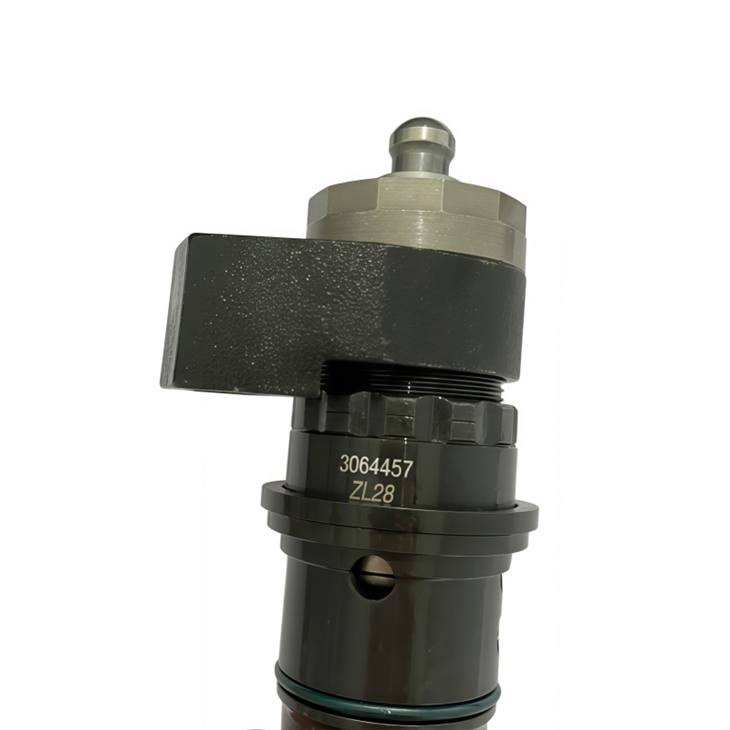

The Power Upgrade: 3064457 NT855-G4 Injector For High-Horsepower Conversions



In the high-stakes world of industrial diesel upgrades, few components bridge the gap between mechanical heritage and modern performance quite like the 3064457 injector. Designed specifically for the NT855-G4 engine platform-often utilized in heavy-duty railcars, generator sets, and specialized conversions-this injector is not merely a replacement part; it is a critical enabler of power density. This analysis focuses on the injector's role within the Step Timing Control (STC) system, a unique architecture that allows the N855 series to achieve horsepower ratings up to 450 HP. We explore how the 3064457 manages extreme injection pressures and thermal loads, ensuring that "hot" running engines maintain consistent fueling without vapor lock or cavitation.



🔍 Technical Overview & Application Scope



The NT855-G4 designation typically refers to a high-output configuration of the legendary Cummins N-series engine, often found in demanding applications like the Chongqing Cummins modifications for rail tractors or heavy-duty pumping units. The 3064457 injector is calibrated to support these high-horsepower profiles.

Primary Fitments: NT855-G4 Industrial Engines, High-Power Rail/Track Vehicles, Modified NTA855 Platforms.

System Type: Compatible with STC (Step Timing Control) systems where injection timing and rate shaping are mechanically or hydraulically actuated.

Operational Goal: To deliver precise fuel metering under high-load conditions, supporting the "torque rise" characteristics required for heavy traction or step-load generation.





Unlike standard P-type injectors, the 3064457 is engineered to withstand the specific hydraulic dynamics of the G4 configuration. It features a robust plunger and barrel assembly designed to resist wear from high-sulfur or variable-quality fuels often encountered in industrial sectors.

Specification Parameter	Performance Metric
Part Number	3064457 (NT855-G4 Series)
Application	High-Horsepower (400-450 HP) Configurations
Injector Type	STC / Mechanical Unit Injector
Plunger Design	Hardened Alloy (Wear Resistant)
Spray Pattern	Multi-Hole Nozzle (Optimized for Deep Bowl Pistons)

Engineering Note: The "G4" suffix implies a specific governor and camshaft profile. The 3064457 injector must match this profile exactly; using a standard NTA855 injector here would result in incorrect timing and potential piston damage due to retarded combustion.





Selecting the 3064457 requires a nuanced understanding of the engine's internal architecture. This is not a generic drop-in part for all N-series engines.

STC vs. Non-STC: The most critical selection logic is verifying the presence of the STC system. The 3064457 is designed to interact with the STC tappet mechanism. Installing this in a non-STC engine (or vice versa) will cause catastrophic failure as the injection timing events will be completely desynchronized.

Horsepower Calibration: In "G4" applications, the engine is often pushing the limits of its displacement (e.g., 450 HP). The 3064457 is flow-calibrated to deliver the higher volume of fuel required for these outputs without leaning out the mixture under full load.

Thermal Tolerance: High-output engines run hotter. This injector model utilizes materials and clearances designed to expand predictably under heat, maintaining the seal against combustion gases even when the cylinder head temperature exceeds standard operating ranges.





Maintaining the 3064457 involves strict adherence to torque specifications and cleanliness protocols.

Torque-to-Yield Awareness: The hold-down clamps for these injectors are critical. Over-torquing can crack the injector body, while under-torquing allows combustion gas to leak into the rocker box (blow-by), contaminating the oil.

Fuel Lubricity: Since the plunger relies on fuel for lubrication, low-lubricity fuels (like ultra-low sulfur diesel without additives) can cause scoring. Regular use of lubricity additives is recommended to extend the life of the 3064457.

Timing Verification: After installation, the injector timing must be verified using a dial indicator or timing tool specific to the N855 series. Incorrect timing will lead to hard starting, excessive smoke, or overheating.



What makes the 3064457 suitable for 450 HP applications?
The injector is calibrated with a specific flow rate and spray pattern that supports the increased air handling capabilities of the G4 turbocharger setup, ensuring complete combustion at high torque outputs.

Can I use this injector in a standard NTA855 truck engine?
No. The 3064457 is tuned for the specific cam timing and STC mechanism of the G4 industrial engine. Using it in a standard truck engine will likely result in poor performance and potential engine damage.

What is the role of the STC valve in relation to this injector?
The STC (Step Timing Control) valve modifies the injection rate shape. The 3064457 works in tandem with the STC tappet to delay the start of injection slightly, reducing peak firing pressures and NOx emissions while maintaining power.

Why is my engine smoking after installing new 3064457 injectors?
If smoking occurs, check the injector timing first. The G4 system is sensitive to timing settings. Additionally, ensure you have bled the fuel system completely, as air pockets can cause erratic spray patterns.

Does this injector require coding?
No, unlike modern electronic common rail injectors, the 3064457 is a mechanically actuated unit. It does not require electronic coding, but it does require physical timing adjustment during installation.

How do I identify if the STC system is failing?
Symptoms include erratic RPM, knocking noises from the valve train, or an inability to reach rated speed. This often indicates wear in the STC tappets or the injector's internal plunger.
