The Physics Of Balance: 3071494 NT855-G4 Injector & Hydraulic Equilibrium

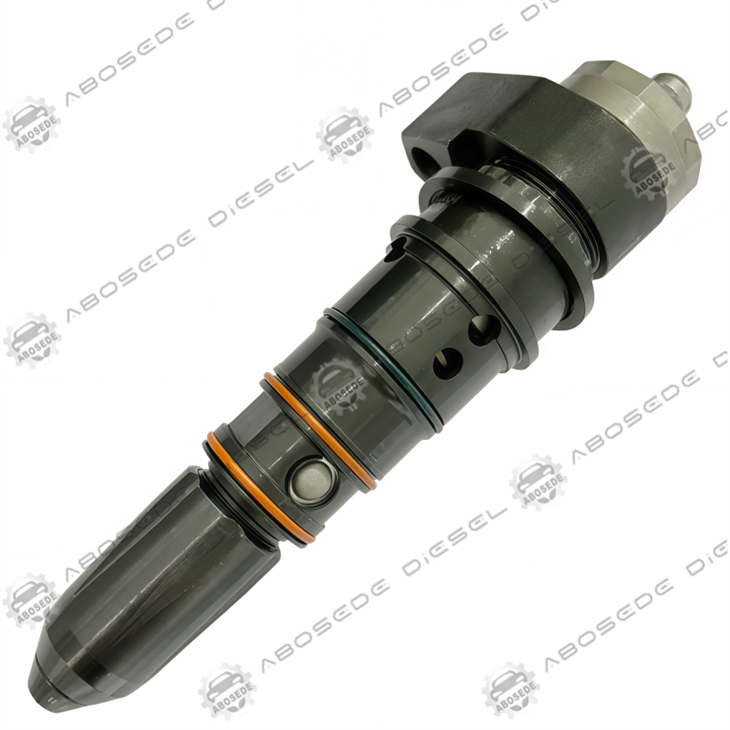

In the realm of high-horsepower industrial diesel engines, raw power is meaningless without control. The 3071494 NT855-G4 Injector represents the pinnacle of mechanical fuel management for the legendary Cummins N-Series platform. This product detail page moves beyond simple part replacement to explore the concept of "Injection Rate Shaping." In the G4 configuration-often utilized in heavy-duty rail, marine, and generator set applications-the ability of the injector to manage the rate at which fuel enters the cylinder is just as critical as the total volume. We analyze how the 3071494 maintains hydraulic equilibrium within the STC (Step Timing Control) system, ensuring that peak firing pressures are optimized for torque production without compromising the structural integrity of the piston or connecting rods.



🔍 Technical Overview & Application Scope



The NT855-G4 engine is a beast of burden, often found in continuous-duty cycles where reliability is non-negotiable. The 3071494 injector is not a generic component; it is a precision-tuned device calibrated specifically for the G4 camshaft profile and governor settings.

Primary Fitments: Cummins NT855-G4 Industrial Engines, Heavy-Duty Railcar Propulsion Units, Marine Auxiliary Power, and High-Output Generator Sets (Gen-Drives).

System Architecture: Compatible with STC (Step Timing Control) systems, which utilize a unique tappet design to alter injection timing based on load.

Operational Goal: To deliver a precise "boot" injection-a secondary shot of fuel designed to sustain pressure during the combustion stroke, maximizing thermal efficiency and reducing black smoke under heavy load.





To withstand the rigors of the G4's high-output cycle, the 3071494 features a reinforced barrel and plunger assembly. Unlike standard P-T injectors, this unit is engineered to interact dynamically with the STC tappet, managing two distinct injection phases.



Specification Parameter	Performance Metric
Part Number	3071494 (NT855-G4 Series)
Injector Type	STC Unit Injector (Mechanical)
Horsepower Rating	Calibrated for 400HP - 450HP Applications
Plunger Diameter	Large Bore (High Volume Displacement)
Spray Pattern	Optimized for Deep-Bowl Combustion Chambers

Engineering Note: The "G4" designation implies a specific governor spring set and cam timing. The 3071494 is flow-matched to these parameters. Using a standard NTA855 injector in a G4 application would result in insufficient fuel delivery during the "boot" phase, leading to power loss and overheating.





Selecting the 3071494 requires rigorous verification of the engine's internal architecture. This is not a "drop-in" part for all N-series engines; it is a specialized component for the STC ecosystem.

Tappet Interaction: The 3071494 is designed to work exclusively with STC tappets. These tappets have an internal oil piston that modifies the injector timing. If you install this injector in a non-STC engine (or with solid tappets), the injection timing will be drastically retarded, causing catastrophic engine failure due to after-burn.

Flow Calibration: In G4 applications, the engine is often tuned to the upper limits of the N-series block's capability. The 3071494 provides the necessary volumetric flow to support this horsepower without leaning out the mixture.

Spring Rate Matching: The internal return springs are rated for the specific lift profile of the G4 cam. Using a softer spring (from a lower HP model) can cause the plunger to "float" at high RPMs, destroying the injector and potentially dropping valves into the cylinder.





Maintaining the 3071494 NT855-G4 involves a strict regimen of torque checks and cleanliness.

Torque-to-Yield Clamps: The injector hold-down clamps must be torqued to exact OEM specifications (typically using a torque-angle method). Over-tightening cracks the injector body; under-tightening allows combustion gases to blow past the cup, carbonizing the injector tip.

Timing Verification: Because the STC system relies on oil pressure to advance/retard timing, verifying the injector timing with a dial indicator is essential after installation. The 3071494 has specific dimension codes that must align with the camshaft position.

Fuel Filtration: While mechanical, the clearances inside the 3071494 are microscopic. Water in the fuel is the enemy, as it destroys the lubricating film between the plunger and barrel, leading to seizure.



Why does my engine knock loudly when I install 3071494 injectors?
This usually indicates a mismatch in tappets. The 3071494 is an STC injector. If your engine has solid (non-STC) tappets, the timing will be incorrect, causing severe detonation (knocking). Verify your tappet type before installation.

What is the difference between a 3071494 and a standard NTA855 injector?
The primary difference is the "boot" calibration and flow rate. The 3071494 is designed to inject fuel in a specific shape (rate shaping) required by the G4 camshaft to reduce emissions and manage cylinder pressure, whereas standard injectors have a simpler injection curve.

Can I adjust the spray pattern on this injector?
No. The nozzle valve and seat are lapped to sub-micron tolerances. Attempting to clean or adjust the spray pattern manually will ruin the atomization quality, leading to piston burning.

How do I test the 3071494 without an electronic tester?
Since this is a mechanical unit, you use a "pop tester" (hand pump) to check the opening pressure and spray pattern. You should see a fine, conical mist. However, testing the "STC function" requires checking the tappet oil pressure on the engine.

What causes "after-run" or "dieseling" with these injectors?
If the engine continues to run after shutdown, it may be due to a leaking injector needle. The 3071494 needle must seat perfectly to cut off fuel. Carbon buildup on the seat can prevent this sealing, allowing fuel to drip into the hot cylinder.

Is the 3071494 compatible with Common Rail conversions?
No. This is a mechanically actuated unit injector. It cannot be used in a Common Rail system, nor can a Common Rail injector be used in place of this unit without a complete engine conversion kit.
