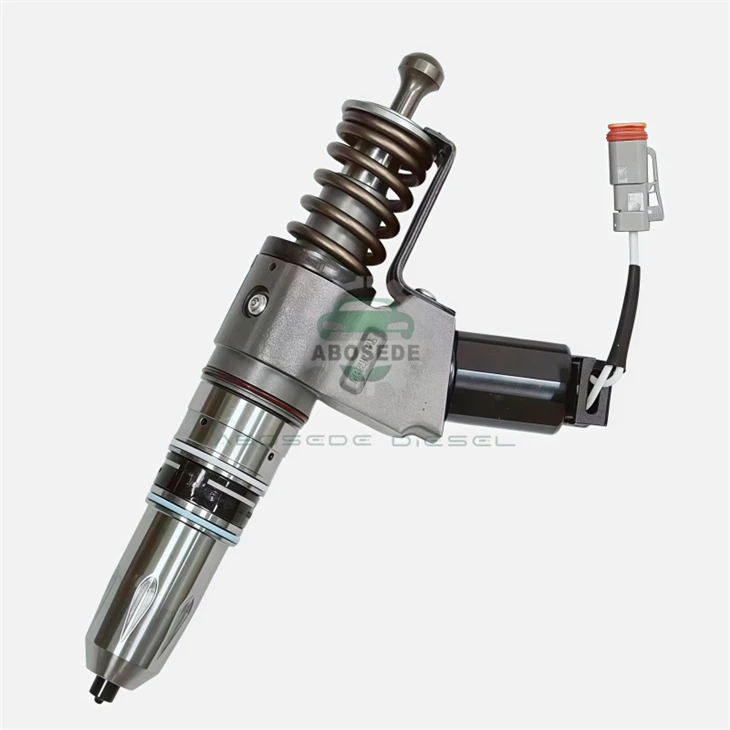

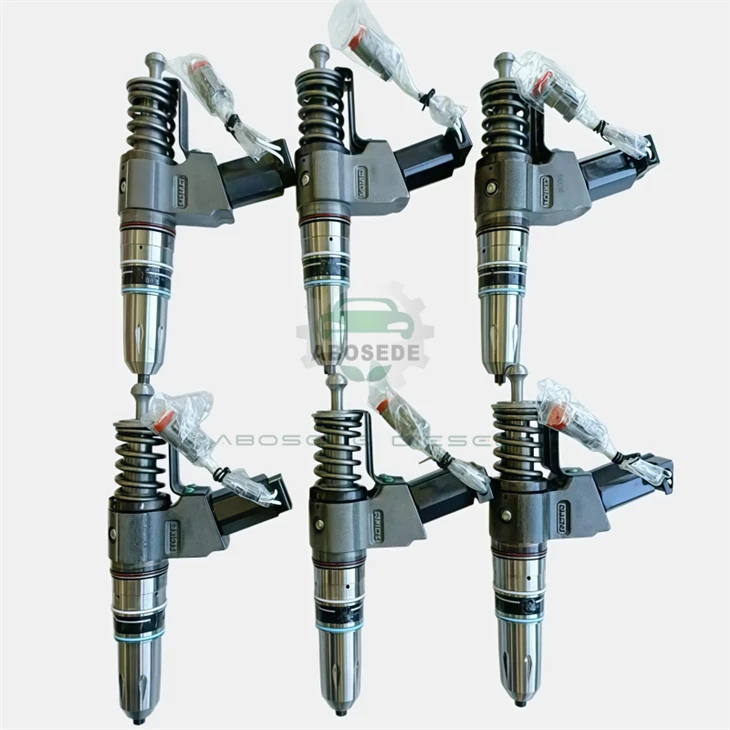

Maximize Horsepower: Cummins N14 Injector 3411762 For High-Performance Applications

In the realm of heavy-duty diesel performance, not all injectors are created equal. While the external housing may look identical to other N14 units, the internal calibration of the Cummins N14 Injector 3411762 is distinct. This part number is specifically engineered for high-output applications, often associated with the "Big Cam IV" or specific high-horsepower CELECT configurations.





Horsepower Matching: This injector is calibrated to deliver a specific volume of fuel per stroke (cc/1000 strokes). Using a lower-flow injector in a high-demand engine results in lean running conditions and excessive Exhaust Gas Temperatures (EGT).

Torque Curve Optimization: The 3411762 is designed to support the engine's torque rise characteristics, ensuring that under heavy load-such as climbing a grade-the engine receives adequate fuel to maintain momentum without bogging down.

OEM Cross-Reference: Always cross-reference your existing part number. If your engine requires a "high-flow" or specific timing variant, the 3411762 is the critical match to restore factory-rated performance.





Precision is paramount when dealing with the Cummins PT (Pressure-Time) fuel system. The following data points define the operational limits and design standards of the 3411762.



Feature	Specification
Part Number	3411762
Engine Compatibility	Cummins N14 (High Output / Big Cam IV variants)
Fuel System Type	PT (Pressure-Time) Mechanical Unit Injector
Nozzle Configuration	Precision multi-orifice tip for optimized spray cone
Material Build	Hardened tool steel plunger/barrel; corrosion-resistant body
Adjustment Method	Torque-Angle or Feeler Gauge (depending on specific head setup)
Operating Environment	High vibration, extreme temperature ranges (-40°C to +85°C)





The core function of the 3411762 injector extends beyond simply moving fuel; it is about atomization. In the N14 engine, combustion efficiency is directly tied to how finely the fuel is misted into the cylinder.

The Physics of the Spray Pattern:
The nozzle tip of the 3411762 features microscopic orifices machined to exact tolerances. When the camshaft lobe drives the rocker arm, forcing the plunger downward, immense pressure is generated within the cup. This pressure forces fuel through the orifices at supersonic speeds.

Droplet Size: A properly functioning 3411762 produces droplets small enough to vaporize instantly upon contact with compressed air.

Penetration vs. Dispersion: The spray pattern is balanced to penetrate the turbulence in the combustion chamber without impinging on the piston walls. Impingement leads to carbon buildup and piston erosion-a common failure mode this injector is designed to prevent.





Use the Correct Tooling: Always use the dedicated ST-669 or equivalent top-stop gauge. Do not rely on "feel."

O-Ring Integrity: The 3411762 utilizes multiple O-rings. The upper rings seal oil, while the lower rings seal fuel and compression. Replacing these with a high-quality Viton seal kit is mandatory during installation.

Torque Sequence: Follow the manufacturer's sequence for the hold-down clamp bolts to ensure even clamping force, preventing distortion of the injector body which can cause the plunger to bind.





Q1: Will the 3411762 injector increase my truck's fuel economy?
A1: While it won't necessarily "increase" MPG beyond factory specs, a fresh set of 3411762 injectors restores lost efficiency. Worn injectors waste fuel through poor atomization and dribble. Properly calibrated new injectors ensure every drop is burned for power.

Q2: Can I install just one 3411762 injector if only one fails?
A2: Technically yes, but it is not recommended. Mixing a new, high-flow injector with five worn ones can create an imbalance in cylinder temperatures, potentially leading to head cracking or uneven engine smoothness. Ideally, replace them in sets.

Q3: What is the difference between the 3411762 and the 3411760?
A3: While they fit the same engine block, the internal calibration (flow rate and timing) differs. The 3411762 is often tuned for a specific horsepower rating. Swapping them without checking the engine dataplate can alter the engine's power output and emissions profile.

Q4: How do I know if my injector cups are bad when changing the 3411762?
A3: If you see coolant in the oil, or bubbles in the radiator while cranking, the cup is likely eroded or cracked. The injector cup is a press-fit component; if damaged, it must be removed with a specialized puller tool before installing the new injector.

Q5: Does the 3411762 require electronic calibration?
A3: No. The N14 uses a mechanical PT system. The 3411762 is adjusted mechanically via the rocker arm jam nut and adjusting screw. However, if installed on a Celect Plus engine, the electronic solenoid harness must be carefully connected to avoid ECU faults.

Q6: Why is there black smoke after installing these injectors?
A6: Black smoke indicates incomplete combustion. This could be due to an intake restriction (clogged air filter), a boost leak (turbocharger issue), or the injectors being adjusted "rich" (too much fuel). Verify air intake pressure first.
