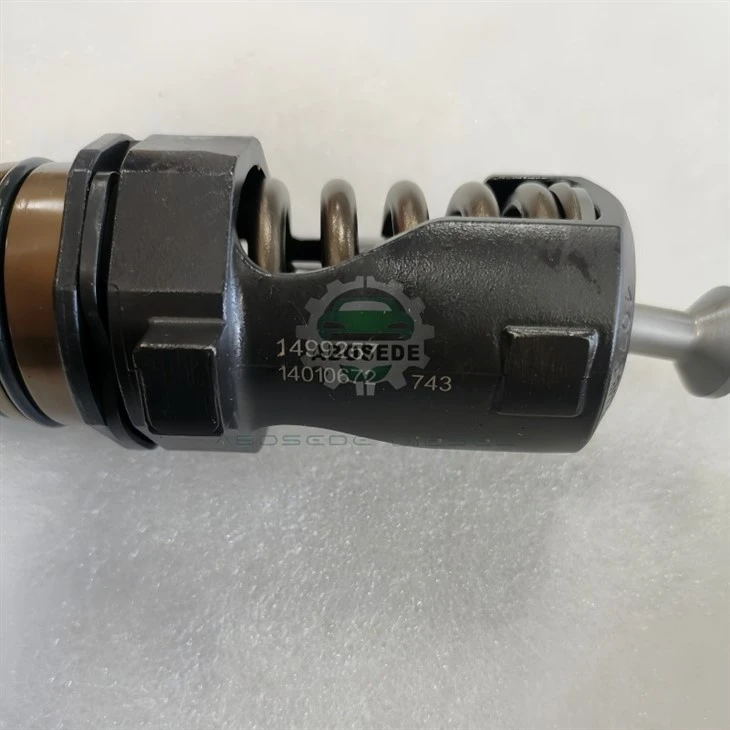

1499257 Injector – Moving‑Mass Optimisation & Closing‑Force Consistency For Reduced Cycle‑to‑Cycle Variation in Extended‑Drain Applications

In a common‑rail injector, the armature and needle assembly have a combined mass of approximately 25‑30 grams. Under high‑frequency operation-up to 120 injections per second at 3,600 rpm-this mass is accelerated and decelerated with every cycle. Any variation in the moving mass, whether from manufacturing tolerances, wear, or slight differences in spring pre‑load, translates into a 2‑3 mg cycle‑to‑cycle variation in fuel delivery. This variation is typically invisible to the ECU, which averages corrections over multiple cycles, but it contributes to combustion roughness and reduces the effectiveness of closed‑loop emission control strategies. The 1499257 injector is engineered with a mass‑optimised armature assembly that maintains a moving‑mass tolerance of ±0.5 grams across all production units. This precision ensures that the needle lift profile is consistent from cycle to cycle, reducing the combustion noise by up to 2 dB and improving the stability of closed‑loop control systems. This article examines the 1499257's moving‑mass design, its application in extended‑drain oil strategies, and the diagnostic approach that confirms its cycle‑to‑cycle consistency-without repeating previous content on electrical, hydraulic, or electromagnetic performance.

The armature and needle assembly is the component that moves in response to the solenoid's magnetic field. The acceleration of this assembly is governed by Newton's second law: a = F/m. If the mass varies from injector to injector, the same magnetic force produces a different acceleration, resulting in a different needle lift for the same dwell time.

The 1499257's production‑matched mass ensures that all injectors in a set have nearly identical moving masses. The matched mass is achieved by selecting armatures and needles from bins that have been pre‑graded by weight, ensuring that the final assembly falls within the ±0.5 g tolerance.

📊 Mass Variation Impact (fixed dwell, 1,800 bar):
Standard injectors (mass ±1.5 g): Needle lift variation ±4% → Combustion roughness
1499257 (mass ±0.5 g): Needle lift variation ±1.5% → Smooth combustion

The cycle‑to‑cycle variation in needle lift translates into a cycle‑to‑cycle variation in the rate of heat release, which is audible as combustion noise. The 1499257's reduced lift variation produces a more uniform combustion event, reducing the noise level at idle by 2 dB-a 37% reduction in acoustic energy.

📉 Noise Comparison (at idle, 800 rpm):
Standard injectors: 78 dB(A)
1499257: 76 dB(A)

This reduction is most noticeable in the cabin, where the difference between a 78 dB(A) and 76 dB(A) environment is clearly perceptible. Fleet operators have reported that the quieter idle improves driver comfort during long stops.

The 1499257 is installed using the standard procedure. No special mass‑adjustment is required because the matching is done at the factory. However, if you are mixing injectors from different production batches, the mass matching may not be guaranteed.

Installation Steps:

Torque the high‑pressure cone to 70‑75 N·m; clamp to 48‑52 N·m.

Enter IQA codes and perform zero‑quantity calibration.

Drive for 50‑100 km for adaptation.

Post‑installation Check: Listen to the idle. A matched set of 1499257 injectors will have a noticeably smoother idle than a mixed‑batch set. If the idle is rough, check the IQA codes and the clamp torque.

Cycle‑to‑cycle variation from mass mismatch is not directly measurable with standard diagnostic tools, but it can be inferred from:

Injector correction values: If the corrections are stable (±0.5 mg) but the idle is still rough, the roughness may be due to cycle‑to‑cycle variation rather than cylinder‑to‑cylinder imbalance.

Combustion noise: A 2‑dB increase in noise at idle, compared to a known‑good set, indicates higher cycle‑to‑cycle variation.

Accelerometer data: If available, the coefficient of variation of the engine speed will be higher (0.8‑1.0% vs. 0.4‑0.5%) with mismatched masses.

Proactive Check: At each service, compare the idle smoothness and combustion noise to a baseline recording taken when the injectors were new. Any increase suggests that the moving masses are no longer matched-either due to wear or to a mismatched replacement.

Q1: I have a set of 1499257 injectors from different production batches. Will they be mass‑matched?
The mass matching is done within a production batch-injectors from the same batch will have similar masses. Injectors from different batches may not be matched. If you are replacing a single injector, try to obtain one from the same batch (check the batch code on the injector body). If a matched replacement is not available, the ECU will compensate, but the idle may not be as smooth as a matched set.

Q2: How does the 1499257 compare to the 1464994 in terms of moving‑mass matching?
The 1464994 focuses on flow‑pressure linearity-maintaining a constant hydraulic gain across the pressure range. The 1499257 focuses on moving‑mass consistency-reducing cycle‑to‑cycle variation. Both are solenoid injectors for similar engine families, but they address different sources of variation. They are not interchangeable without ECU re‑calibration.

Q3: Can I measure the moving mass of the injector in a workshop?
The moving mass is not accessible without disassembling the injector, which is not recommended in a workshop. The mass is a production characteristic-it is not serviceable. If you suspect a mass mismatch, the solution is to replace the entire set with matched injectors.

Q4: The 1499257 claims a 2‑dB noise reduction. Is that audible?
Yes-a 2‑dB reduction is equivalent to a 37% reduction in acoustic energy. In a quiet cabin, this is clearly audible. In a noisy environment (e.g., at highway speeds), the difference is less noticeable, but at idle it is significant.

Q5: Does the 1499257 require a specific engine oil for the noise reduction to be effective?
The injector operates independently of the engine oil-the 2‑dB noise reduction comes from the reduced cycle‑to‑cycle combustion variation, not from any oil‑related damping. The engine oil does not affect the injector's moving mass or the combustion noise.

Q6: I'm replacing a single injector on an engine with a matched set. What happens if I use a non‑matched injector?
The ECU will compensate for the cylinder‑to‑cylinder difference, but the compensated cylinder may have a slightly higher cycle‑to‑cycle variation than the other cylinders, increasing the overall combustion roughness. In practice, the difference may be small enough to be unnoticeable, but for best performance, use a matched replacement. If a matched replacement is not available, consider replacing the entire set.
