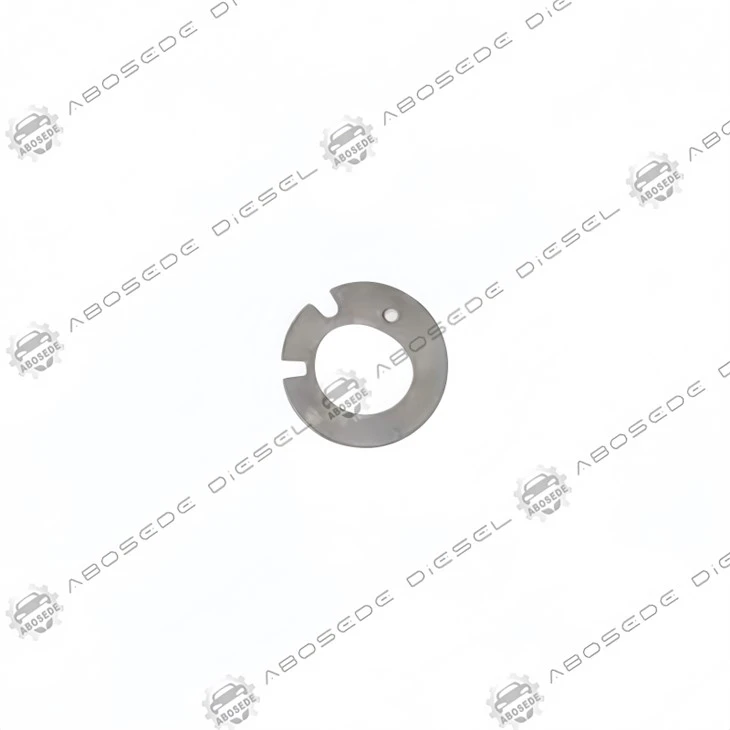

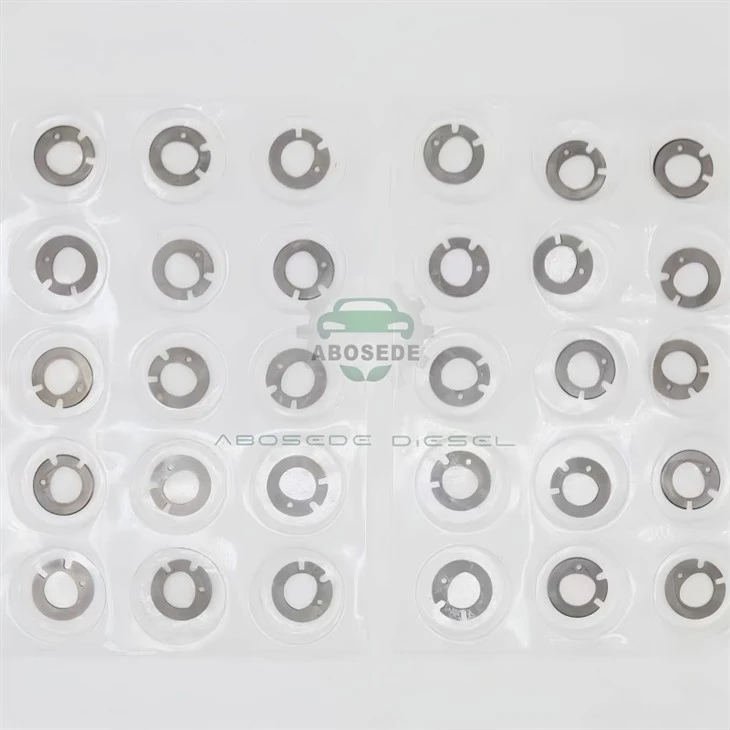

CAT 3500B Control Valve Gasket – High-Compression Spacer For EUI Injector Stack | 3.0 N·m Clamp Rated



In the Caterpillar 3500B EUI (Electronic Unit Injector) system-a platform that powers 16-cylinder marine propulsion, 2.5 MW gen-sets, and mining haul trucks-the control valve gasket executes a function that is uniquely critical: it maintains the hydraulic column integrity within the injector's high-pressure actuation circuit. Unlike smaller MEUI engines where the gasket primarily serves as a spacer or travel limiter, the 3500B's gasket must withstand actuation pressures reaching 28 MPa while preserving the fluid column's rigidity between the control valve and the intensifier piston. Any loss of thickness in this gasket reduces the preload on the actuation fluid column, introducing compressibility (sponginess) that delays pressure transmission by 0.15–0.20ms. At 1,800 RPM (the 3500B's typical rated speed), this delay translates to a 2° injection timing retardation, causing elevated exhaust gas temperatures and increased turbocharger stress.

Our product is an engineering-grade control valve gasket specifically developed for the 3500B's high-pressure EUI injector stack, manufactured from a multi-layer metallic-elastomeric composite that combines crush resistance with fluid sealing. This gasket is designed to maintain the actuation fluid's hydraulic rigidity under sustained high-pressure operation, ensuring consistent injection timing across all 16 cylinders.



This gasket is dimensionally validated for the following 3500B engine configurations and serial number groups:

Engine Model	Serial Prefix	Primary Application	Speed Rating
3508B	9HN, 2AW	Marine propulsion / gen-set	1,800 RPM (60 Hz)
3512B	3DM, 4TN	Mining haul truck / excavator	1,750–2,100 RPM
3516B	5PS, 6NZ	Large gen-set / marine main	1,500–1,800 RPM
3516B HD	7TJ, 8PK	High-displacement industrial	1,800 RPM constant

Critical Dimensional Note: The 3500B control valve gasket features an outer diameter of 42.0mm-significantly larger than all C-series gaskets (C12: 34.5mm; C15: 35.2mm). Its uncompressed thickness is 1.50mm with a central orifice of 5.10mm. These dimensions are specific to the 3500B's larger injector architecture and are not interchangeable with any smaller MEUI engine components.



For the 3500B, the gasket's performance is quantified by its influence on the actuation fluid's bulk modulus within the injector. The following data is derived from high-frequency pressure transducer measurements during injector operation:

Parameter	New Gasket Specification	Replacement Threshold
Hydraulic Column Rigidity (pressure transmission delay)	< 0.12ms	> 0.18ms (timing retardation)
Static Leak Rate (28 MPa actuation oil)	0.0 mL/min (bubble-tight)	> 0.2 mL/min (internal leakage)
Uncompressed Thickness	1.50 mm ±0.015mm	< 1.42mm (compression set failure)
Crush Resistance (maximum load before yield)	> 4,000 N	N/A (design safety margin)
Thermal Dimensional Change (20°C → 140°C)	< 0.01mm	> 0.03mm (material degradation)

Graphical Abstraction – The "Pressure Transmission Delay" Model:
Visualize the injector as a hydraulic amplifier: the control valve opens, releasing pressure from the actuation column, which then allows the intensifier piston to move. The gasket's thickness determines the initial volume of the actuation column. A thinner gasket reduces this volume, meaning less fluid is available to transmit the pressure drop. This reduces the hydraulic multiplication effect, effectively lowering the injection pressure for the same plunger stroke. Our 1.50mm gasket restores the factory column volume, ensuring that the full 28 MPa actuation pressure is transmitted to the intensifier piston.



The 3500B's higher pressures and larger injector dimensions require a gasket that combines the rigidity of metal with the conformability of elastomer. Our design incorporates:

Outer Carrier Ring (Steel): A 0.5mm thick stainless steel ring that provides structural rigidity and ensures the gasket does not extrude under 28 MPa pressure. The steel ring also acts as a crush stop, limiting maximum compression to 0.20mm to prevent over-tightening damage to the aluminum injector body.

Elastomeric Sealing Layer (FKM): A 0.6mm layer of high-fluorine fluoroelastomer bonded to both faces of the steel ring. This layer conforms to surface irregularities on the valve body and the spacer, providing zero-leak sealing while allowing slight accommodation for thermal expansion mismatches.

Orifice Insert (Brass): A precision-machined brass ring press-fitted into the center, defining the 5.10mm orifice with a tolerance of ±0.01mm. The brass material resists erosion from high-velocity actuation oil flow.

Visual Innovation – Thickness Color Code System:
Each gasket is laser-engraved with a color-coded ring on the outer edge:

Silver ring = 1.48–1.50mm

Gold ring = 1.50–1.52mm
This system allows technicians to quickly verify the correct thickness without removing the gasket from the injector stack.



The 3500B's larger injector stack requires precise measurement of total stack height before and after gasket installation:

Step 1 – Baseline Measurement: With the old gasket in place, measure the distance from the injector body face to the top of the control valve spacer using a depth gauge. Record this value.

Step 2 – Gasket Replacement: Remove the old gasket, clean both mating surfaces, and install the new gasket with the brass orifice insert centered over the fluid passage.

Step 3 – Torque Application: Tighten the retainer bolt to 3.0 N·m-the 3500B uses a larger M6 bolt compared to the C-series M5. Apply torque in three stages: 1.0 → 2.0 → 3.0 N·m.

Step 4 – Post-Installation Measurement: Remeasure the stack height. It should increase by exactly 1.50mm ±0.02mm (the gasket thickness). Any deviation indicates misalignment or contamination.

Hydraulic Test: After installation, manually cycle the injector using a test bench to verify that the pressure transmission delay is within the 0.12ms specification. A delay exceeding 0.18ms indicates the gasket is either too thin or not seated correctly.



Q1: Our 3516B gen-set has uneven exhaust temperatures across cylinders. The engine has 6,000 hours. Could the gaskets be the cause?
Yes-uneven gasket wear across different cylinders (due to thermal gradients in the engine block) creates varying column rigidities, causing each injector to have slightly different timing. This manifests as exhaust temperature spreads exceeding 50°C. Replacing all 16 gaskets as a matched set typically reduces temperature spread to below 25°C.

Q2: How does this gasket compare to the OEM version in high-sulfur fuel environments?
Our FKM elastomer is formulated with a higher fluorine content (70% vs. OEM's 66%), providing superior resistance to sulfur-induced hardening. In markets where > 500 ppm sulfur fuel is still used, our gasket maintains its elastomeric properties for approximately 2,000 additional hours compared to OEM.

Q3: The retainer bolt torque spec for the 3500B is 3.0 N·m. Can I use a lower torque to protect the threads?
No-the 3.0 N·m spec is required to achieve the necessary 3,200 N clamp load. Under-torquing to 2.5 N·m reduces clamp load by 20%, which reduces the gasket's crush and allows the elastomeric layer to relax over time, increasing the actuation column volume and retarding timing. This will reduce engine power by approximately 2%.

Q4: Our 3500B operates in a marine environment with high vibration. Does this gasket have any vibration-resistant features?
The steel outer carrier ring provides a rigid clamp path that resists vibrational loosening of the retainer bolt. Additionally, the FKM elastomer has a damping coefficient of 0.12, which absorbs high-frequency (200–500 Hz) vibrations that would otherwise cause fretting wear on the gasket faces.

Q5: Can this gasket be used on a 3500B that has been converted to natural gas/diesel dual-fuel?
Dual-fuel conversions typically reduce diesel injection pressure, which lowers the actuation pressure. This is not a problem-the gasket will still seal and provide the correct spacing. However, the reduced pressure means the elastomeric layer may not be fully compressed; we recommend checking the stack height to ensure the gasket is properly seated.

Q6: What's the shelf life of this gasket, and how should it be stored?
The metallic-elastomeric construction has a shelf life of 5 years when stored in the supplied anti-static bag at 15–25°C. Avoid stacking heavy objects on the gaskets, as the steel ring can deform under sustained point loads.

---
