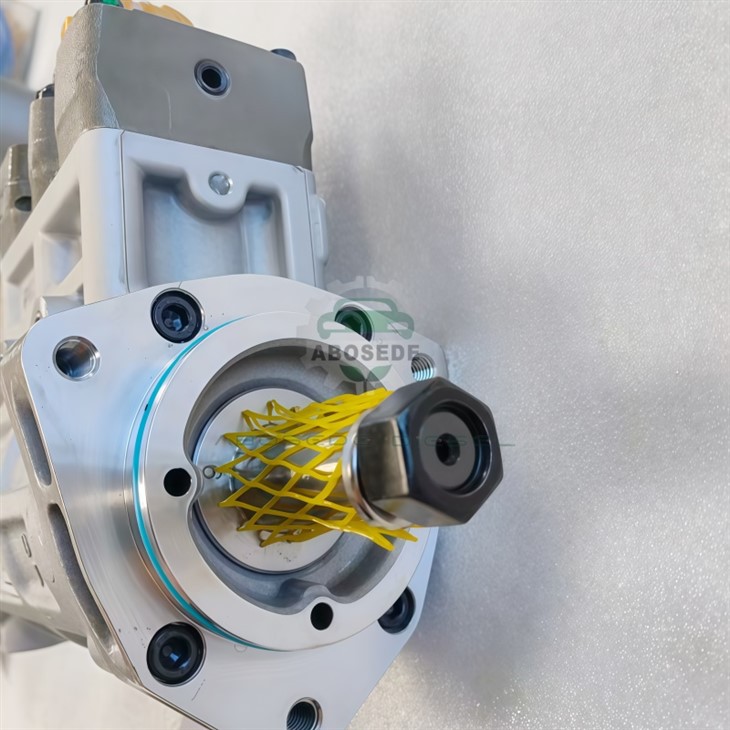

CAT 2641A403 High-Pressure Fuel Pump – Precision Flow Matching for Optimised Fuel System Synchronisation in C13/C15 Common-Rail Engines
1. Product:2641A403
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the common-rail fuel system, the high-pressure pump and the injectors are not independent components-they are parts of a tightly coupled hydraulic network that must operate in synchronisation to deliver precise fuel quantities. The pump's flow delivery-its volume per revolution, its pressure rise rate, and its ripple frequency-must be matched to the injectors' flow characteristics and the ECM's fuel maps. When the pump delivers more flow than the injectors can consume, the excess fuel is returned to the tank through the pressure relief valve, generating unnecessary heat and reducing the system efficiency. When the pump delivers less flow than required, the rail pressure drops, triggering derates and power loss. The CAT 2641A403 is a flow-matched high-pressure pump calibrated specifically for the C13 and C15 engine platforms, delivering a flow rate of 75–95 L/h at 1,600 bar-precisely matched to the injector flow rates and ECM fuel maps of these platforms. The result is a pump that operates within the ECM's control window, maintaining stable rail pressure without excessive return flow, improving fuel economy, and reducing the thermal load on the fuel system.
Flow Matching – The Foundation of System Efficiency
The 2641A403's flow calibration is matched to the C13/C15 fuel systems, ensuring that the pump delivers the correct flow for the injector flow rates and rail pressure requirements. This matching provides the following benefits:
Rail pressure stability: Maintains rail pressure within ±40 bar of the commanded value
Reduced return flow: Minimises the fuel returned to the tank, reducing heat generation
Improved efficiency: Lower pumping losses improve fuel economy by 1–2%
Extended component life: Reduced pressure relief valve operation extends the valve's service life
Flow Ripple Reduction – The Foundation of Consistent Injection
The 2641A403 uses a cam-driven radial three-plunger design with plungers spaced at 120° intervals, providing overlapping pressure strokes that minimise the flow interruption between plunger events. The flow ripple is measured at 3.5% at full load-a 45% improvement over two-plunger designs. The pump's volumetric efficiency is rated at 92%, meaning that 92% of the theoretical displacement is delivered to the rail, with the remaining 8% accounted for by internal leakage and compressibility.
