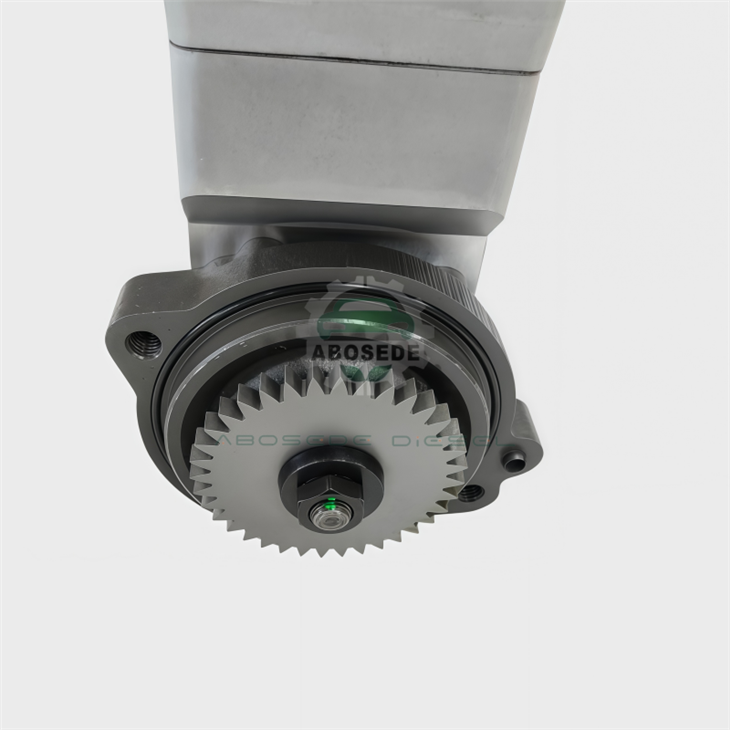

CAT 10R-6327 High-Pressure Fuel Pump – Flow Linearity Optimisation for Consistent Rail Pressure Across the Full Speed Range in C7/C9/C9.3 Common-Rail Systems
1. Product:10R-6327
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the common-rail fuel system, the ECM's fuel maps are built on the assumption that the pump's flow delivery is linearly proportional to engine speed-doubling the RPM should double the fuel delivered to the rail. In reality, no pump achieves perfect linearity; internal leakage increases at higher pressures, compressibility effects become more pronounced, and the plunger's filling efficiency varies with speed. These nonlinearities create a mismatch between the ECM's commanded fuel quantity and the actual delivery, which the ECM attempts to correct through adaptive learning. However, when the nonlinearity is too large, the corrections exceed the ECM's range, causing rail pressure instability and combustion roughness. The CAT 10R-6327 addresses this through an optimised flow linearity design that maintains the flow-speed relationship within ±2.5% of theoretical from idle to rated speed. The result is a pump that delivers consistent fuel quantities across the entire operating range, allowing the ECM to maintain precise control without excessive adaptation.
Flow Linearity – The Key to Speed-Independent Performance
The 10R-6327's flow linearity is achieved through a combination of design refinements:
Plunger dynamics: Optimised cam profile that maintains consistent plunger filling efficiency across the speed range
Inlet port geometry: Enlarged inlet port that prevents cavitation at high speeds, maintaining the volumetric efficiency
Controlled leakage: Precision-matched plunger-barrel clearance that balances lubrication with leakage control
Flow linearity: ±2.5% of theoretical from 600 RPM to 2,200 RPM (vs. ±5.5% typical)
