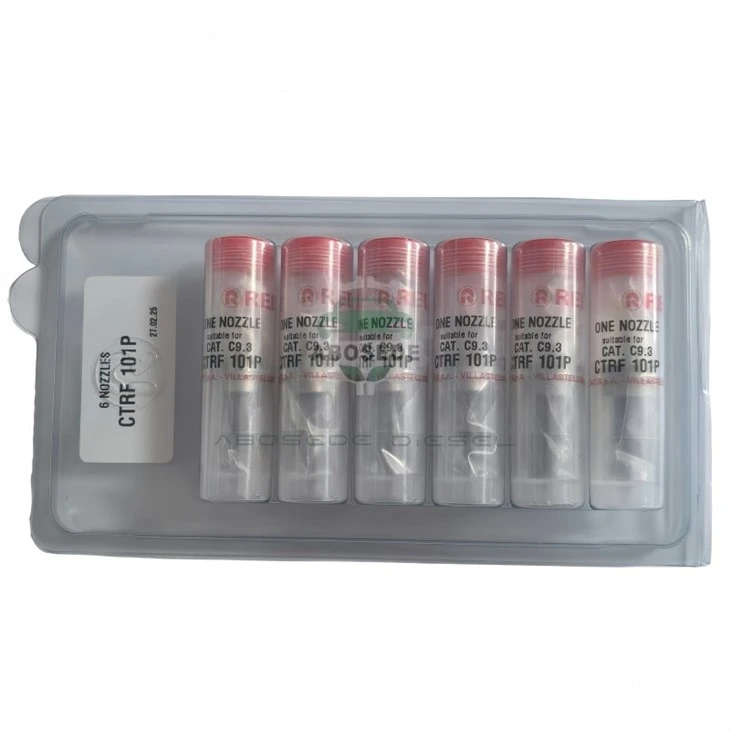

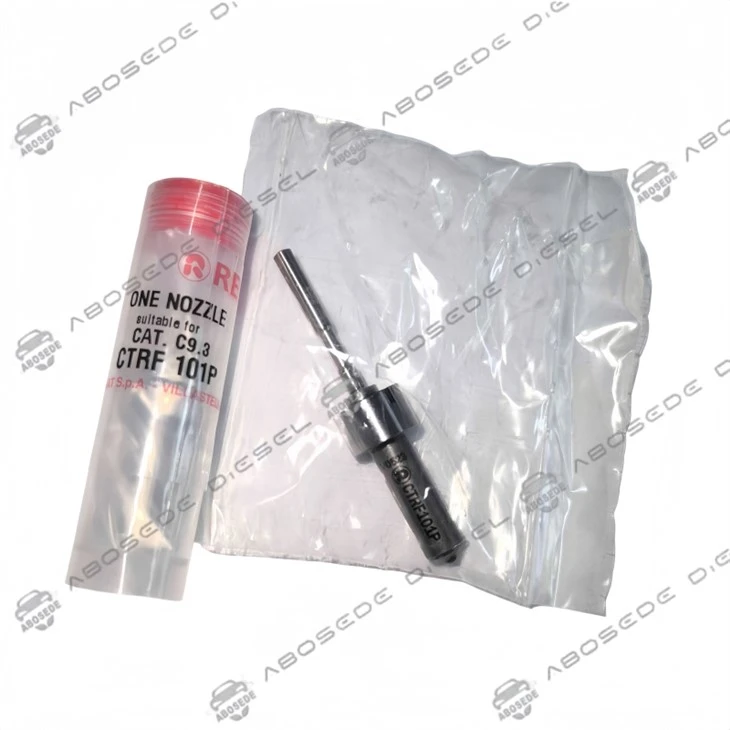

CTRF101P / C9.3 Nozzle For Injectors 456-3589 & 20R-5073

This CTRF101P nozzle is the hydraulic calibration core for Caterpillar C9.3 common-rail injectors carrying the 456-3589 or 20R-5073 assembly numbers. For workshops that rebuild rather than replace complete injectors, this nozzle determines whether the finished unit meets the flow and spray-quality thresholds the ECM expects. A remanufactured injector is only as good as the nozzle inside it, and the CTRF101P is specified for the C9.3 platform where injection timing precision directly affects combustion stability, exhaust temperature, and fuel burn in excavators and loaders running under constant hydraulic demand.

The CTRF101P is manufactured to the C9.3 nozzle dimensional standard, with spray-hole geometry and needle lift calibrated for the 456-3589/20R-5073 injector body. Nozzle tip protrusion, sac volume, and spray cone angle must remain within the OEM window; a nozzle that sits even marginally outside these tolerances will cause the ECM trim data to drift beyond its correction authority, triggering rough idle or cylinder imbalance codes. This nozzle is suited to both new injector assembly and remanufacturing lines where the solenoid and control valve are reused but the hydraulic end requires replacement. Weight is approximately 0.54 kg for the nozzle component alone, and it is supplied in protective packaging to prevent tip damage during transit .

This nozzle is not interchangeable with C7, C13, or C15 injector families. The C9.3 fuel system uses a distinct hydraulic platform and correction strategy; fitting a nozzle from another CAT displacement will result in incorrect injection quantity and potential piston crown damage from over-fuelling . The machine fitment list above reflects the most common platforms in North American and European fleets, though engine serial number verification remains essential before ordering.

Nozzle replacement on the C9.3 requires more than torque discipline. The injector bore in the cylinder head must be cleaned of carbon deposits and inspected for pitting before the new nozzle and injector assembly are seated. Residual carbon at the copper sealing washer interface will prevent correct tip protrusion, causing spray impingement on the bore wall and localized overheating. High-pressure fuel lines should be replaced rather than reused on the C9.3; the flare surfaces work-harden and micro-leaks at 2,000 bar are a fire risk. After assembly, an injector coding or trim relearn procedure is mandatory on most C9.3 ECM calibrations. Skipping this step leaves the ECM operating on the old flow correction map, and the fresh nozzle will run rich or lean relative to commanded quantity . Fuel system cleanliness during the swap cannot be overstated: a single particle downstream of the filter can score the nozzle needle seat within the first hour of operation.

C9.3 injectors fail in predictable ways. The control valve and nozzle needle seat erode from cavitation and abrasive contaminants, producing excessive return flow and hard-start or derate symptoms long before a complete mechanical failure occurs . A workshop that replaces the whole injector assembly every time return flow exceeds specification is leaving margin on the table. The CTRF101P nozzle allows a targeted hydraulic rebuild: retain the tested solenoid and control valve, replace the worn nozzle, and restore the injector to flow-matched condition at a fraction of the new-unit cost. For diesel parts distributors serving fleet accounts, stocking CTRF101P alongside 456-3589 and 20R-5073 assemblies positions the business as a rebuild-capable supplier rather than a box-mover. The key is that the nozzle must be paired with a proper return-flow test before and after rebuild-a nozzle-only fix on an injector with a worn control valve will not restore rail pressure stability.

Q1: Can I fit CTRF101P into an injector that has already been remanufactured once?
A: Yes, provided the injector body and control valve still meet return-flow specification. The nozzle is the wear item; the housing is not.

Q2: What return-flow reading indicates the nozzle is due for replacement?
A: On C9.3 bench tests, back-leakage climbing beyond the OEM upper band at idle typically traces to needle seat wear or control-valve erosion. Replace the nozzle before condemning the whole assembly.

Q3: Do I need to code the injector after a nozzle-only rebuild?
A: Yes. The ECM trim map is built around the original flow class. A fresh nozzle changes the effective delivery, and relearn restores balance.

Q4: Is CTRF101P suitable for marine C9.3 applications?
A: It is hydraulic-compatible, but confirm the injector assembly number first. Marine calibrations sometimes use a different trim class.

Q5: What is the most common installation mistake with this nozzle?
A: Reusing the copper washer. A compressed washer changes tip height and causes carbon blow-by within thousands of hours.
