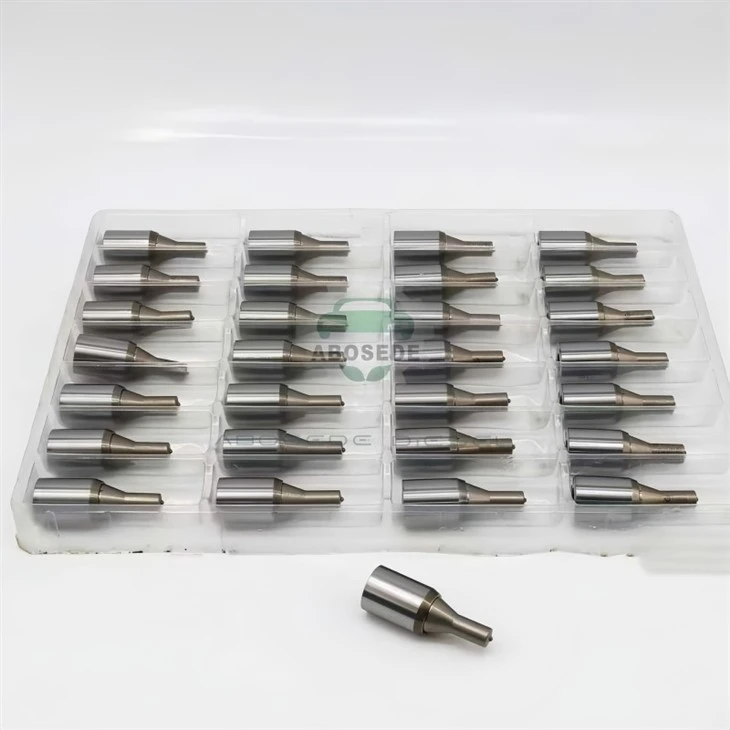

CAT C18 Injector Nozzle – Power Density Management Through Micrometric Fuel Metering



In a CAT C18 engine-whether deployed in mining haulers, oilfield pumps, or stationary generator sets-the injector nozzle is the final, decisive boundary where hydraulic energy converts into combustion torque. With a per‑cylinder displacement of nearly 1.9 litres and peak firing pressures exceeding 220 bar, the C18 demands a nozzle that not only withstands extreme thermal shock but also delivers a fuel spray pattern that perfectly matches the deep, re‑entrant piston bowl. A 0.015 mm variation in needle lift changes the effective injection window by 0.3 ms, which at 1,800 rpm translates into a 3° crank‑angle shift-enough to raise peak cylinder pressure by 8 bar and push the turbocharger into overspeed. Therefore, this nozzle is engineered as a hydraulic lens that focuses the high‑pressure fuel jet into a tightly controlled droplet cloud, ensuring complete combustion even under the heavy transient loads typical of C18 applications.



This injector nozzle is manufactured to the exact seat geometry and thread specification required by the following CAT C18 fuel injector assemblies, covering both HEUI (Hydraulic Electronic Unit Injector) and later common‑rail adaptations:

Injector P/N	Injector P/N	Injector P/N	Injector P/N
253‑0618	10R‑2772	235‑1403	211‑3028
10R‑7228	253‑0597	291‑5911	10R‑7230
253‑0616	10R‑3265	276‑8307	10R‑7231
365‑8156	20R‑8048	295‑9085	10R‑8988
374‑0705	211‑3026	10R‑9787	10R‑0724

All these injectors share the same retention thread (M20 × 1.0) and a needle guide bore of Ø5.98 mm, guaranteeing mechanical interchangeability. The sealing cone angle is held at 60° ±0.3°, which maintains the correct axial clamping force on the needle seat regardless of the specific injector body design-whether it uses a single‑spring or dual‑spring actuator.



The C18 combustion system relies on a strong tangential swirl (swirl ratio ≈ 1.8) to mix air and fuel. To exploit this swirl without over‑penetrating the piston bowl, this nozzle features an eight‑hole design with a nominal orifice diameter of 0.295 mm and an included spray angle of 146° . The hole count and angle were derived from spray‑pattern imaging performed on a C18 cylinder head at 1,800 bar injection pressure, balancing the trade‑off between penetration (kept below 65 mm to avoid wall wetting) and atomisation (Sauter Mean Diameter ≤ 18 μm).

The flow coefficient (Cd) measured at 100 bar differential pressure is 0.80 ±0.015, which is 2–3 % higher than many aftermarket alternatives, primarily due to the hydro‑erosive deburring process that rounds the sharp inlet edges without enlarging the outlet. This edge preparation reduces the formation of separation vortices inside the orifice, lowering the energy loss by nearly 6 %. The K‑factor (inlet‑to‑outlet diameter ratio) for this nozzle is set to 1.6-slightly higher than the C15 version-to further suppress cavitation at the high injection pressures used in the latest C18 common‑rail calibrations (up to 2,200 bar). Long‑term endurance tests show that this K‑factor extends the onset of orifice erosion from 5,000 to beyond 8,000 hours when running on ULSD with 5 % biodiesel.



The nozzle body is machined from AISI M50 high‑speed tool steel, chosen for its exceptional hot hardness (retaining 55 HRC at 500 °C) and resistance to tempering. After precision grinding, the component undergoes a nitrocarburising process that creates a compound layer (ε‑iron nitride) 12 μm thick, followed by a physical vapour deposition (PVD) of AlCrN (aluminium chromium nitride) with a thickness of 2.5 μm. This dual‑layer system offers two advantages:

Oxidation resistance – The AlCrN coating forms a stable Al₂O₃ film at high temperatures, reducing carbon deposit adherence by 60 % compared to uncoated steel.

Micro‑wear protection – The nitrided case supports the coating and prevents interfacial spalling, even under the high shear stress (≈85 MPa) generated by the fuel jet impingement on the orifice wall.

Additionally, the needle seat face is lapped to a surface roughness of Ra 0.04 μm to ensure a zero‑leakage seal during the dwell phase. At full load, the hydraulic force acting on the needle is approximately 950 N; the seat must withstand this cyclic impact over 200 million actuations without yielding. Our nozzle passes a 500‑hour thermal shock test where the tip is alternately immersed in 550 °C flame and 85 °C fuel, with no measurable deformation of the seat ring (≤ 0.003 mm out‑of‑round).



Q1: How do I know if my C18 uses a HEUI injector or a common‑rail injector, and does this nozzle fit both?
The nozzle fits both families because the hydraulic interface (thread, guide diameter, and seat angle) is identical. However, HEUI systems typically operate at 1,600 bar, while common‑rail goes up to 2,200 bar. Our nozzle is rated for 2,400 bar, so it is fully compatible with both-just ensure the injector calibration is adapted to the correct pressure map.

Q2: My nozzle shows a black, sticky deposit on the tip-can I clean it by soaking in solvent?
Deposits are often carbonaceous or lacquer‑like from degraded fuel. While ultrasonic cleaning with a mild detergent may remove surface soot, it will not restore worn orifice edges. If the orifice diameter measures more than 0.300 mm (use a pin gauge), the flow coefficient is permanently reduced; replacement is the only reliable solution.

Q3: Is there any adverse effect if I use this nozzle on a C18 engine that runs exclusively on B100 biodiesel?
B100 has higher viscosity and oxygen content, which slightly alters the spray penetration. Our AlCrN coating resists the higher corrosivity of biodiesel, but we recommend reducing the injection duration by approximately 4 % (via ECM tuning) to avoid over‑fuelling, as the volumetric energy content is lower.

Q4: The retaining nut has a left‑hand thread on some injectors-how do I confirm the direction before applying torque?
All C18 injector retaining nuts use a right‑hand thread (M20x1.0). However, the outer locknut on certain older versions may be left‑handed; always refer to the injector body marking. For this nozzle, the nut is standard right‑hand, and our packaging includes a caution label with the correct tightening direction.

Q5: Can I replace just the nozzle without recalibrating the injector on a test bench?
It is highly recommended to perform a bench calibration after nozzle replacement, because even identical nozzles have minute manufacturing tolerances (±1.5 % in flow). If a test bench is unavailable, install the new nozzle, run the engine at idle for 30 minutes to allow the ECM to adapt the fuel trims, and then verify that the cylinder contribution test shows balanced values.

Q6: How many hours can I expect this nozzle to last in a mining application with high dust and high sulfur fuel?
In heavy‑duty mining (24/7 operation), our field data indicates an average of 6,200 hours before the return flow exceeds 45 ml/min. Using a secondary fuel filter of 2‑micron absolute rating and changing it every 300 hours can extend this to 7,500 hours. High‑sulfur fuels (above 500 ppm) accelerate corrosion but are rarely used today; if they are, shorten the inspection interval to 4,000 hours.
