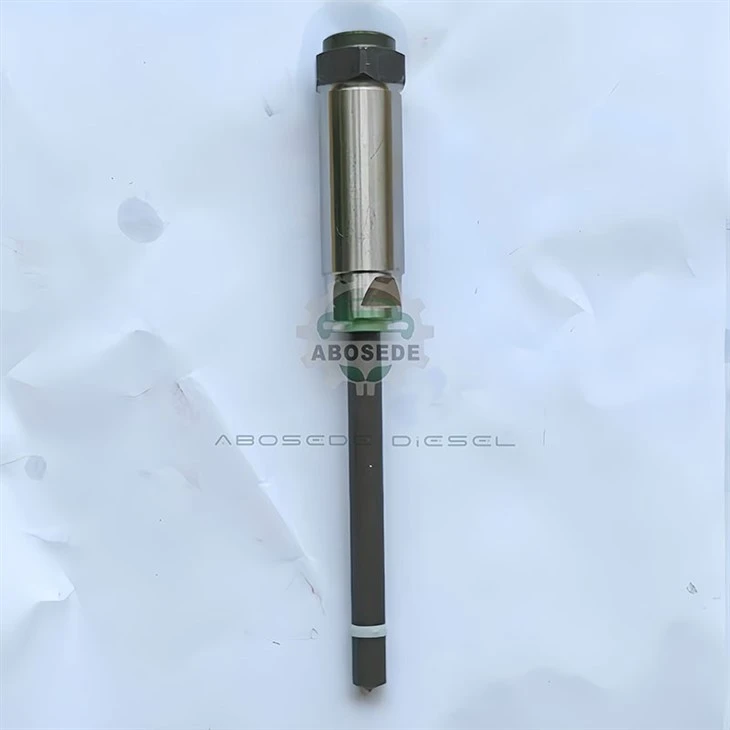

CAT 4W7017 Injector – The Precision Link Between Fuel Delivery And Combustion Performance

In any diesel fuel delivery architecture, raw fuel alone does not produce shaft power; rather, the overall thermal efficiency hinges on the precision with which the liquid charge is metered, fragmented into droplets, and ignited within the cylinder space. The CAT 4W7017 injector occupies the decisive nodal position in this sequence, converting pressurised diesel into a controlled aerosol cloud that sustains even combustion, maximises torque generation, and keeps exhaust constituents within acceptable limits. This injector is specifically configured for rigorous Caterpillar diesel installations, maintaining its injection fidelity across severe duty cycles encountered in surface mining, earthmoving, stationary power generation, and off‑road machinery. Its internal hydraulic train-including needle, nozzle, and spring elements-is held to exacting dimensional standards, ensuring that fuel quantification remains repeatable over prolonged overhaul intervals.





Each combustion stroke within a compression‑ignition engine unfolds in a matter of milliseconds. The CAT 4W7017 injector governs four essential phases of this transient process:

✓ Fuel Dosing Precision
✓ Injection Onset and Duration Stability
✓ Droplet Breakup Quality
✓ Overall Combustion Effectiveness

When any of these parameters drifts from specification, the operator may observe:

Elevated fuel consumption per hour

Extended cranking before start‑up

Sluggish throttle pickup

Dense exhaust plume

Shortened service intervals

A correctly functioning CAT 4W7017 injector helps preserve equilibrium across the entire fuel‑handling train.





Specification	Description
Product Type	Diesel Fuel Injector
Part Number	CAT 4W7017
Fuel Compatibility	Diesel Fuel
Injection Principle	High‑Pressure Mechanical Actuation
Primary Application Fields	Construction, Mining, Industrial Power
Base Material	Hardened Alloy Steel
Critical Internal Elements	Needle Valve, Nozzle Body, Spring Stack
Rated Duty	Continuous Heavy‑Service Operation

The injector's internal flow passages are contoured to achieve controlled breakup of the fuel jet while resisting erosive wear from sustained high‑pressure fuel exposure.





Many equipment owners concentrate on the total volume of fuel introduced per cycle. However, combustion engineers recognise that the spatial and size distribution of the spray often exerts a stronger influence on engine behaviour than sheer throughput.

The CAT 4W7017 injector is engineered to deliver:
◆ Uniform droplet size spectra
◆ Minimal wall wetting
◆ Enhanced air‑entrainment into the fuel jet
◆ Shortened ignition delay
◆ Cleaner burn signatures

A well‑structured spray enables fuel particles to achieve more intimate contact with the compressed charge, promoting a more thorough oxidation reaction. The practical benefits manifest as:

Higher thermal conversion yield

Reduced soot accumulation on internal surfaces

Lower exhaust opacity readings

Sharper accelerator response





The CAT 4W7017 injector is routinely specified for a broad array of Caterpillar‑powered machines that operate in abrasive and thermally stressed environments.

Typical equipment categories include:

Construction Machinery

Wheel Loaders

Motor Graders

Hydraulic Excavators

General Earthmoving Plant

Mining Fleet

Rigid Haul Trucks

Underground Support Vehicles

Rotary and Percussive Drilling Rigs

Industrial Power Units

Standby and Prime‑Power Generator Sets

Pump Drives for Hydraulic Systems

Industrial Air Compressors

Heavy‑Duty Diesel Engines

Mechanically Governed Injection Systems

Continuous‑Duty Industrial Power Platforms

Before installation, always confirm mechanical compatibility using the engine serial number and the latest OEM parts interchange documentation.





Heavy mobile and stationary equipment seldom operates in a clean, climate‑controlled environment. Dust ingress, mechanical vibration, thermal cycling, and batch‑to‑batch fuel variation all impose severe demands on injector assemblies.

The CAT 4W7017 injector incorporates durability‑enhancing design features, including:
◉ Abrasion‑resistant sealing lands
◉ Precision‑lapped nozzle orifices
◉ Corrosion‑tolerant internal metallurgy
◉ Precisely calibrated return springs
◉ Robust containment of peak injection pressures

These attributes help the injector maintain its performance envelope even after thousands of hours of continuous operation.





With accumulated running time, the injector's moving parts undergo gradual wear, which may produce one or more of the following observable signs:

Fuel‑Consumption Clues

Higher than normal litres‑per‑hour usage

Asymmetric consumption across cylinders

Noticeable decline in distance‑per‑gallon figures

Performance‑Related Symptoms

Rough idle with periodic misfire

Noticeable derating under load

Delayed response to throttle movement

Combustion‑Derived Signals

Persistent black or grey exhaust

Incomplete burn with fuel odour

Heavy carbon layering on pistons and valves

Starting Behaviour Changes

Extended starter motor engagement

Repeated cranking cycles before firing

Inconsistent cold‑start behaviour

Replacing the injector at the first indication of these symptoms can prevent secondary damage to other fuel‑system components and preserve overall engine health.





In heavy‑duty operations, fuel expenditure typically ranks among the top variable costs. Even a small metering error-on the order of a few percent-can accumulate into significant financial loss over a typical overhaul period.

The tangible benefits of keeping a high‑grade CAT 4W7017 injector in service include:
✓ More complete utilisation of each fuel unit
✓ Improved thermodynamic conversion efficiency
✓ Fewer unscheduled maintenance stops
✓ Higher machine productivity per shift
✓ Lower total cost of ownership over the equipment life

For fleet technical managers, the condition of each injector is directly linked to bottom‑line profitability.





Despite its modest physical dimensions, the CAT 4W7017 injector exerts a controlling influence on multiple engine subsystems simultaneously. Its performance cascades through the entire energy‑conversion chain:

Fuel Supply → Atomisation → Combustion Kinetics → Crankshaft Torque → Exhaust Aftertreatment

This central role makes injector quality a determining factor in whether the engine operates within its original design envelope. When fuel is introduced at the correct pressure, at the right crank angle, and with the proper droplet spectrum, the diesel cycle proceeds as intended-supporting durability even in the most arduous industrial assignments.





Q1: How does the CAT 4W7017 injector influence fuel economy?
A well‑maintained injector enhances atomisation and combustion completeness, reducing the fraction of fuel that leaves the cylinder unburned, thereby supporting more economical operation.

Q2: Can a worn injector cause increased smoke output?
Yes. Deteriorated nozzle holes distort the spray geometry, leading to partial combustion and elevated soot emissions.

Q3: Why is injection precision especially critical in diesel cycles?
Diesel combustion is highly sensitive to the timing and spatial distribution of fuel. Minor deviations can produce disproportionate effects on power and consumption.

Q4: Which factors accelerate injector wear in practice?
Contaminated fuel, inadequate filtration, sustained high‑temperature running, and extended replacement intervals all accelerate degradation.

Q5: What early warnings indicate injector performance loss?
Typical precursors include erratic idle, power loss, prolonged starting, rising fuel consumption, and abnormal exhaust appearance.

Q6: Why is spray pattern so important in modern high‑pressure systems?
Modern diesel combustion relies on rapid and homogeneous mixing. An optimal spray pattern ensures proper air‑fuel interaction, which directly affects efficiency and emission control.
