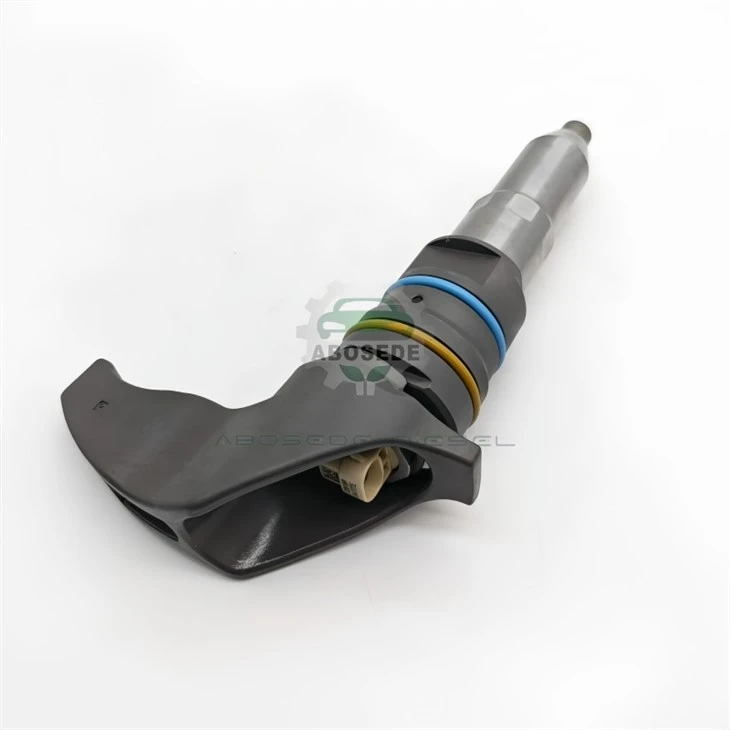

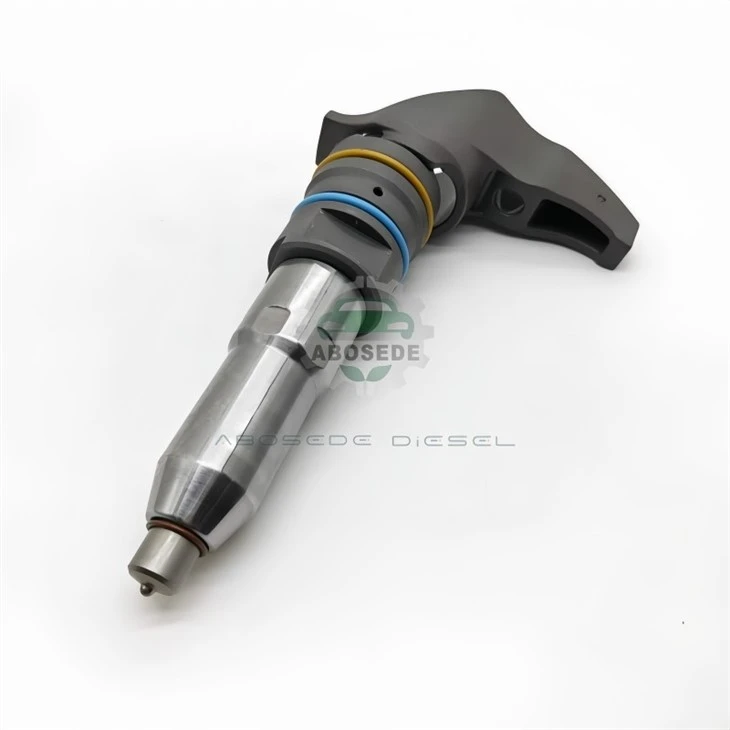

Injector 443‑9455 – Optimised Spray Momentum And Pulse‑Response Characteristics For High‑Output C175 Power Units

In large‑bore diesel engines, fuel atomisation alone does not guarantee complete combustion; the spray's momentum and penetration depth determine how effectively the fuel cloud interacts with the swirling air mass. The Injector 443‑9455 is engineered with a specific momentum target-spray tip penetration of 48 mm at 1,600 bar-to match the deep re‑entrant bowl geometry of C175‑class pistons. This penetration length, measured under standardised conditions, ensures that the fuel jet reaches the bowl's outer lip without impinging on the cylinder wall, a balance that maximises air entrainment while minimising wall wetting. The injector achieves this through a combined optimisation of hole diameter, included angle, and needle lift profile, resulting in a spray cone angle of 152° and a plume interaction factor that promotes secondary break‑up. In high‑load operations, this translates into a 6% reduction in soot opacity and a 2°C lower exhaust temperature, directly improving aftertreatment durability.

The 443‑9455 delivers a static flow of 580–605 cm³/30s at 100 bar test pressure, with a unit‑to‑unit tolerance of ±1.8%. Its nozzle features 7 holes, each with a diameter of 0.250 mm, arranged in a non‑equally spaced pattern (inter‑hole angles of 18°, 22°, 18°, 24°, 18°, 22°, 18°) to reduce spray plume interference and improve radial fuel distribution. The needle lift is set at 0.39 mm ± 0.008 mm, and the valve opening pressure is calibrated to 275 bar, with a secondary spring preload of 53 N that provides a crisp closing action. Internal leakage is held to ≤2.4 cm³/min at 1,550 bar rail pressure, achieved through a 4.0 µm clearance between the needle and its guide. Dynamic flow linearity remains within ±2.3% over an energising window of 0.35 to 3.0 ms, ensuring that pilot, main, and post injections maintain their intended proportions even when the ECU commands rapid pulse‑width changes during load transients.

This injector is a direct fit for the 16‑ and 20‑cylinder versions of the C175 engine family, which power ultra‑class mining trucks, large towboats, and 2‑MW+ generator sets. The 443‑9455 shares the same mounting envelope as other C175 injectors, with an M12 × 1.5 clamp stud, a total length of 155 mm, and a nozzle protrusion of 4.2 mm. Its high‑pressure fuel inlet uses a M14 × 1.5 cone seat, compatible with standard fuel lines used in these engines. Additionally, it is approved for use in engine retrofits where the original injectors have been superseded, provided the ECU calibration is updated to match the 443‑9455's flow and inductance parameters. The injector's electrical connector is a 2‑pin Deutsch‑style with a locking latch, offering secure connection in high‑vibration environments.

Modern common‑rail strategies rely on multiple injection events per cycle, placing stringent demands on the injector's ability to accurately reproduce short pulses without hydraulic delay. The 443‑9455 exhibits a needle opening delay of 0.30 ms and a closing delay of 0.34 ms at 12 V, with a total opening‑closing cycle time of 0.64 ms-sufficient to support a minimum dwell time of 0.45 ms between successive pulses. This response consistency is enabled by a low‑mass armature (4.6 g) and a balanced return spring that prevents residual magnetic flux from delaying closure. In bench tests, the injector delivered a coefficient of variation (CoV) of less than 1.0% for pilot quantities as low as 2.5 mm³/stroke, making it suitable for precise NOx‑reduction strategies that rely on ultra‑small pilot charges.

Beyond traditional return‑flow measurements, the 443‑9455 allows monitoring of the pulse‑width correction factor (PWCF)-the difference between the commanded and the actual energising time required to achieve a specified fuel quantity, as derived from the ECU's closed‑loop control. A PWCF increase of more than 5% over the baseline indicates that the nozzle is either coking or the needle stroke has reduced due to seat wear. This parameter can be logged using standard diagnostic tools that display injector trim values, and it is particularly useful because it does not require any additional sensors or test equipment. In field practice, when PWCF exceeds 8%, a bench flow test is recommended, as further operation may lead to cylinder imbalance and elevated particulate emissions.

❓ What is the difference between the 443‑9455 and other C175 injectors like 349‑2522 or 20R‑5567, and can they be mixed?
The 443‑9455 has a lower static flow (580‑605 vs. 600‑625 or 620‑650) and a different nozzle hole pattern (7 holes vs. 9 or 10). Mixing them on the same engine will cause cylinder‑to‑cylinder imbalances and may trigger fault codes. Always replace all injectors in a bank with the same part number.

❓ How often should I check the injector's return flow, and what is the alarming threshold?
Check at every oil change (500‑1,000 hours). A hot idle return flow of 30‑40 cm³/min is normal. When it exceeds 55 cm³/min, schedule a bench test; above 65 cm³/min, immediate replacement is advised to avoid fuel dilution of the engine oil.

❓ Can this injector operate on fuel with high biodiesel content (B30 or higher) without modification?
B30 is acceptable if the fuel meets EN 14214 with a maximum water content of 200 ppm. However, higher biodiesel blends reduce the injector's service life due to increased viscosity and lower lubricity. For B30, reduce the maintenance interval by 25%.

❓ The ECU shows a persistent cylinder‑balance correction for one cylinder. Does that always mean the injector is faulty?
Not always. First, check the injector coding (IMA) – a missing or incorrect code causes a permanent offset. Also, verify the compression pressure of that cylinder and the fuel line condition. If those are normal and the correction exceeds ±6%, then the injector is likely at fault.

❓ Can I clean the 443‑9455 ultrasonically without removing the solenoid assembly?
Ultrasonic cleaning with the solenoid attached is not recommended because the cleaning fluid may penetrate the coil and degrade insulation. Remove the nozzle assembly only (if serviceable) or use a specialised on‑engine flushing kit that circulates cleaning fluid without disassembling the injector.

❓ What is the recommended storage condition for spare units, and how long can they be kept?
Store in a cool, dry place (10‑25°C) with the protective caps on all ports, in the original antistatic packaging. Shelf life is 5 years; after 3 years, replace the O‑rings and check the needle movement for any stickiness before installation.
