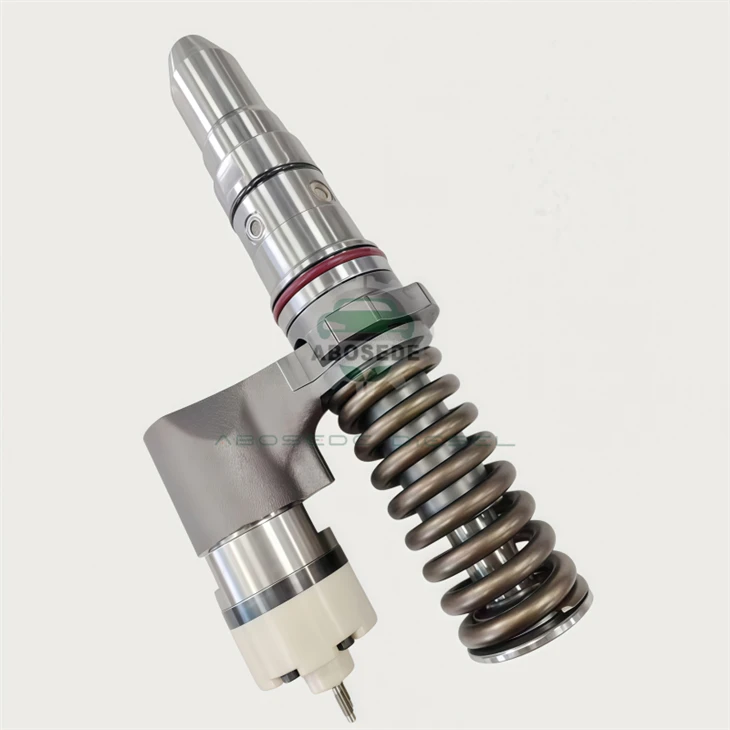

Caterpillar 3500 "Round Head" Injector (150-4453): Precision Engineering For The Modern Heavy-Duty Era
video
Caterpillar 3500 "Round Head" Injector (150-4453): Precision Engineering For The Modern Heavy-Duty Era

Caterpillar 3500 "Round Head" Injector (150-4453): Precision Engineering For The Modern Heavy-Duty Era

1. Product:150-4453
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal

Send InquiryChat Now
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

In the lineage of Caterpillar's legendary 3500 Series, the transition from legacy mechanical systems to electronically controlled architectures marked a pivotal shift in performance capabilities. The 150-4453 stands as a definitive representative of this evolution. Often referred to in the field as the "Round Head" injector due to its distinctive solenoid housing geometry, this component is engineered for the 3500B and 3500C engine families.

Unlike the purely mechanical predecessors that relied on camshaft timing for injection events, the 150-4453 operates within an Electronic Unit Injector (EUI) system. This shift places the control of fuel metering and timing directly into the hands of the Engine Control Module (ECM). For operators of heavy-duty mining trucks, marine vessels, and power generation sets, understanding the specific nuances of this "Round Head" design is not just about parts replacement-it is about maintaining the precise electronic synchronization that modern emissions standards and efficiency targets demand.



⚙️ Technical Specifications & Data



The 150-4453 is a high-precision component designed to withstand the rigors of continuous high-load operation. Its "Round Head" design encapsulates the solenoid assembly, protecting the electrical interface from the harsh vibration of the engine deck.



Feature Specification
Part Number 150-4453 (1504453)
Component Type Electronic Unit Injector (EUI)
Architecture "Round Head" Solenoid Design
Engine Family Caterpillar 3500B / 3500C Series
System Voltage 12V / 24V (ECM Controlled)
Key Application 3512B/C, 3516B/C (Gen Sets, Marine, Industrial)


🚢 Comprehensive Compatibility Matrix



The 150-4453 is not a universal fit for all 3500 engines; it is specifically calibrated for the "B" and "C" series architectures that utilize the round-top solenoid design.

Generator Sets (Gensets): Widely used in 3512B and 3516B generator sets (e.g., XQ2000, XQ3000) where precise fuel metering is required for frequency stability.

Marine Propulsion: Essential for commercial marine engines where the "Round Head" durability resists corrosion and salt-fog environments better than exposed harness designs.

Locomotives: utilized in heavy-haul rail applications requiring the high injection pressures generated by the EUI system.

Industrial: Found in large pumping and compression units in the oil and gas sector.



🔍 The "Round Head" Advantage: Solenoid Durability



The defining feature of the 150-4453 is its "Round Head" configuration. In earlier EUI designs, the solenoid interface was more exposed or utilized a different locking mechanism. The round head design integrates the solenoid, return spring, and electrical connector into a single, robust assembly.

This design offers two distinct advantages:

Vibration Resistance: The cylindrical housing distributes clamping force evenly, reducing the risk of solenoid fracture during high-vibration events common in mining applications.

Electrical Integrity: The connector interface is shielded, minimizing the risk of "open circuit" faults caused by fretting corrosion or moisture ingress.



⚡ The EUI Difference: Why Electronics Matter



While the 150-4453 physically resembles a mechanical injector, its operation is fundamentally different. It is part of a high-pressure unit injection system where the injector itself acts as the pump.

Injection Pressure: The 150-4453 generates injection pressures exceeding 20,000 psi (1,380 bar). This extreme pressure is necessary to atomize fuel into microscopic droplets, ensuring rapid and complete combustion.

Electronic Control: The ECM sends a pulse-width modulated signal to the injector's solenoid. The duration of this pulse determines exactly how much fuel is injected. This allows for "pilot injection" strategies (in some configurations) or precise timing retard for emissions control, features impossible with mechanical injectors like the 7W-2269.



❓ Frequently Asked Questions (FAQ)



Q1: What does the "Trim Code" on the 150-4453 label mean?
A: The Trim Code (or IEA Code) represents the specific flow characteristics of that individual injector. Because manufacturing tolerances vary slightly, the ECM needs this code to adjust the pulse width for that specific cylinder. You must program this code into the ECM after installation using electronic service tools.

Q2: Can I use a mechanical injector (like 7W-2269) in place of 150-4453?
A: No. The 150-4453 is an Electronic Unit Injector (EUI) controlled by the ECM. Mechanical injectors lack the solenoid and internal check valves required for the electronic system to function. They are physically and operationally incompatible with 3500B/C engines.

Q3: My engine is throwing a "Cylinder X Open Circuit" code. Is the 150-4453 bad?
A: It could be. An open circuit code usually indicates a break in the electrical path. This could be a damaged solenoid inside the "Round Head" of the 150-4453, a broken wire in the harness, or a poor connection at the injector plug. Use a multimeter to check the resistance across the injector terminals (typically 0.5 - 1.5 Ohms).

Q4: Does the 150-4453 require a specific priming procedure?
A: Yes. After installation, the air must be purged from the fuel system. On 3500 EUI engines, this is often done via the "Injector Trim" menu in the service tool software or by cranking the engine with the fuel supply disconnected until fuel flows freely, then reconnecting and priming via the hand pump (if equipped).

Q5: What is the difference between "Round Head" and "Flat Head" EUIs?
A: "Round Head" refers to the specific solenoid housing design used on later model 3500B and 3500C engines (like the 150-4453). "Flat Head" injectors were used on earlier EUI applications. They are generally not interchangeable due to differences in electrical connector orientation and height.

Q6: How often should the 150-4453 be replaced?
A: Under normal operating conditions with good fuel filtration, EUIs can last 15,000 to 20,000 hours. However, in severe applications (high sulfur fuel, extreme dust), the nozzle valve and plunger/barrel assemblies will wear faster, necessitating earlier replacement to maintain emissions compliance and fuel economy.
