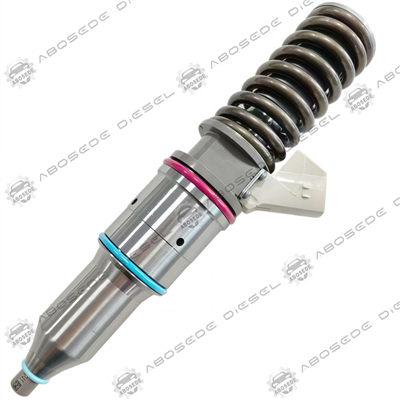

3500A 7E-3384 Diesel Injector: The Guardian Of Engine Integrity

Q1: What is the difference between "opening pressure" and "closing pressure" for the 7E-3384?
A: Opening pressure is the specific pressure required to lift the injector needle and begin spraying fuel. Closing pressure is the pressure at which the needle reseats and stops the flow. The 7E-3384 is designed with a specific differential to ensure a sharp "snapping" action, preventing dribble at the end of the injection cycle.

Q2: Can I run this injector on biodiesel blends?
A: The 7E-3384 can generally handle standard blends (like B5 or B20), but biodiesel has solvent properties that can loosen varnish in old tanks, potentially clogging the injector filter. Additionally, biodiesel has different lubricity characteristics, so monitoring water separation is critical to prevent corrosion.

Q3: Why is my engine smoking white even with new 7E-3384 injectors?
A: White smoke usually indicates unburned fuel. If the injectors are new, the issue may lie with the injection timing (too late) or low compression in the engine cylinders, preventing the air from getting hot enough to ignite the fuel spray.

Q4: How does the 3500A 7E-3384 handle "cavitation"?
A: Cavitation occurs when vapor bubbles form and collapse violently inside the injector, eroding the metal. The 7E-3384 is machined with precise internal geometries to minimize low-pressure zones where cavitation typically starts, extending the service life of the nozzle.

Q5: Is it necessary to replace the return lines when installing these injectors?
A: Yes. The return lines (leak-off lines) carry fuel back to the tank to cool the injector. If these lines are cracked or brittle, air can be sucked into the system, causing the engine to run rough or stall. Replacing them ensures the 7E-3384 operates at the correct temperature.
