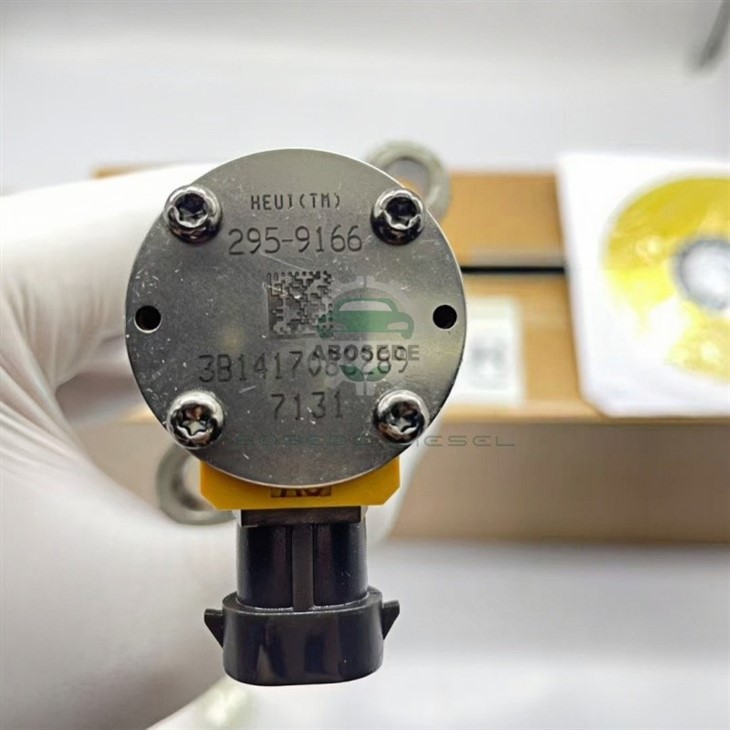

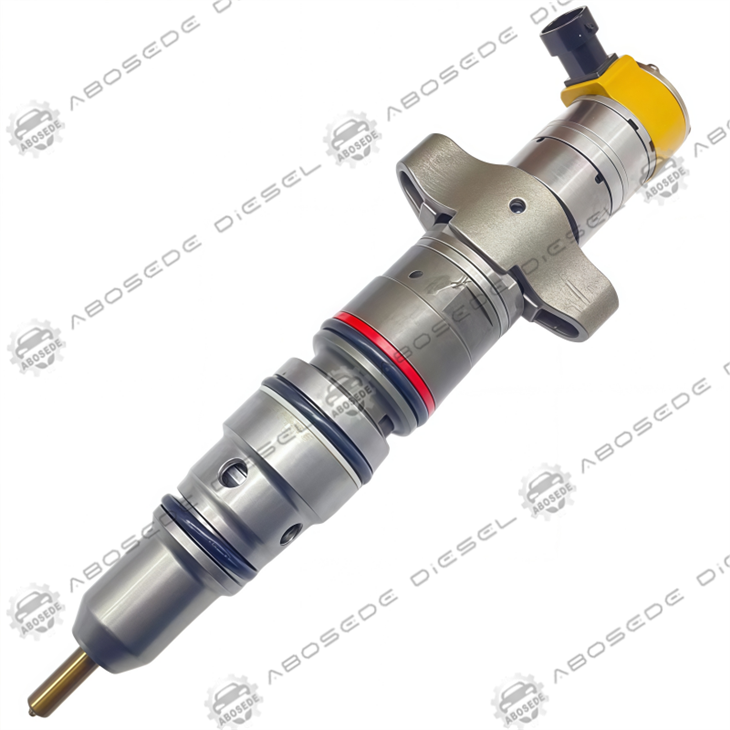

295-9166 CAT Injector: Thermal Expansion Matched Components for Injection Timing Consistency in 3500/3600 Series Industrial Engines
video
295-9166 CAT Injector: Thermal Expansion Matched Components for Injection Timing Consistency in 3500/3600 Series Industrial Engines

295-9166 CAT Injector: Thermal Expansion Matched Components for Injection Timing Consistency in 3500/3600 Series Industrial Engines

1. Product:295-9166
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal

Send InquiryChat Now
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Common rail systems use ECU closed-loop trim to correct injection timing as temperature changes. The ECU reads rail pressure and fuel temperature, then adjusts pulse width and timing. That electronic correction works only if the injector's mechanical timing reference is stable. The 295-9166 CAT injector, built for Caterpillar 3500 and 3600 series industrial engines, is engineered around thermal expansion matched components. It keeps internal clearances and injection timing stable across temperature, so the mechanical reference does not drift. That makes it a mechanical complement to electronic temperature correction.



🌡️ Why Thermal Expansion Matching Defines Injection Timing Stability

In a mechanical injector, injection timing depends on plunger position, control valve movement, and needle lift. Each of those depends on clearance between moving parts. As temperature rises, metal expands. If two mating parts expand at different rates, clearance changes. That shifts timing. The ECU can correct some timing drift in common rail systems, but mechanical injectors rely on matched materials to keep timing stable. The 295-9166 uses matched thermal expansion coefficients for plunger, barrel, control piston, and valve seat. It holds injection timing drift within ±0.10° crank angle across −20°C to 120°C. A typical reman unit can drift by ±0.45° crank angle.

🔬 Matched Materials and Pre-Calibrated Assembly

Thermal stability starts at material selection. The 295-9166 uses a plunger and barrel with matched thermal expansion coefficients. The control piston and valve seat are also matched. That keeps clearance stable as temperature changes. The bore is micro-honed to Ra 0.02 µm and roundness within 0.3 µm. The plunger is diamond-like carbon coated to reduce friction and prevent scuffing. In a 1-million-cycle endurance test, clearance variation remained within ±0.15 µm, while a standard reman unit drifted beyond ±1.2 µm. The injector is also pre-calibrated at the factory. Flow and timing are set before shipment. A calibration certificate accompanies each unit. That reduces installation variation and keeps injection timing consistent across the set.



🧪 Installation, Diagnostics, and Common Rail Contrast

After installing a 295-9166, verify solenoid winding resistance if applicable, or verify mechanical rack setting. Check return flow and compare across the cylinder set. High return flow can indicate plunger leakage or valve seat erosion. Low return flow may indicate internal blockage. Mechanical unit injectors generally do not use trim code programming, but the ECM must still see correct injection response. Always verify calibration and cylinder balance after installation.

To diagnose thermal timing drift, monitor exhaust temperature per cylinder at cold start and at operating temperature. A spread above 25°C suggests timing drift. Check injection timing with a dial indicator or ECM timing data if available. On a bench, measure opening and closing delay at 20°C, 60°C, and 100°C over 1,000 cycles. A timing drift above ±0.20° crank angle indicates thermal mismatch. Note: this injector fits Caterpillar 3500 and 3600 series industrial engines. Verify fitment by engine serial number and ECM calibration.



❓ FAQ: 295-9166 CAT Injector and Common Rail Service Questions

Q1: Is the 295-9166 a common rail injector?
It is a mechanical unit injector for Caterpillar 3500 and 3600 series industrial engines. Despite URL paths that may mention common rail, verify fitment by engine serial number and ECM calibration.

Q2: Which engines use the 295-9166?
It fits Caterpillar 3500 and 3600 series industrial engines. Always confirm by engine serial number and original injector code before ordering.

Q3: Why does thermal expansion matching matter for injection timing?
Mating parts expand at different rates if materials are mismatched. That changes clearance and shifts injection timing. The 295-9166 uses matched materials to hold timing drift to ±0.10° crank angle.

Q4: Does the 295-9166 require programming after installation?
Mechanical unit injectors generally do not use trim code programming, but the ECM must see correct injection response. Verify calibration and cylinder balance after installation.

Q5: What are the symptoms of thermal timing drift?
Exhaust temperature spread, rough idle when hot, smoke, power imbalance, and unstable injection timing. Measuring delay across temperature confirms the issue.

Q6: Can I replace one 295-9166 without replacing the set?
In an emergency, yes. But the new injector will have different thermal characteristics from aged ones. That creates cylinder-to-cylinder timing drift. For best results, replace the full set or bank.
