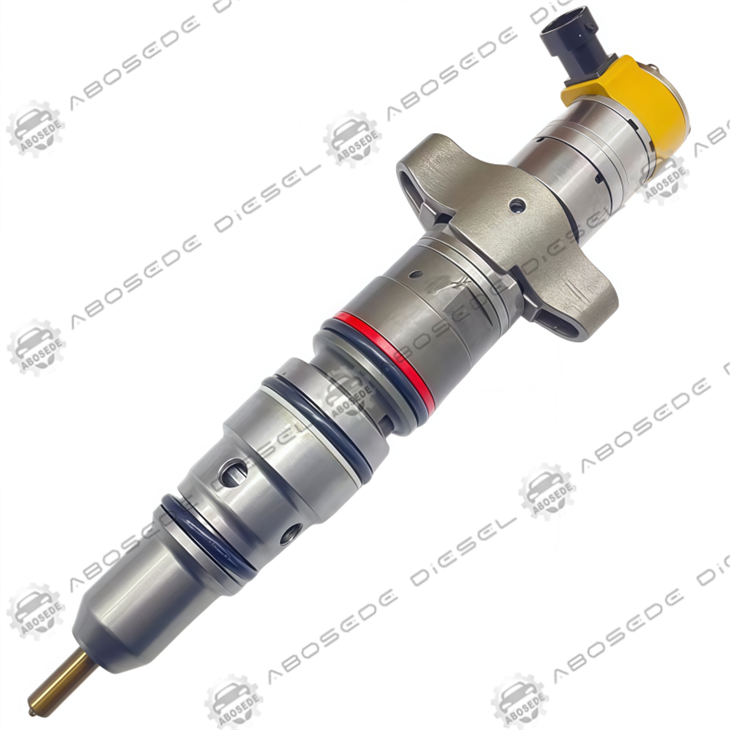

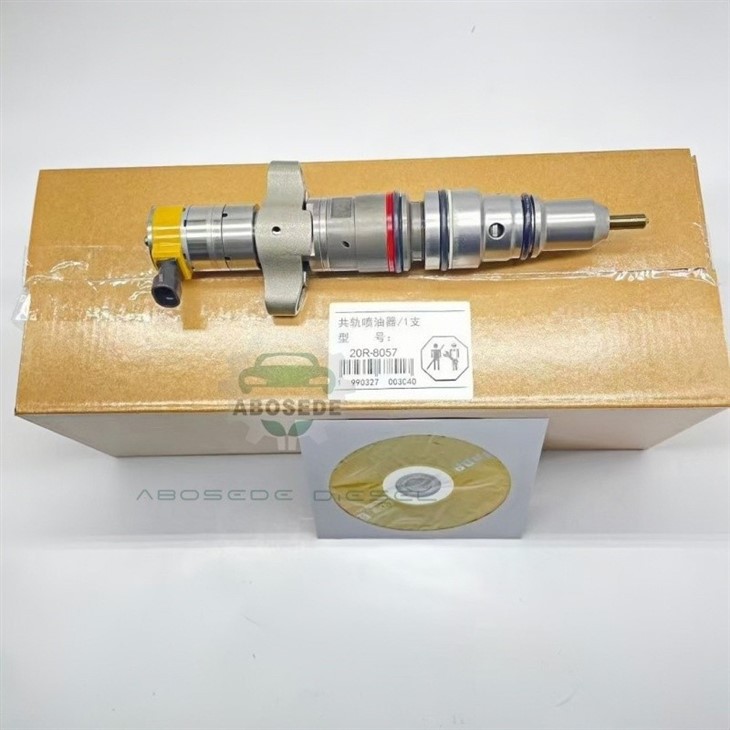

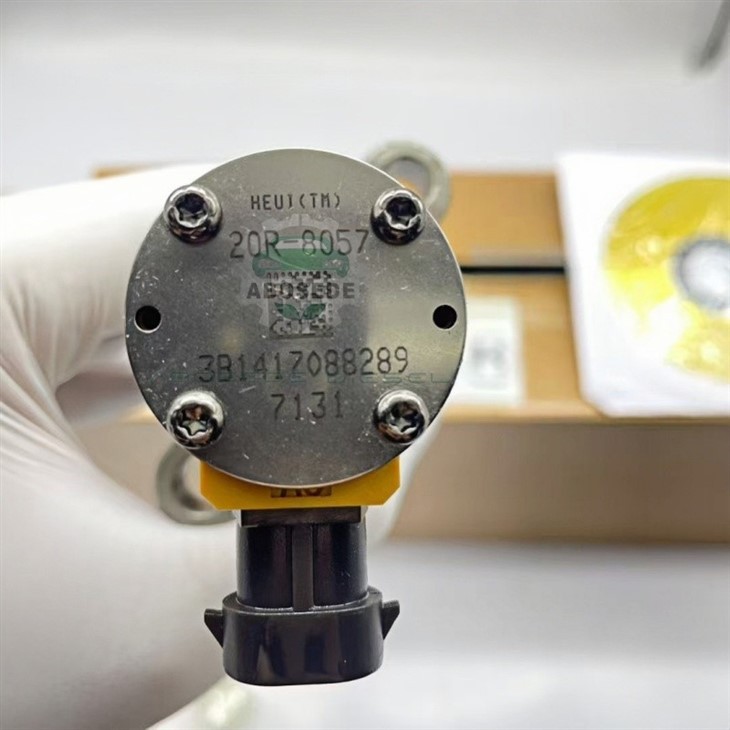

20R-8057 CAT Common Rail Injector: Pressure-Response Linearity for Stable Fueling Across Fluctuating Rail Pressures
video
20R-8057 CAT Common Rail Injector: Pressure-Response Linearity for Stable Fueling Across Fluctuating Rail Pressures

20R-8057 CAT Common Rail Injector: Pressure-Response Linearity for Stable Fueling Across Fluctuating Rail Pressures

1. Product:20R-8057
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal

Send InquiryChat Now
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Common rail systems assume that rail pressure is stable enough for the ECU to calculate fuel quantity from injector opening time. In reality, rail pressure fluctuates. The high-pressure pump generates ripple. The pressure control valve corrects in steps. Every injection event disturbs the rail. If the injector's pressure-response relationship is non-linear, those pressure fluctuations turn into fuel quantity fluctuations. The ECU can correct some of that variation, but it consumes adaptation range. The 20R-8057 CAT common rail injector is engineered around pressure-response linearity. It keeps delivered quantity proportional to rail pressure across the operating band and preserves ECU adaptive margin.



⚙️ Why Pressure-Response Linearity Defines Stable Fueling in Common Rail

In a common rail injector, the control chamber pressure and needle lift depend on rail pressure. The injector's transfer function describes how rail pressure changes translate into delivered quantity. If that function is linear, a small pressure ripple produces a small quantity ripple. If it is non-linear, the same pressure ripple produces a larger quantity ripple. The ECU then has to correct more often. The 20R-8057 holds pressure-response deviation within ±1.2% across 400–1,800 bar. That keeps fuel delivery stable even when rail pressure fluctuates by ±50 bar.

🔬 Pressure-Balanced Control Valve and Precision Orifice Geometry

Pressure-response linearity starts at the control valve. The 20R-8057 uses a pressure-balanced spool that keeps opening force proportional to rail pressure. The spool is diamond-like carbon coated to reduce friction. The seat is precision-ground to Ra 0.02 µm for consistent sealing. The control chamber inlet orifice is laser-drilled to tight tolerance. That keeps filling rate proportional to pressure. The discharge orifice is also matched to the inlet to keep pressure decay predictable. In a 1-million-cycle endurance test, pressure-response deviation remained within ±1.5%, while a standard reman unit drifted beyond ±6%. The injector also uses a matched return spring to keep closing force consistent. Spring preload loss after 10,000 hours is 1.4%, compared with 6.5% for a standard spring.



🧪 Installation, Diagnostics, and Common Rail Contrast

After installing a 20R-8057, verify solenoid winding resistance near 1.0–1.2 Ω. Check return flow and compare across the cylinder set. High return flow can indicate control-valve leakage or nozzle seat erosion. Low return flow may indicate internal blockage. Common rail injectors require trim code programming. Without coding, pilot quantity, balance rates, and ECU adaptation tracking will be incorrect. Always verify coding and cylinder balance after installation.

To diagnose pressure-response linearity, monitor ECU fuel trim during steady load and during load changes. A stable trim indicates linear response. A trim that moves with rail pressure ripple suggests non-linearity. Check individual cylinder exhaust temperature. A spread above 25°C suggests one or more injectors have drifted. On a bench, measure delivered quantity at 400, 800, 1,200, 1,600, and 1,800 bar over 1,000 cycles. A pressure-response deviation above ±2% indicates control valve or orifice wear. Note: this injector fits CAT common rail systems specifying 20R-8057. Verify fitment by engine serial number and ECM calibration.



❓ FAQ: 20R-8057 CAT Injector and Common Rail Service Questions

Q1: Is the 20R-8057 a common rail injector?
Yes. It is a common rail solenoid injector for CAT diesel engines. Verify fitment by engine serial number and ECM calibration.

Q2: Which engines use the 20R-8057?
It fits CAT common rail engines that specify 20R-8057. Always confirm by engine serial number and original injector code before ordering.

Q3: Why does pressure-response linearity matter for fuel delivery?
Rail pressure always fluctuates. If the injector's response is non-linear, those fluctuations change delivered quantity. The 20R-8057 holds quantity deviation to ±0.8% at ±50 bar ripple.

Q4: Does the 20R-8057 require programming after installation?
Yes. Common rail injectors require trim code programming. Without coding, pilot quantity, balance rates, and ECU adaptation tracking will be incorrect.

Q5: What are the symptoms of poor pressure-response linearity?
Rough idle, unstable torque at steady load, smoke during pressure changes, exhaust temperature spread, and increasing ECU correction demand. Monitoring fuel trim confirms the issue.

Q6: Can I replace one 20R-8057 without replacing the set?
In an emergency, yes. But the new injector will have different pressure-response characteristics from aged ones. That creates cylinder-to-cylinder drift. For best results, replace the full set or bank.
