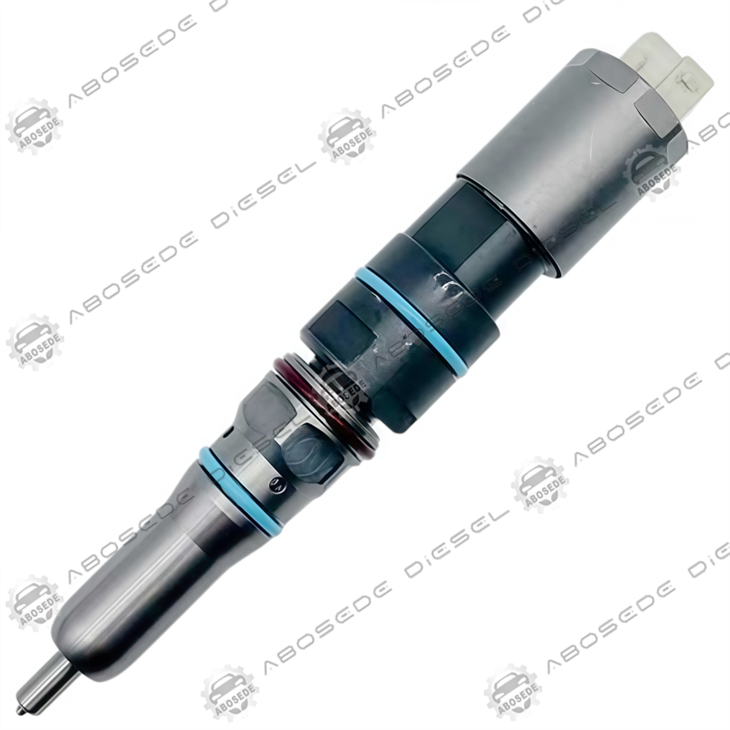

20R-1318 CAT Reman Common Rail Injector – Legacy Platform Compatibility for 3126B/C7/C9 Engines | Direct Core‑Exchange Replacement
1. Product:20R-1318
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Before the Acert branding became synonymous with common‑rail technology, Caterpillar's 3126B and early C7 engines established the platform that would carry the company through the emissions regulations of the 2000s. The 20R‑1318 remanufactured injector is a direct descendant of that legacy-engineered for the first‑generation common‑rail systems that powered a generation of on‑highway trucks, construction equipment, and generator sets. Unlike later Acert injectors that incorporated complex multi‑pulse strategies and high‑pressure sensor feedback, the 20R‑1318 operates on a simpler hydraulic architecture that prioritises durability and serviceability over advanced features. Its remanufacturing protocol focuses on restoring the original Bosch‑derived injector geometry with precision-returning plunger‑barrel clearances, nozzle flow, and solenoid response to the exact specifications that made the 3126B and early C7 engines renowned for their reliability. For fleets still operating these older platforms, the 20R‑1318 offers a dependable, cost‑effective path to maintaining performance without the complexity of adapting later‑generation injectors to older fuel systems.
📊 Technical Data – Legacy Platform Parameters
| Parameter | Specification |
|---|---|
| Part Number | 20R‑1318 (Caterpillar Reman) |
| Technology | Solenoid‑actuated common‑rail (first‑generation Bosch) |
| Maximum Rail Pressure | 1,400 bar (20,300 psi) – system limited |
| Nozzle Type | SAC (Single Axial Cone) with 6 × ø0.17 mm orifices |
| Spray Cone Angle | 144° (±1.5°) |
| Needle Lift | 0.25 mm (nominal) |
| Solenoid Resistance (pull‑in) | 0.9 – 1.1 Ω @ 20°C (new coil) |
| Hold Current | 4.5 – 5.5 A (PWM controlled) |
| Dynamic Flow Rate | 430 – 470 cc/min @ 100 bar test pressure |
| Pulse Width Range | 0.5 – 2.2 ms (narrower than later Acert injectors) |
| Internal Leakage (after reman) | ≤ 4.5 cc/min at idle |
| Connector | 2‑pin Deutsch, gold‑plated (new) |
| ECU Interface | 5‑digit IQA code (older format) |
⚙️ The Simpler Architecture – Why It Still Works Today
The 20R‑1318 is based on a simpler injector design compared to later Acert units, and that simplicity is its strength for legacy applications:
Standardised control valve – Unlike the variable‑geometry control valves used in newer injectors, the 20R‑1318 uses a fixed‑orifice design that is less sensitive to fuel quality variations and easier to remanufacture consistently.
Narrower pulse‑width range – Designed for an ECU that commands injection pulses from 0.5 to 2.2 ms, this injector does not support the extremely short pilot pulses (0.3 ms) used in later multi‑pulse strategies. Attempting to use a newer Acert injector with an older ECU can result in poor idle control; the 20R‑1318 is matched to the older ECU's timing resolution.
5‑digit IQA code – The injector uses the older 5‑digit IQA format, which stores a static flow offset but does not include the multi‑point correction of the 10‑character codes. This is the only code format that the older ECMs (pre‑2006) can interpret. Using a 10‑character injector with an older ECM would result in the ECU ignoring the calibration data, leading to rough running.
Lower rail pressure tolerance – With a maximum of 1,400 bar, the 20R‑1318 is calibrated for the lower pressure systems used in the 3126B and early C7 engines. Installing a 2,000 bar injector on a 1,400 bar system would produce inaccurate metering at high pulse widths, because the flow curve is not linear at the lower end of the new injector's range.
These simpler characteristics are not limitations-they are specific design parameters that ensure the injector works correctly with the older fuel system and engine control software.
